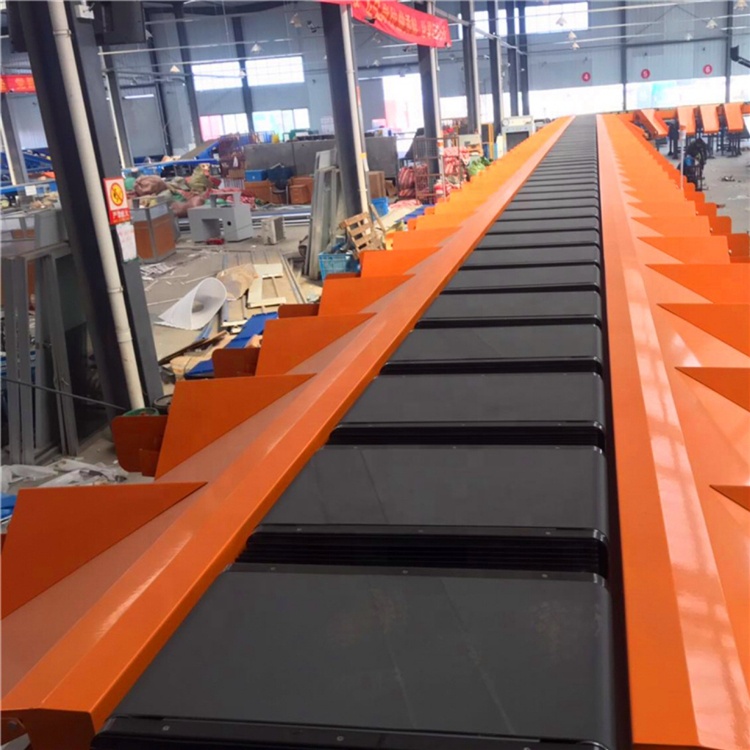

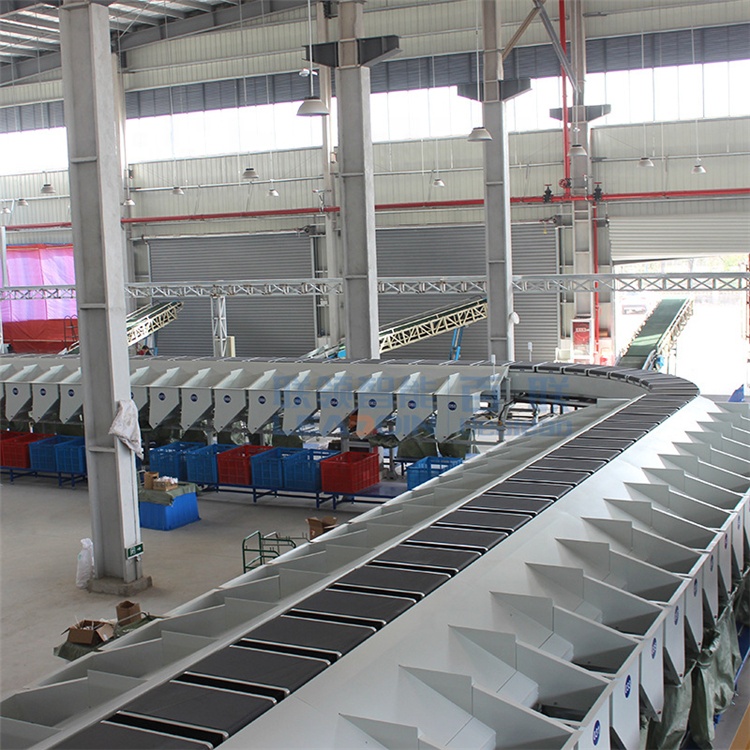

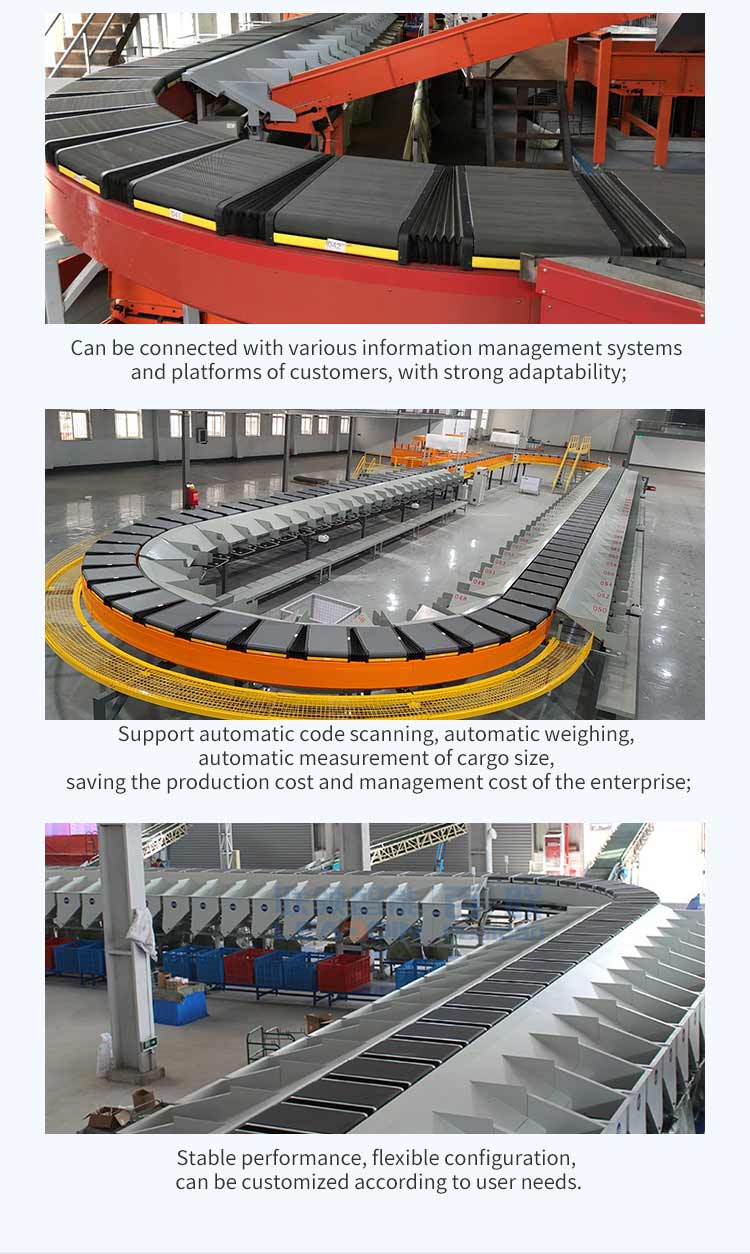

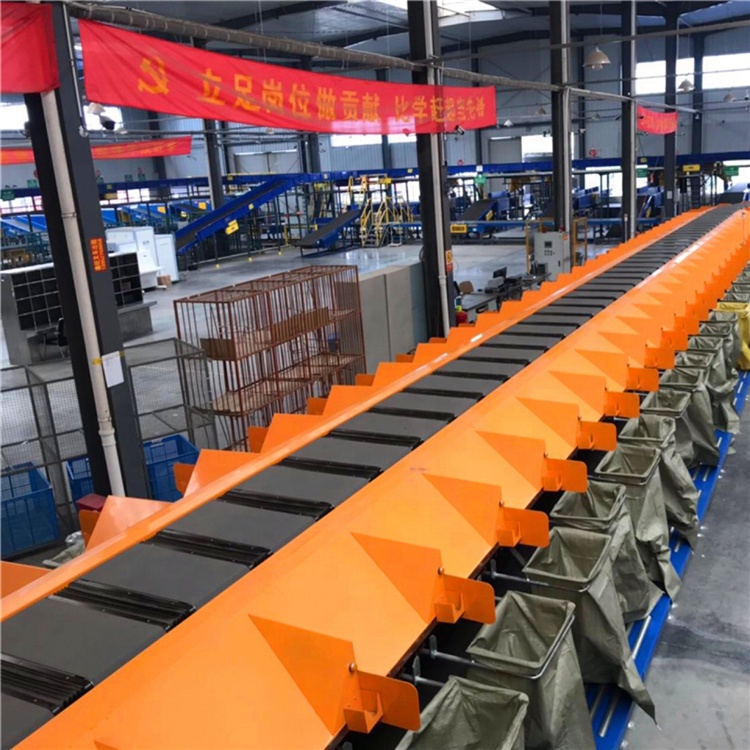

Our Cross belt system is a robust, fault-tolerant solution that offers unrivaled 99.99% accuracy and high sorting capacity regardless of item type. Energy-efficient and easy to maintain, it features gentle handling and total control of parcel position and behavior with no slipping or rolling.

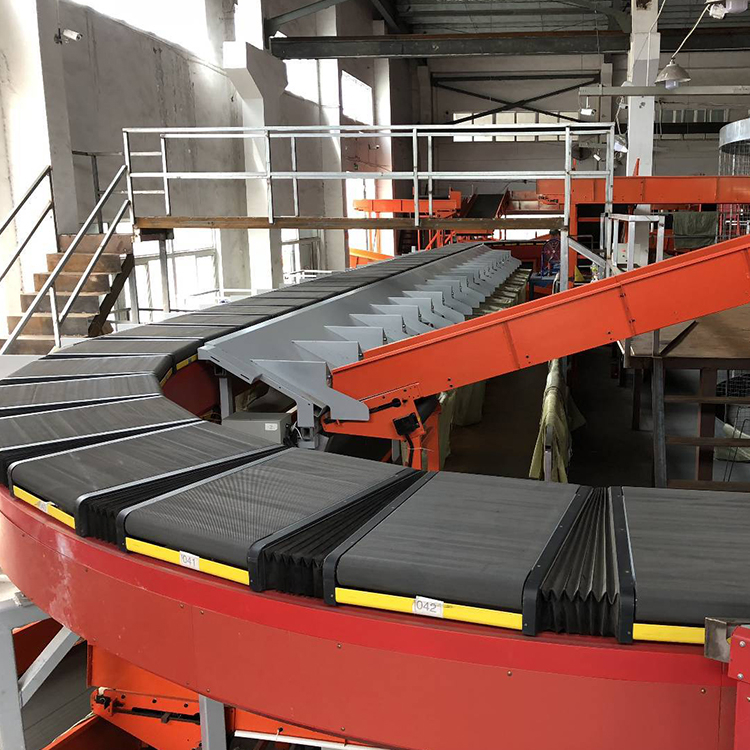

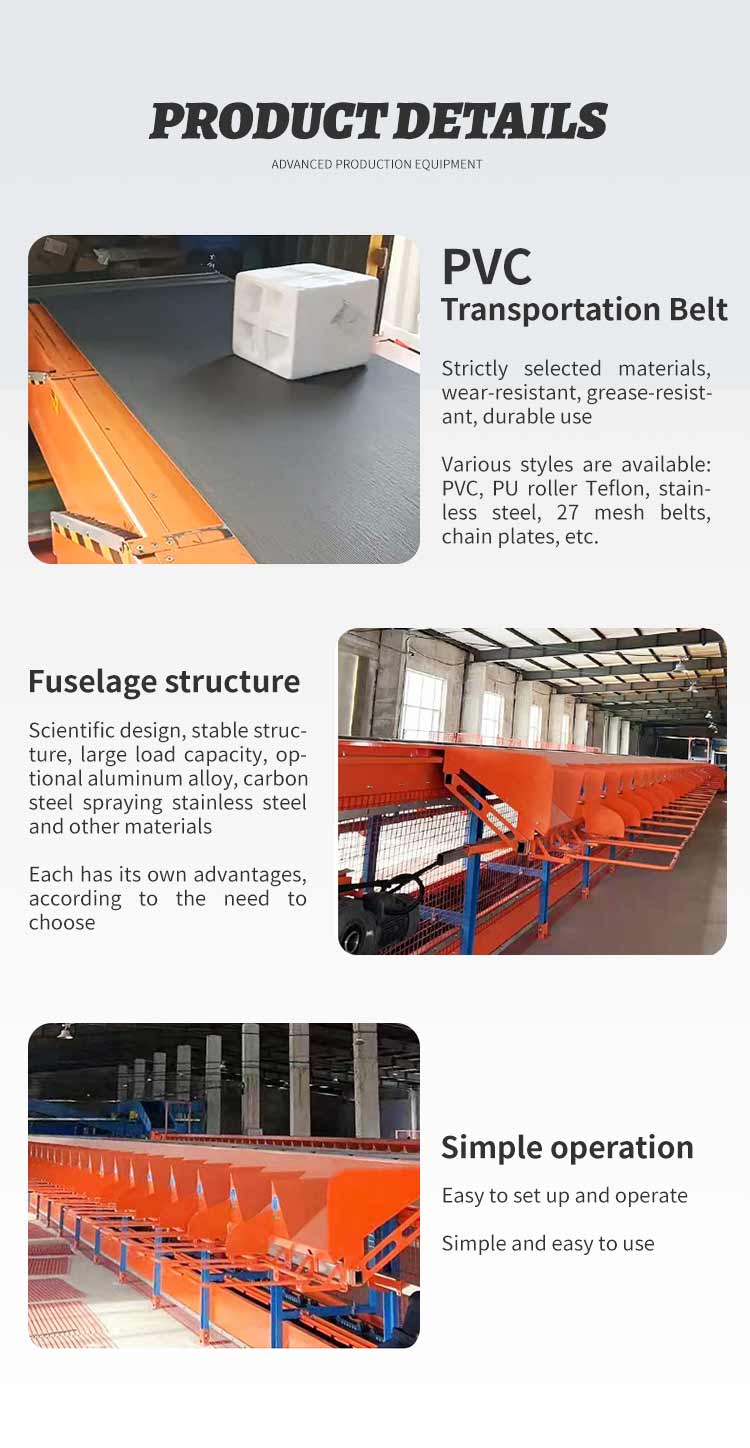

Its modular design means it can be adapted to any facility’s size and dimensional constraints. The continuous train of carrier units equipped with high-friction belt conveyors keeps items in a controlled, perpendicular alignment throughout transportation. The continuous, closed-deck conveying surface provides streamlined parcel transport, even in curves and when ascending or descending. Belt-to-belt flat automatic loading of items ensures high capacity without sacrificing accuracy.
| Product Name | Cross belt sorter |
| Number of Slots | 180 (customizable) |
| Grid Width | 750mm |
| Main Line Speed | 2.0m/s |
| Package Weight Range | 0.1-10kg |
| Package Size (Max) | L400mm*W400mm*H350mm |
| Sorting Capacity | 12000pph (one side), 24000pph (two sides) |
| Sorting Error | ≤0.01% |
| Noise Level | <72BD |
