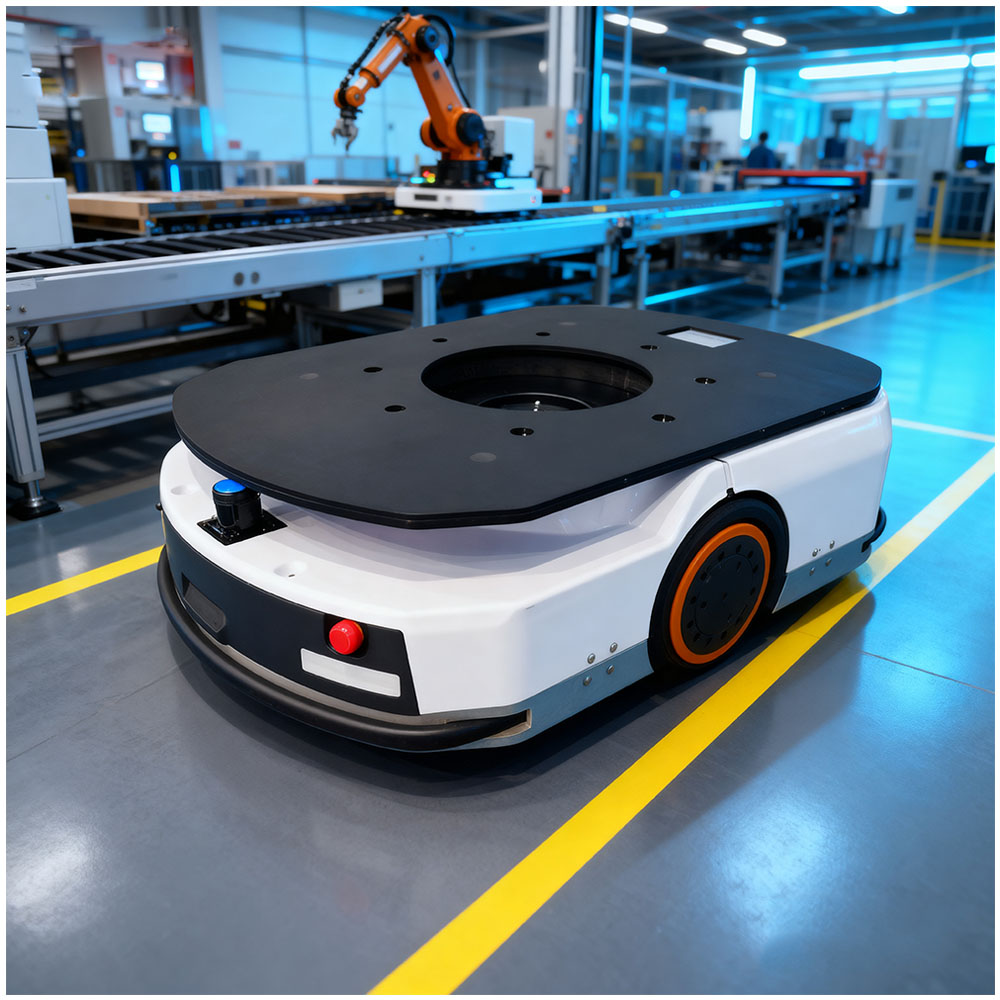

TZBOT Auto Guidance Trackless QR Code Autonomous Mobile Robot Warehouse Unmanned Agv Amr System With Shelf Lifting Mechanism

Product Description

AMR Product Banner

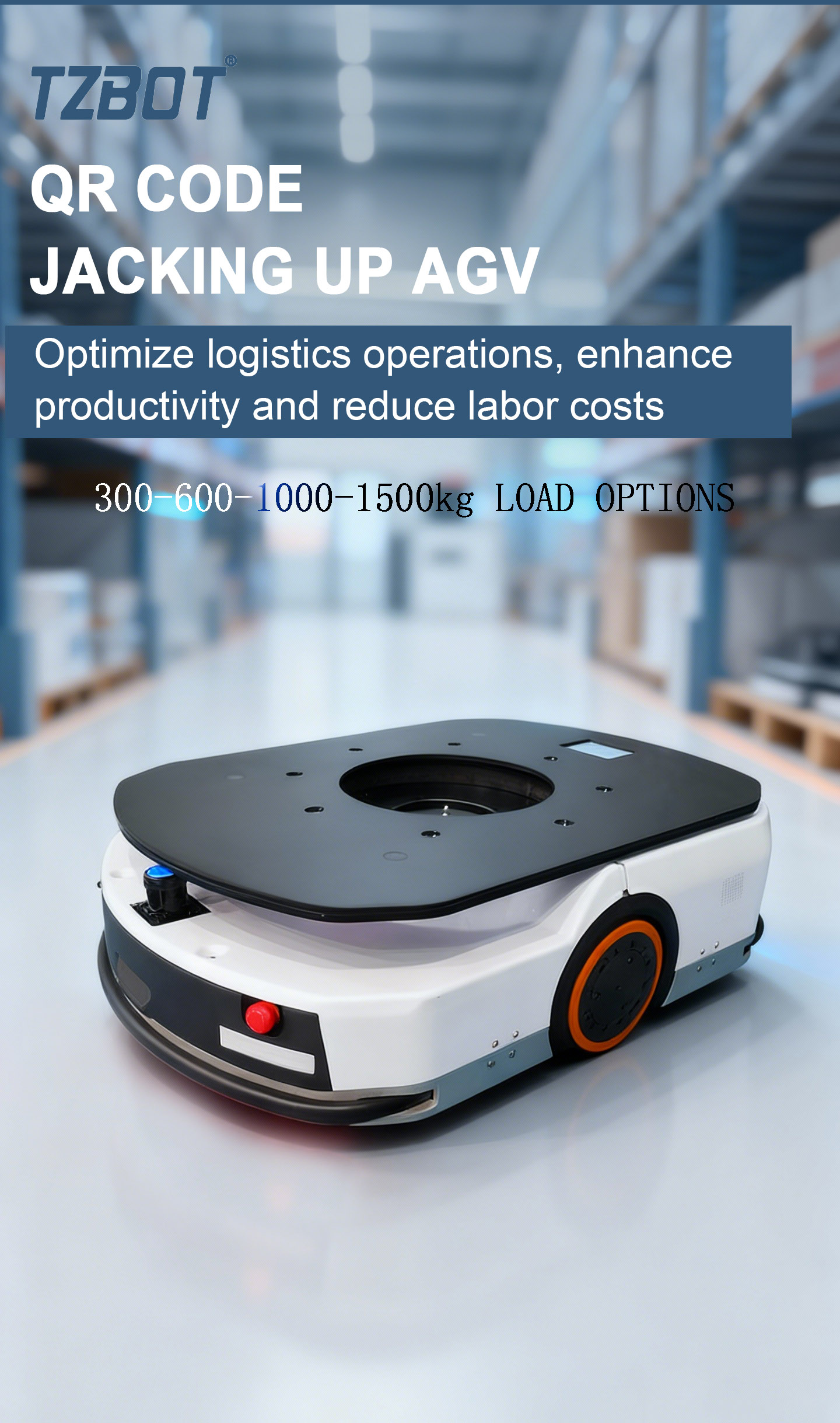

AMR Application

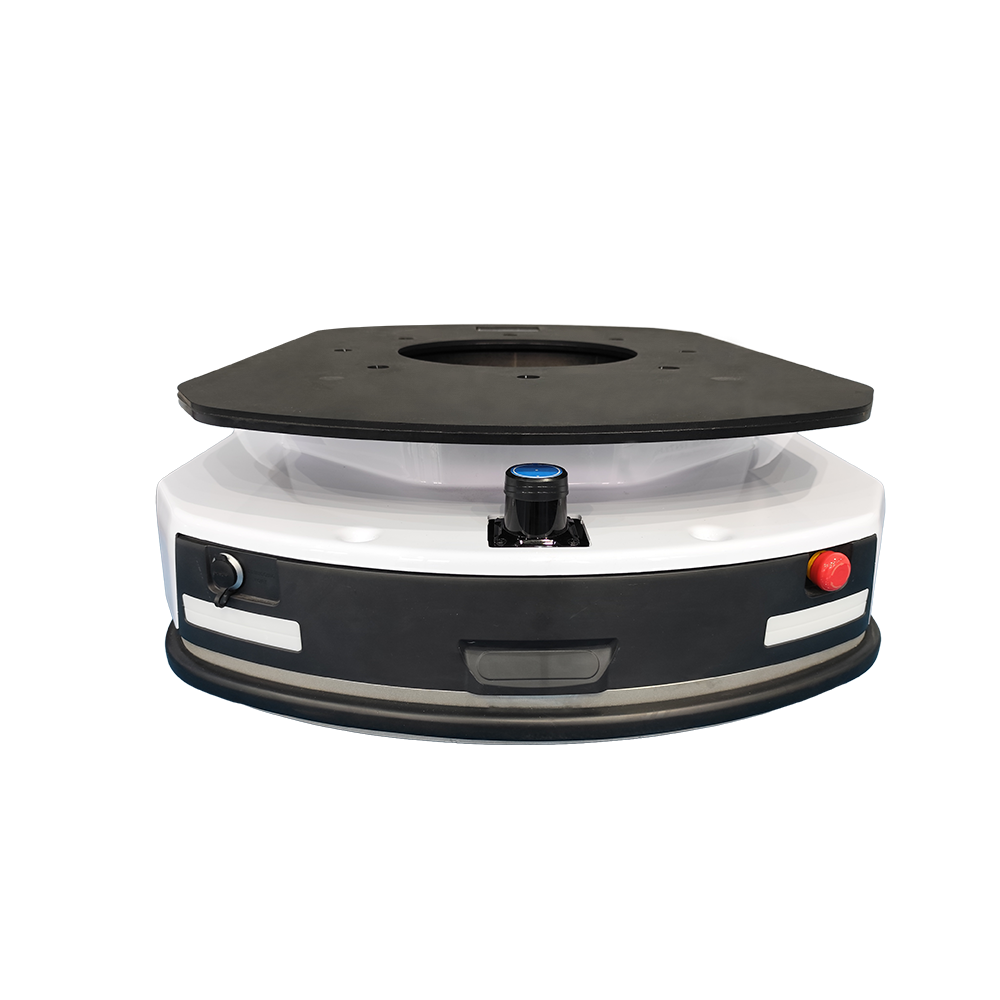

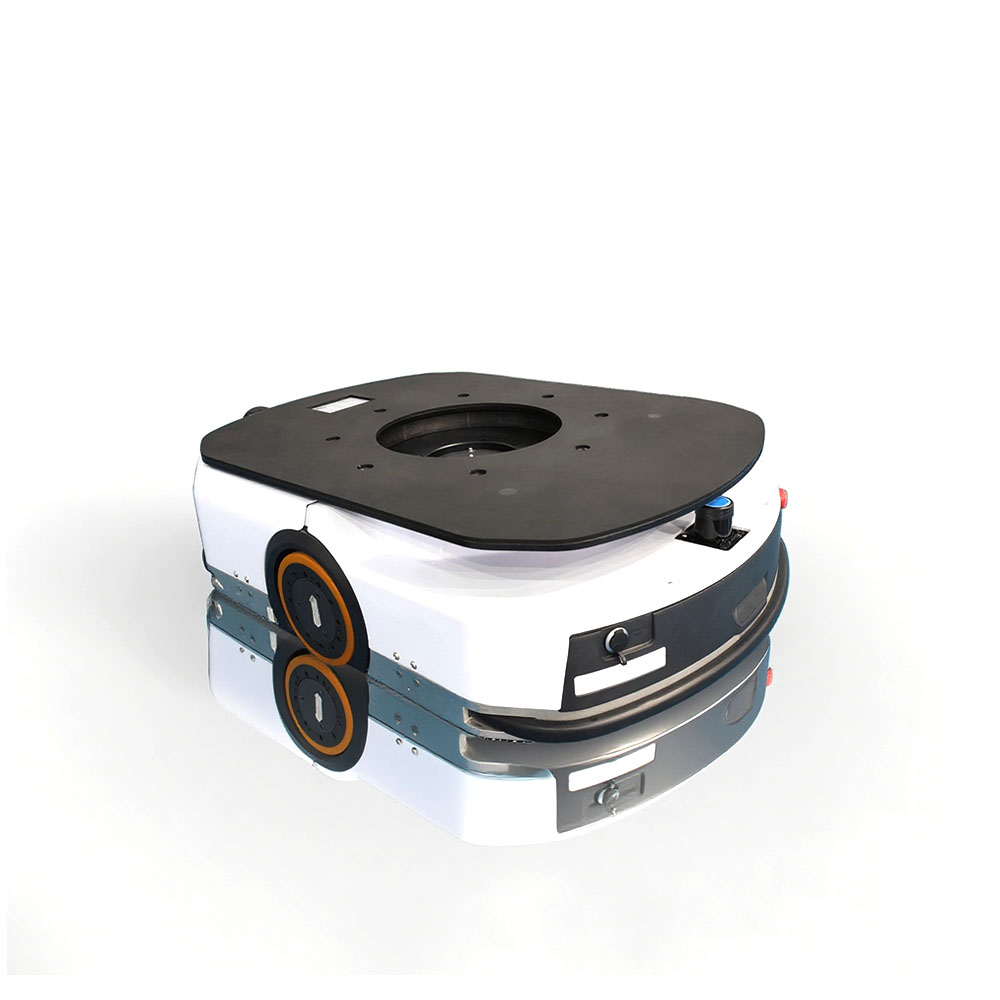

TZAMR-600-E AMR

The AMR uses QR navigation to move forward, backward, and rotate in place. It can go to the bottom of trolly to lift and move the trolly. The AMR has compact structure, which can work in limited spaces. The product has a high degree of flexibility and scalability, and can be customized to the user's needs for customized configuration and function customization, which is suitable for applications in different scenarios, such as industrial automation, logistics and warehousing, hospital pick-up and drop-off, and so on.

Product Information

Item Parameters
Dimensions 950*656*259 mm
Navigation QR code
Lifting Height 60mm
Drive Type Differential drive
Walking Direction Forward and reverse/left and right turn/rotate in place
Maximum Speed 1.5m/s
Rated Load 600kg
Battery Lithium iron phosphate battery
Charging Method Manual/automatic charging
Safety Protection LIDAR + Collision Bumper + Emergency Stop Button
Communication Wireless

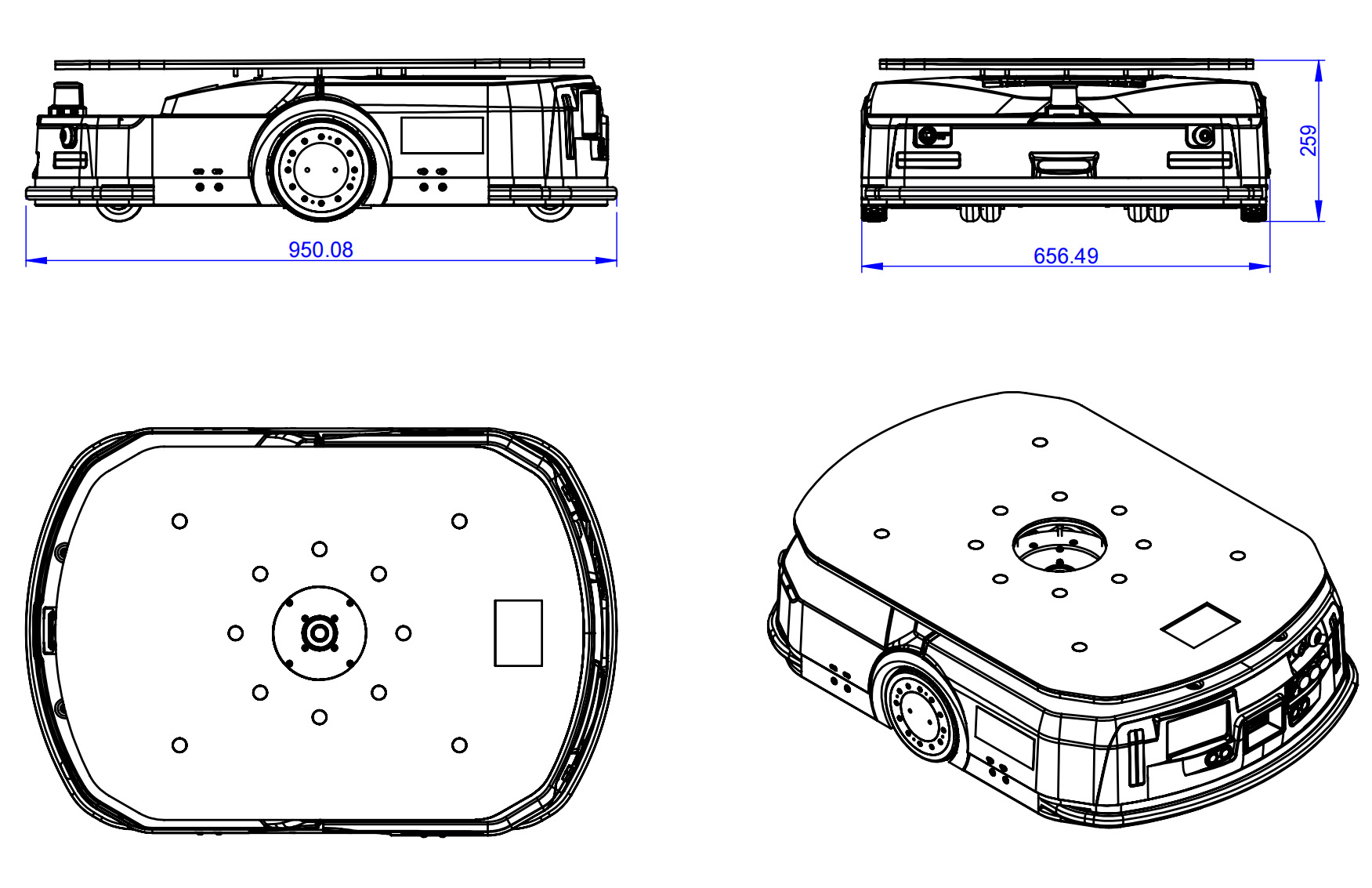

Dimensions

AMR Dimensions Diagram
Divider

Advantages

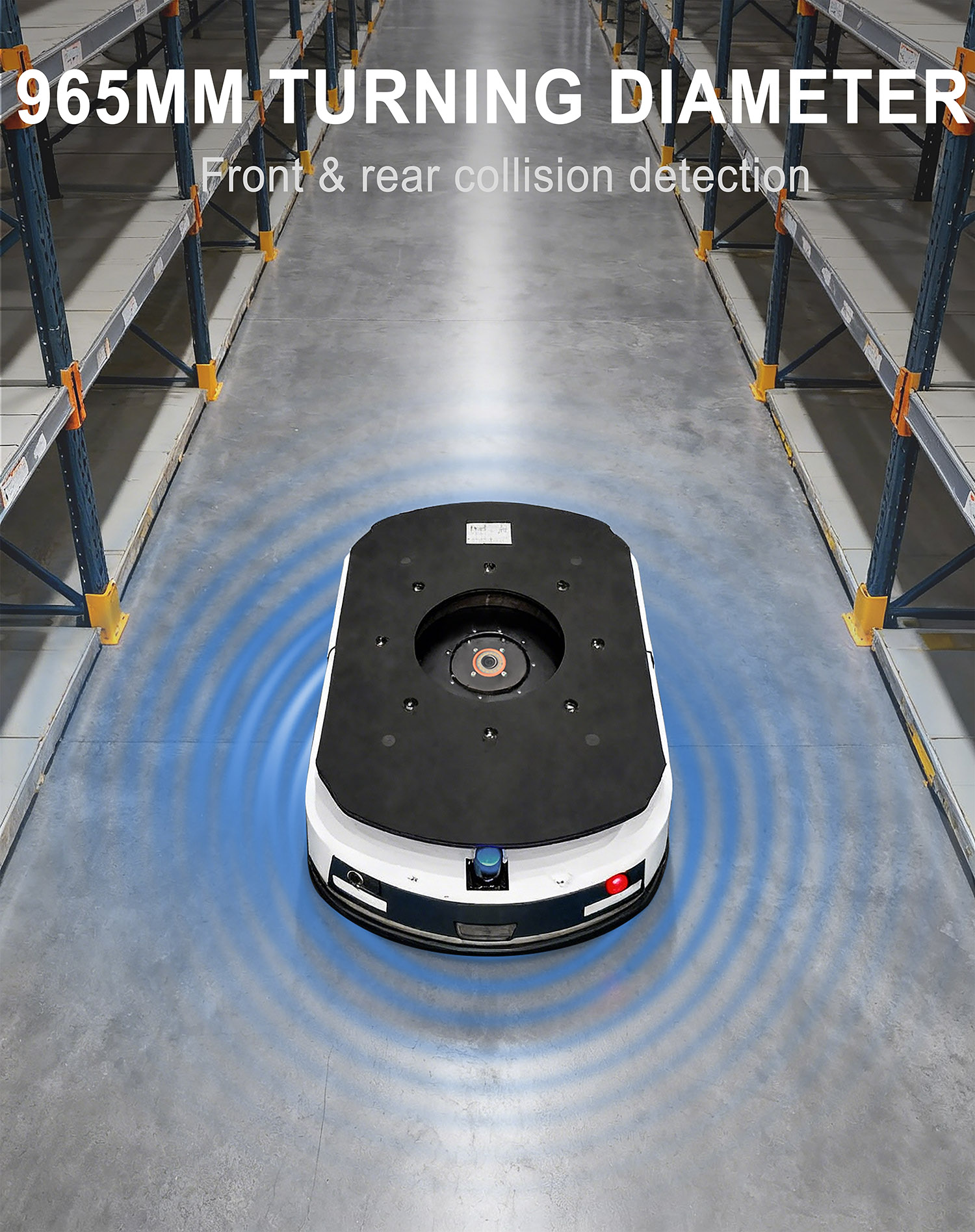

Advantage 1 Advantage 2
Divider

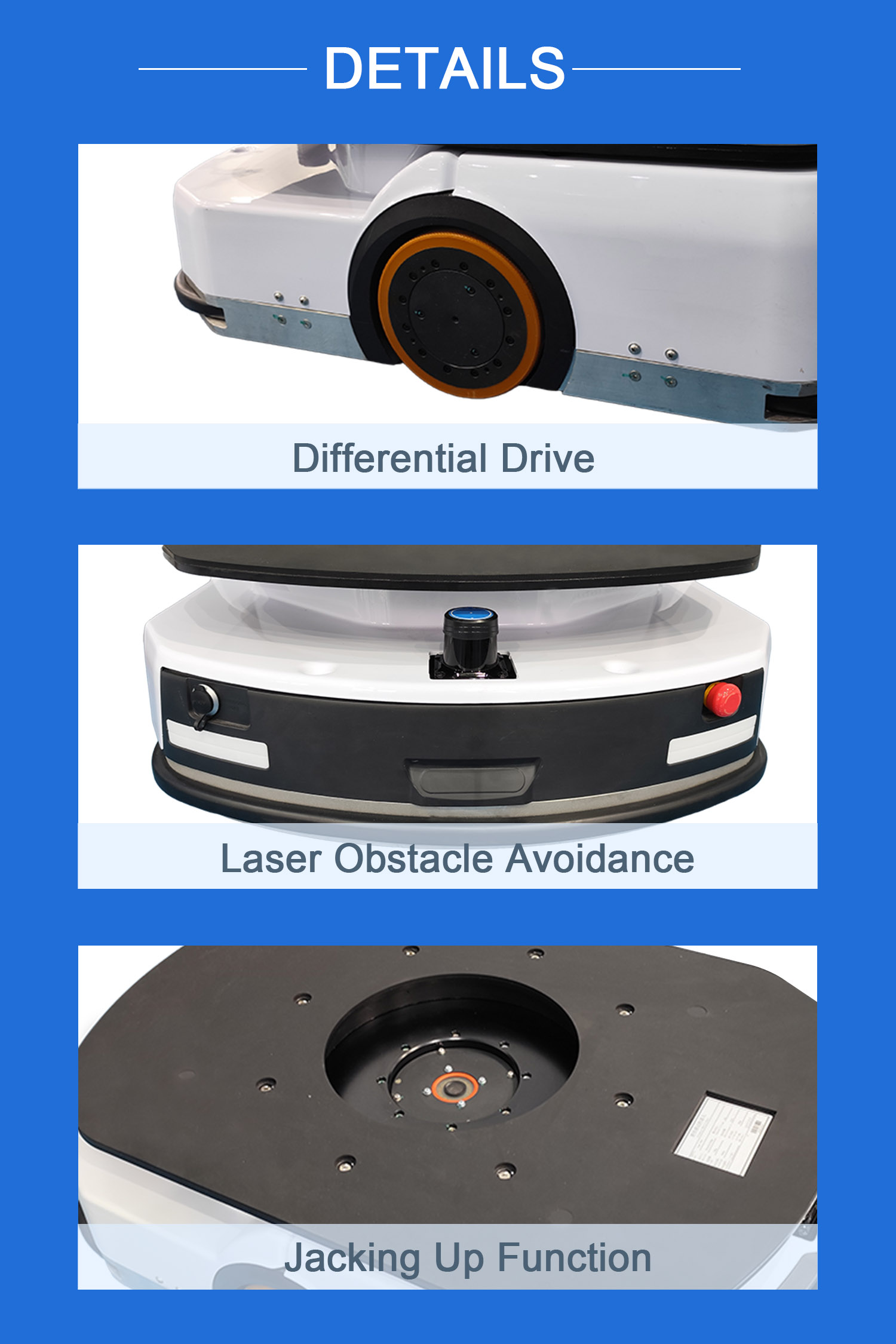

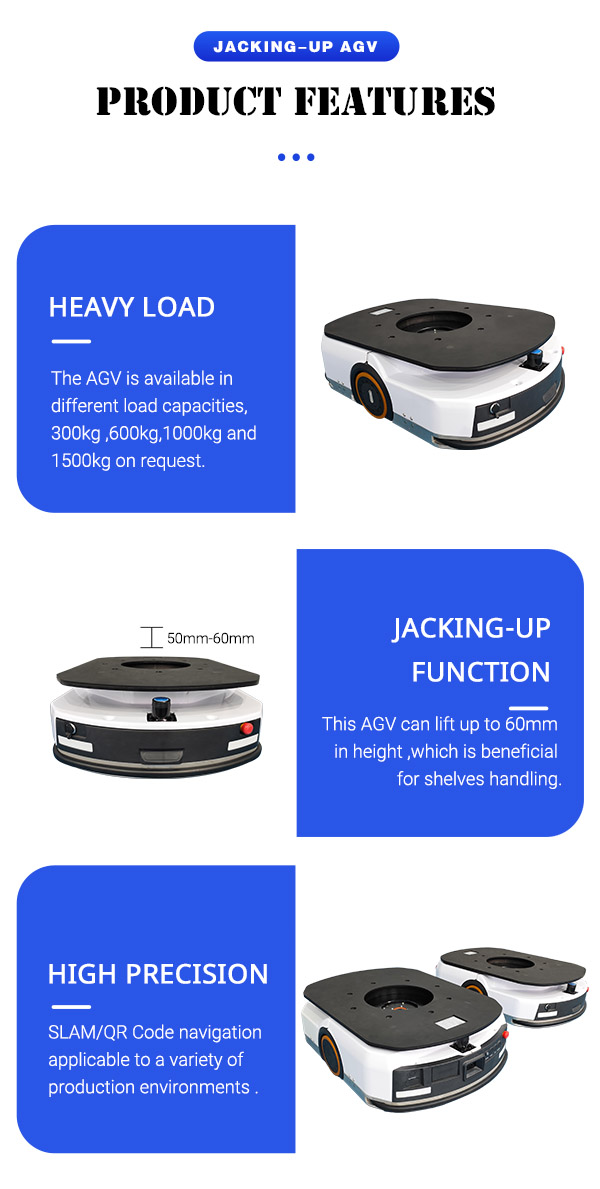

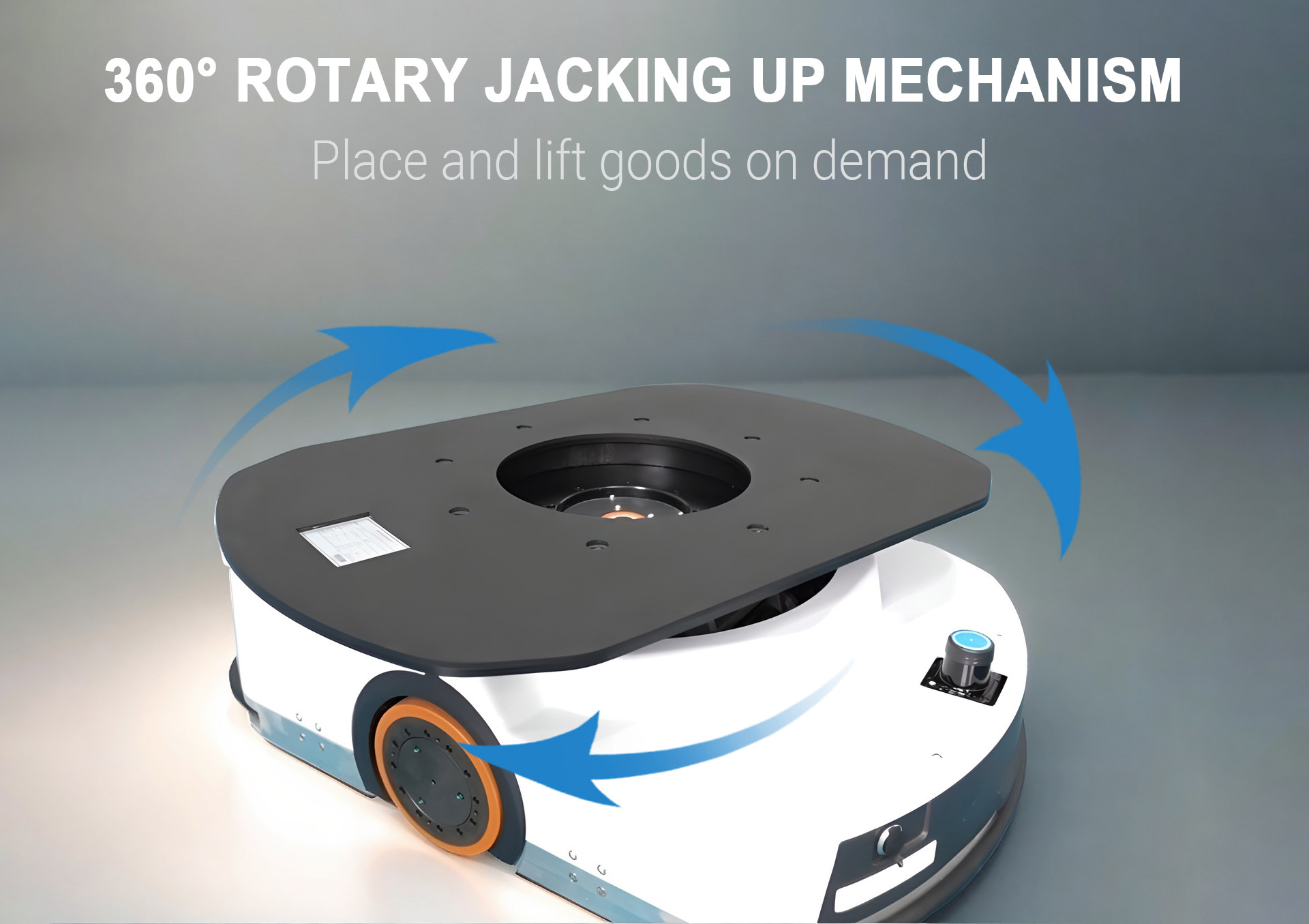

Advantage 3 Advantage 4 Advantage 5

Hot-sale products

Divider

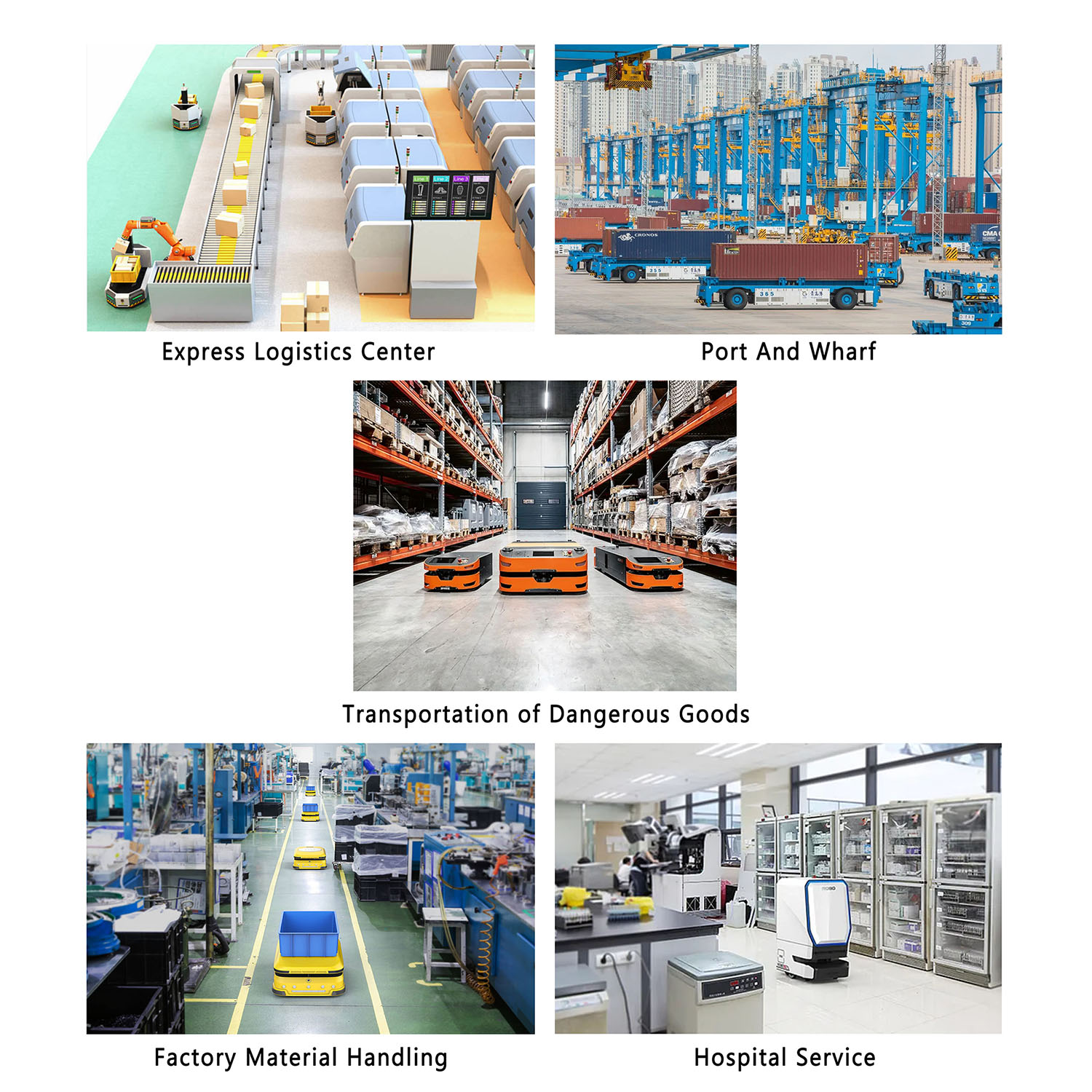

Product Application

Product Application Scenarios

Company introduction

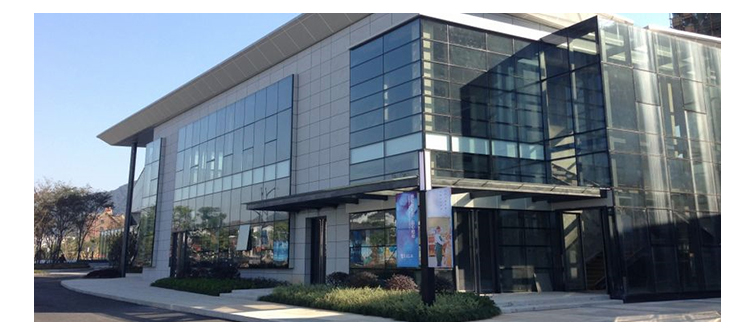

Manufacturing Facility

Founded in 2015, the company designs, manufactures and sells AGV, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, PU wheel, motor in wheel units all over the world. We continue to bring excellent products, technological innovation and ease of customizing to the automated equipment. The core to our growth is the constant dedication to the pursuit of full customer satisfaction. We have a strong presence in domestic and international markets, as well as, great production flexibility. We have come to be recognized as one of the biggest suppliers of electric drive.

Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product. Today, we can quickly design and produce engines and special parts requested by customers. Our products are used in a myriad of applications, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices. All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.

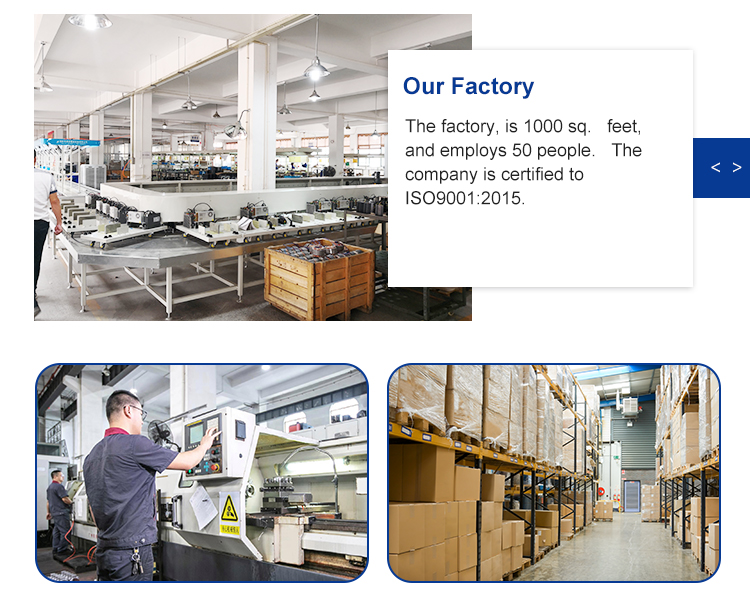

Production Line Quality Control

Packing & Shipping

Packaging and Shipping Details

Frequently Asked Questions

Q1 What payment methods do you accept?
Our payment terms include T/T, Paypal, West Union, Trade Assurance (Alipay or E-checking), L/C, and D/P.
Q2 What is the estimated delivery time?
Delivery time depends on order quantity and stock availability. Standard stock products usually ship within 7 working days. For OEM/ODM orders, the delivery time ranges from 15 to 40 days.
Q3 How long does transport and shipment take?
While there is currently no fixed guarantee on shipping transit times due to varying logistics factors, we continuously monitor shipments and provide updates throughout the process.
Q4 What kind of after-sales service do you provide?
We have a dedicated team of professional engineers to provide technical support. Online technical assistance is available via email, phone, and other communication channels within 24 hours.
Q5 How do you ensure machine quality before shipment?
We configure all machine parameters according to your specific requirements. Prior to delivery, we conduct rigorous stability tests and provide testing videos for your approval.
