| Parameter | Specification Details |
|---|---|

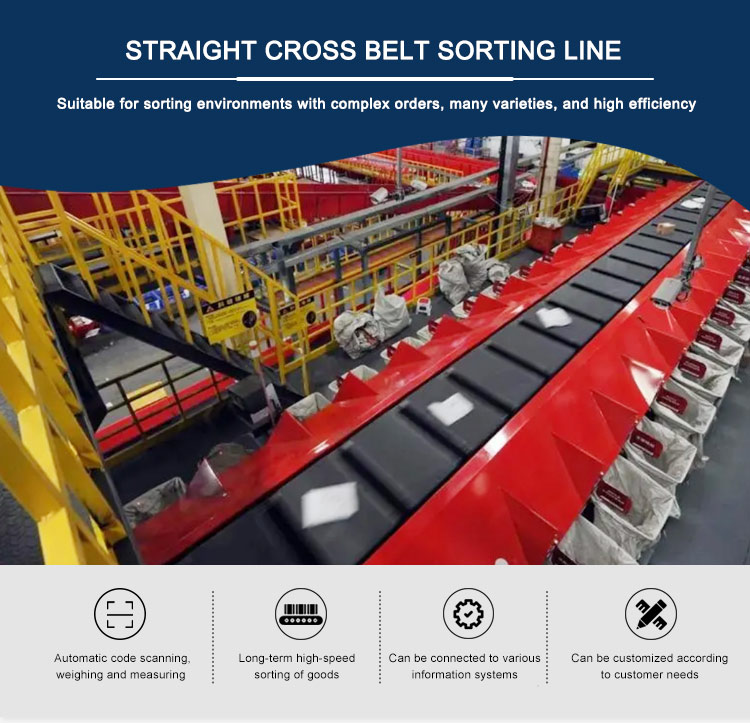

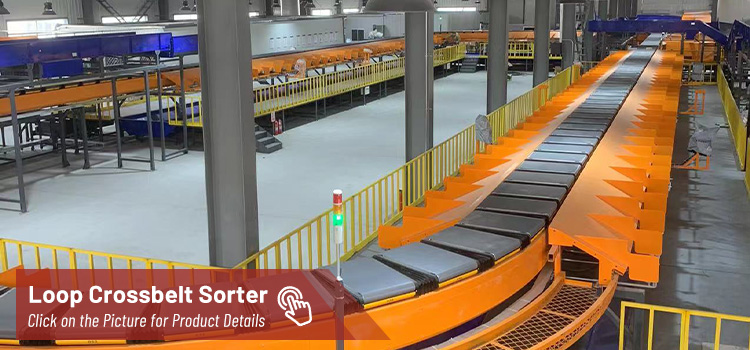

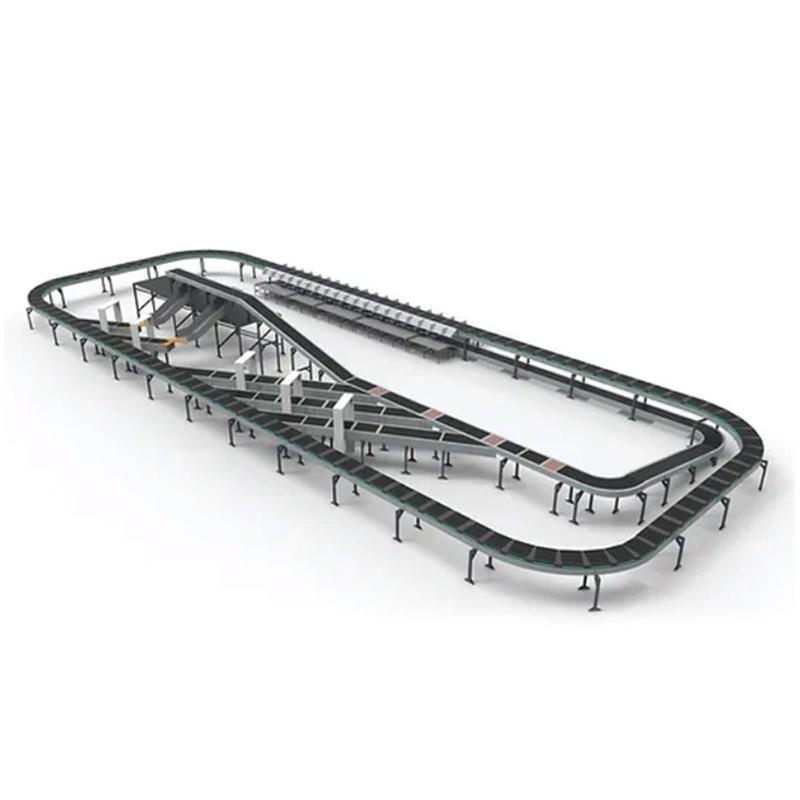

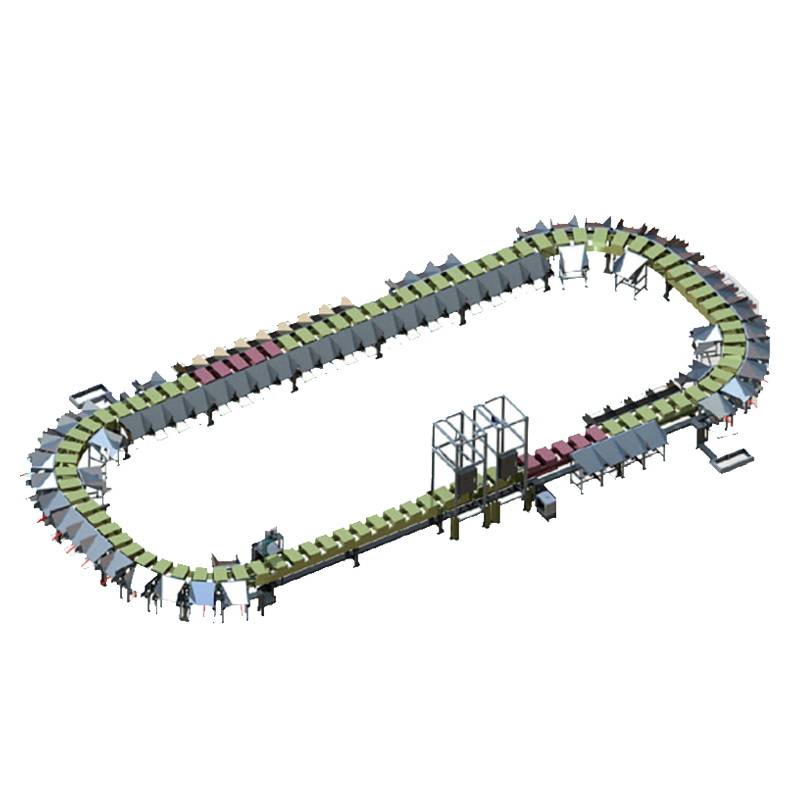

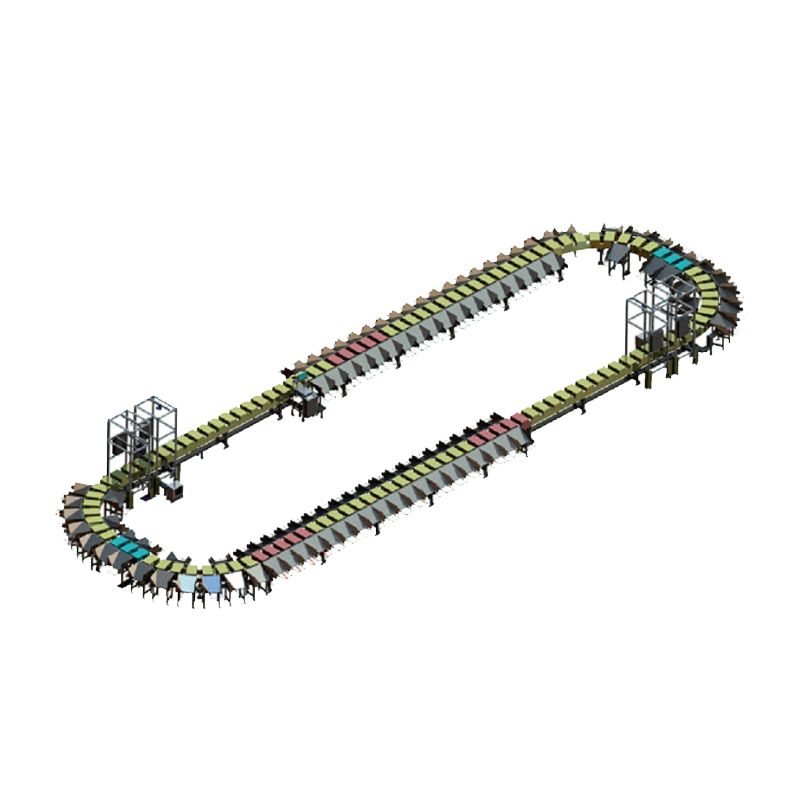

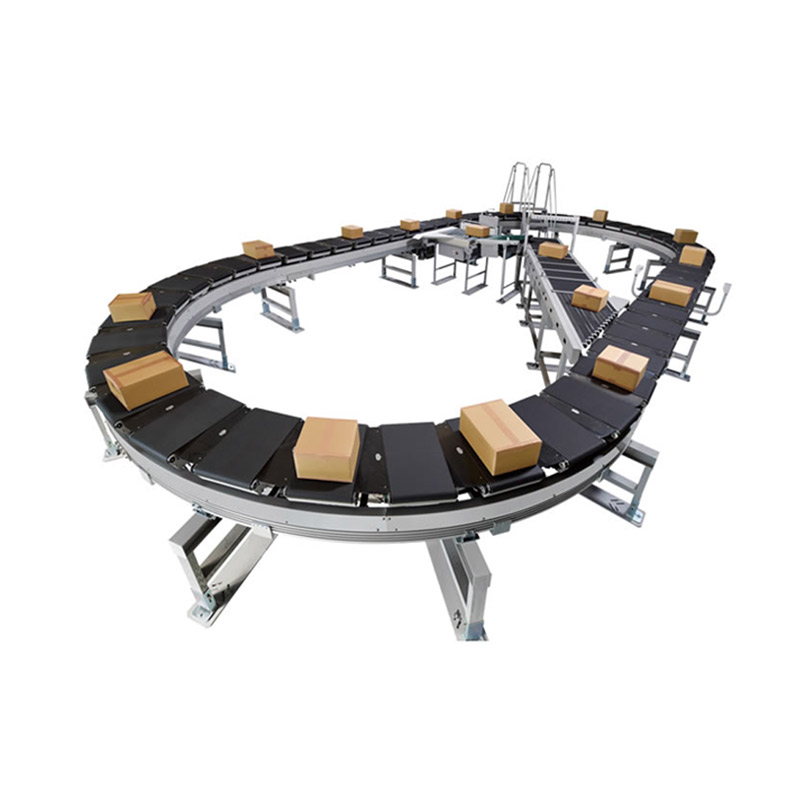

| Product name | Cross belt sorter |
| Number of slots | 180 (can be customized) |
| Grid width | 750mm |
| Grid type | Landslide (customizable chute) |
| Number of cars | Customized according to needs |
| Car size | 428*700mm |
| Main line speed | 2.0m/s |
| Supply table speed | 21600 single/hour (12 people in two zones for package) |
| Line height | 1.9m (can be customized) |
| Package weight range | 0.1-10kg |
| Package size (Minimum) | L100mm*W100mm*H10mm |
| Package size (Maximum) | L400mm*W400mm*H350mm |
| Sorting time limit | Actual 18000-21000, theoretical 40000 orders/ hours |
| Running speed | 2.5m/s max |
| Sorting capacity | 12000pph for one side, 24000pph for two side |
| Capacity for each induction | >2000pph |
| Carrier size | 500*700mm, 600*700mm, 800*1100mm, customized |
| Load capacity | 0.01-35kg |
| Dimension for package | 100*100*1-600*1000*250mm per the dimension of carriers |
| Sorting error | ≤0.01% |
| Bar-code reading | >99% |
| Noise | <72BD |

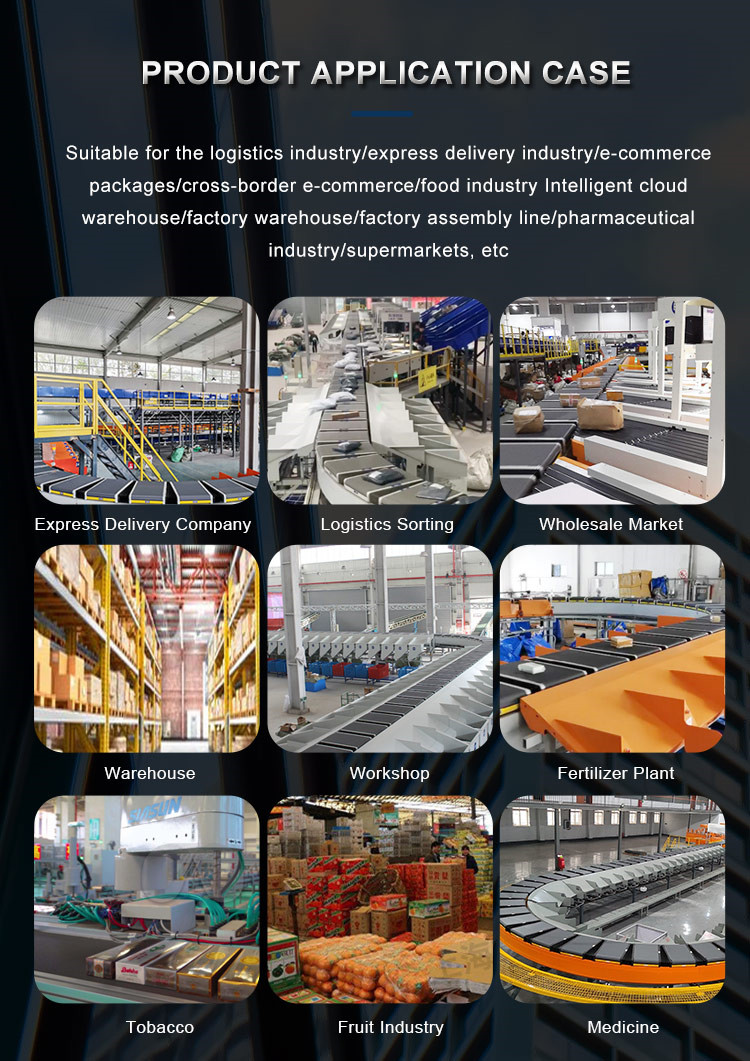

| Package | Envelope, plastic bag, carton, etc. suitable for kinds of package. |
