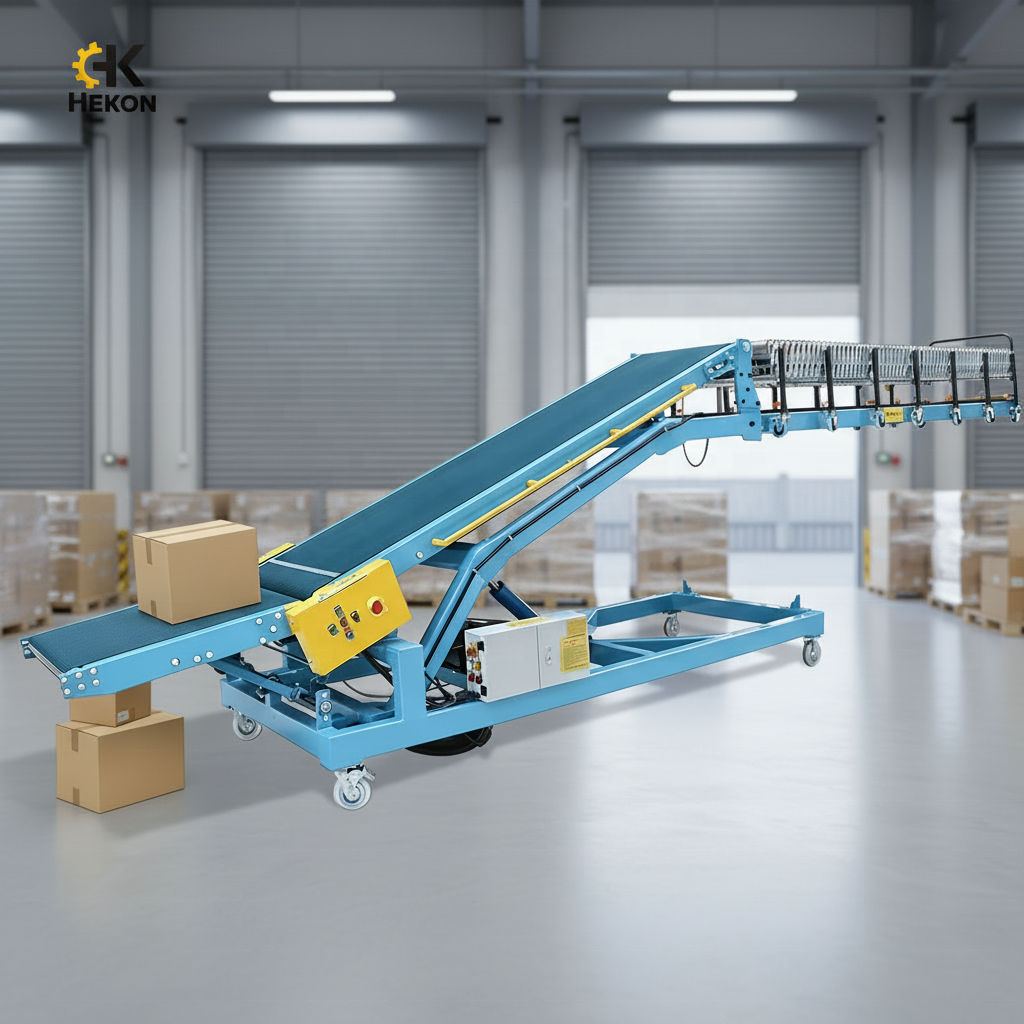

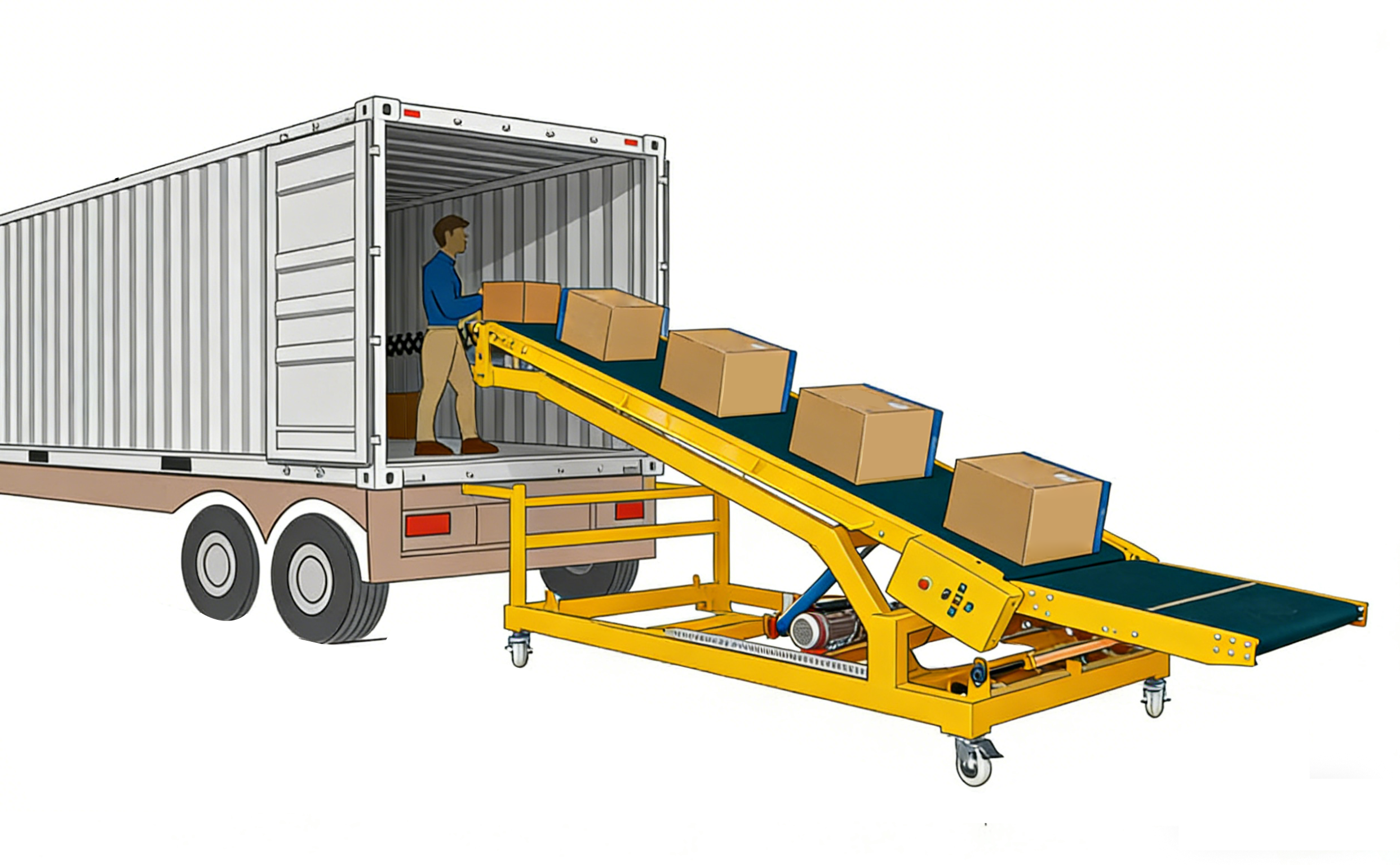

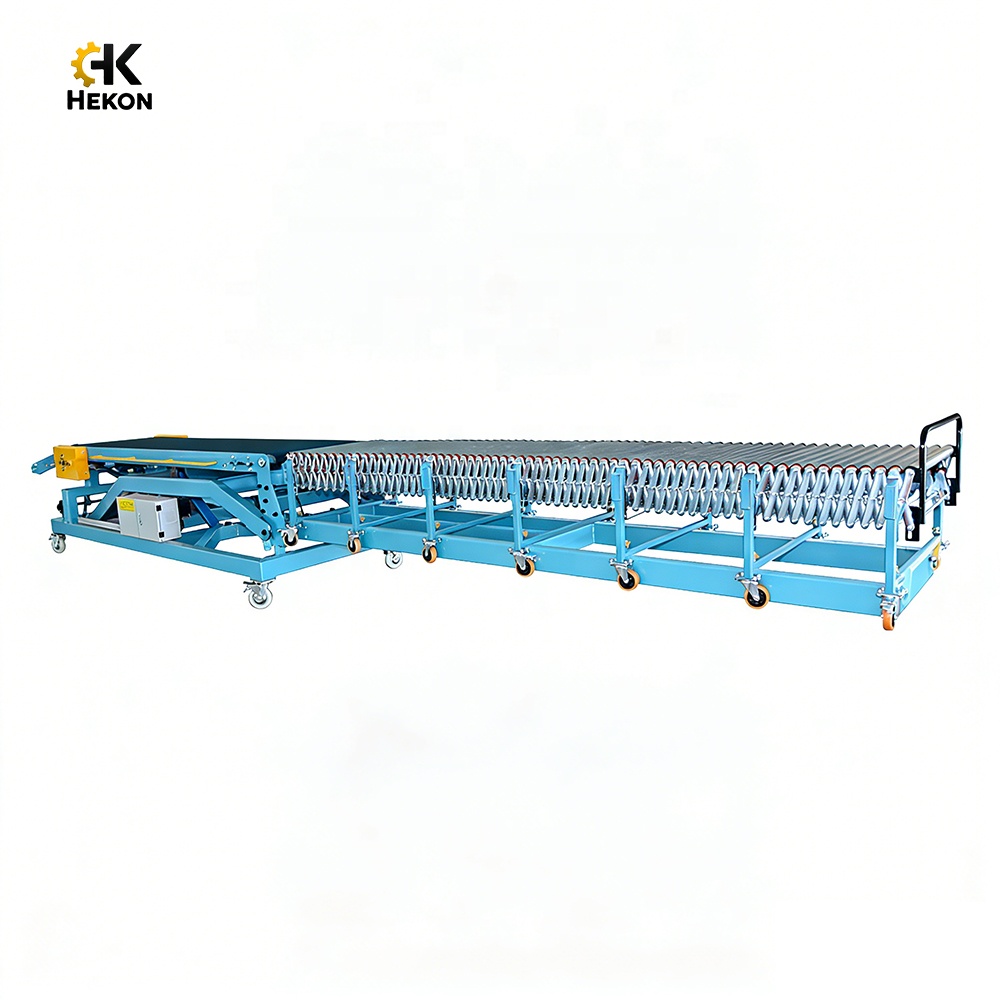

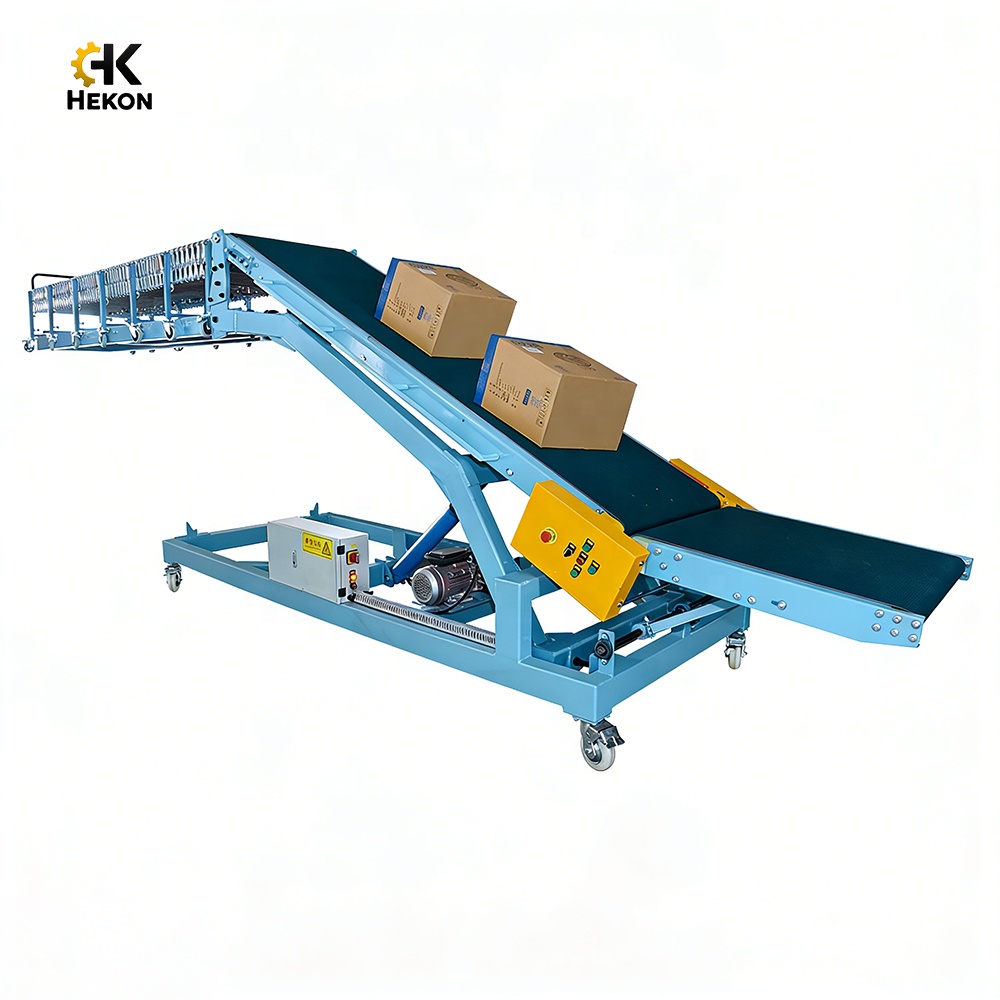

The telescopic belt conveyor is one of the most widely used solutions for container loading and unloading. It significantly improves efficiency by reducing manual labor and shortening operation time. Designed for high flexibility, it is suitable for both 20' and 40' containers and can smoothly extend into the container for direct cargo handling. The length of the end conveyor section can be customized to meet specific site requirements, ensuring optimal adaptability to different loading environments. This system is ideal for logistics centers, warehouses, and distribution hubs where fast, safe, and efficient material handling is essential.

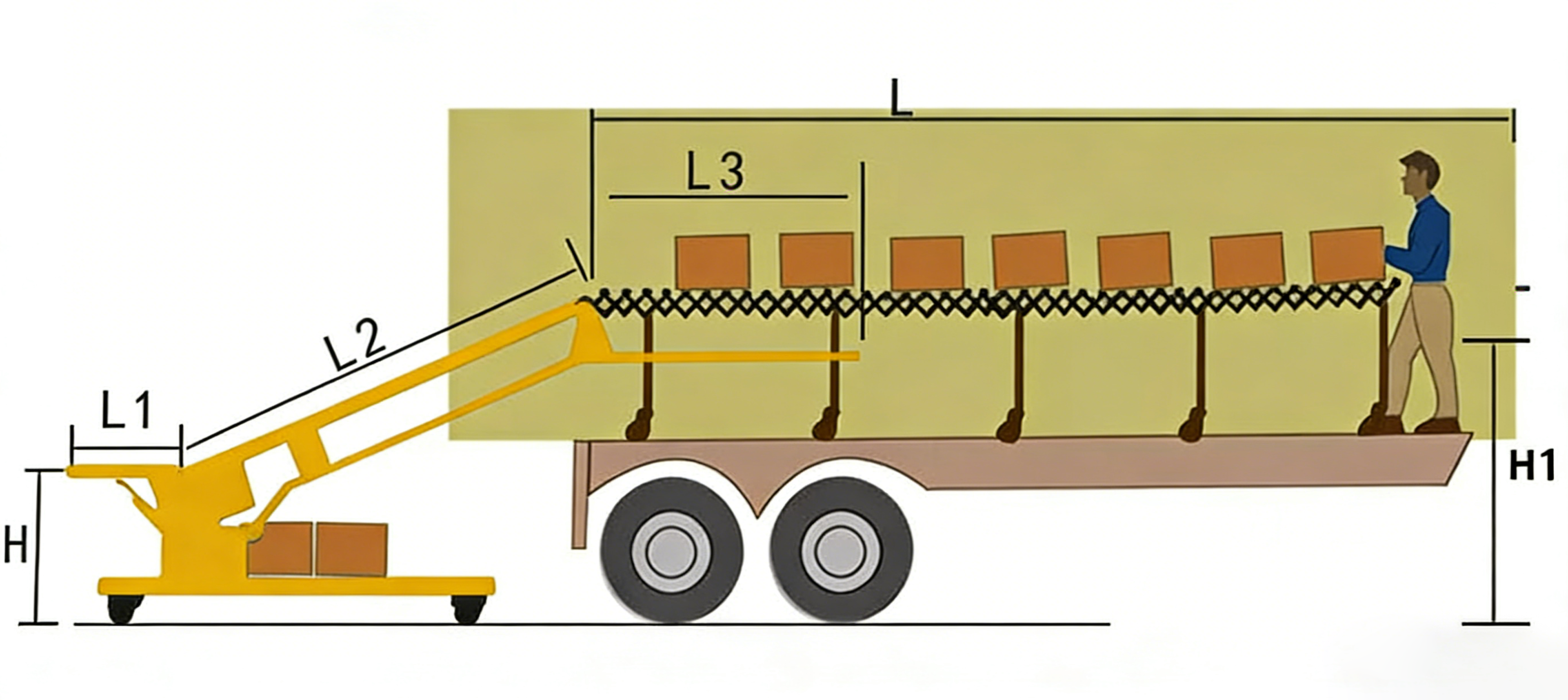

| Type of conveyor | Container handling loading conveyor |
| Width | 700mm |
| Length of tail (L1) | 1000mm |
| Length of climbing section (L2) | 3000mm |
| Unraised height (H) | 800mm |
| Height of front support (H1) | 1700mm |
| Transport direction | Loading and unloading |
| Transmission way | Reduction motor gear |
| Lift way | Oil pump + rod combined lifting frame |
| Power | 380V 1.5KW-3KW |
| Loading weight | 60kg/meter |
| Belt speed | 24m/min(speed adjustable) |
| Machine weight | 1.5T |

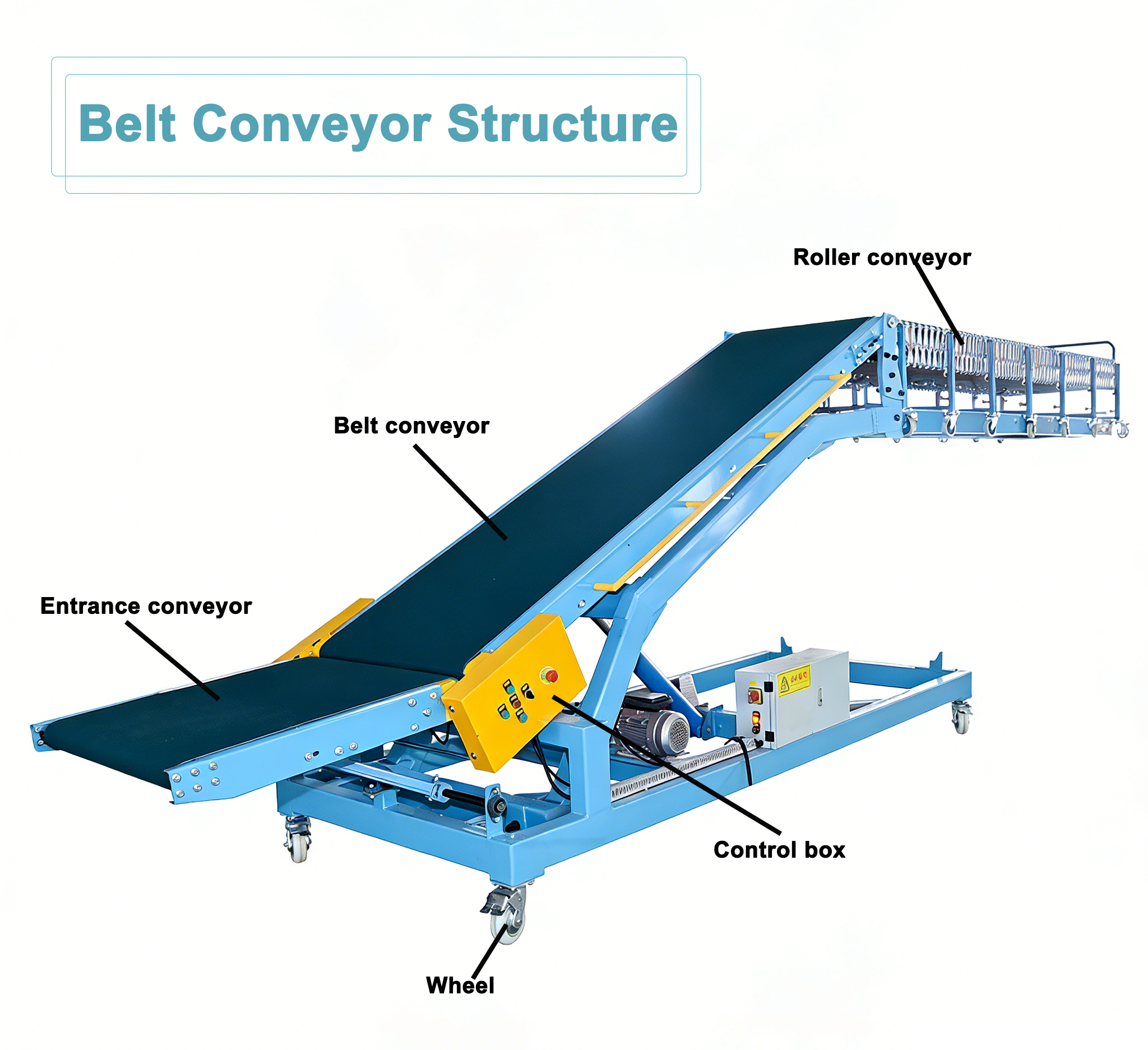

High-friction PVC belt surface effectively prevents items from slipping during conveying, ensuring stable, safe, and efficient material handling.
User-friendly control panel with intuitive button layout, allowing quick operation, precise control, and improved work efficiency.
Ergonomically designed lifting turntable enables smooth height adjustment, making loading and unloading easier, faster, and less labor-intensive.
High-strength hydraulic oil rod provides excellent load-bearing capacity and stable lifting performance, ensuring long service life and reliable operation.
Wear-resistant universal wheels equipped with a reliable braking system ensure smooth movement and secure positioning, preventing unwanted sliding during operation.
Our products have passed the CE certification and ISO9001 quality system certification.
