Warehouse Automated Roller Conveyor Line Logistics Sorting Telescopic Belt Parcel Express Loading Unloading Dock Stainless Steel

Professional Industrial Automation Solutions

A specialized provider of industrial automation solutions, dedicated to enhancing productivity, precision, and efficiency for global clients. We integrate advanced technologies to deliver reliable equipment and intelligent control systems tailored to modern manufacturing and processing needs.

Our core offerings include:

Automation Equipment
Gravimetric Feeders
Quantitative Packaging Machines
Automatic Bagging Machines

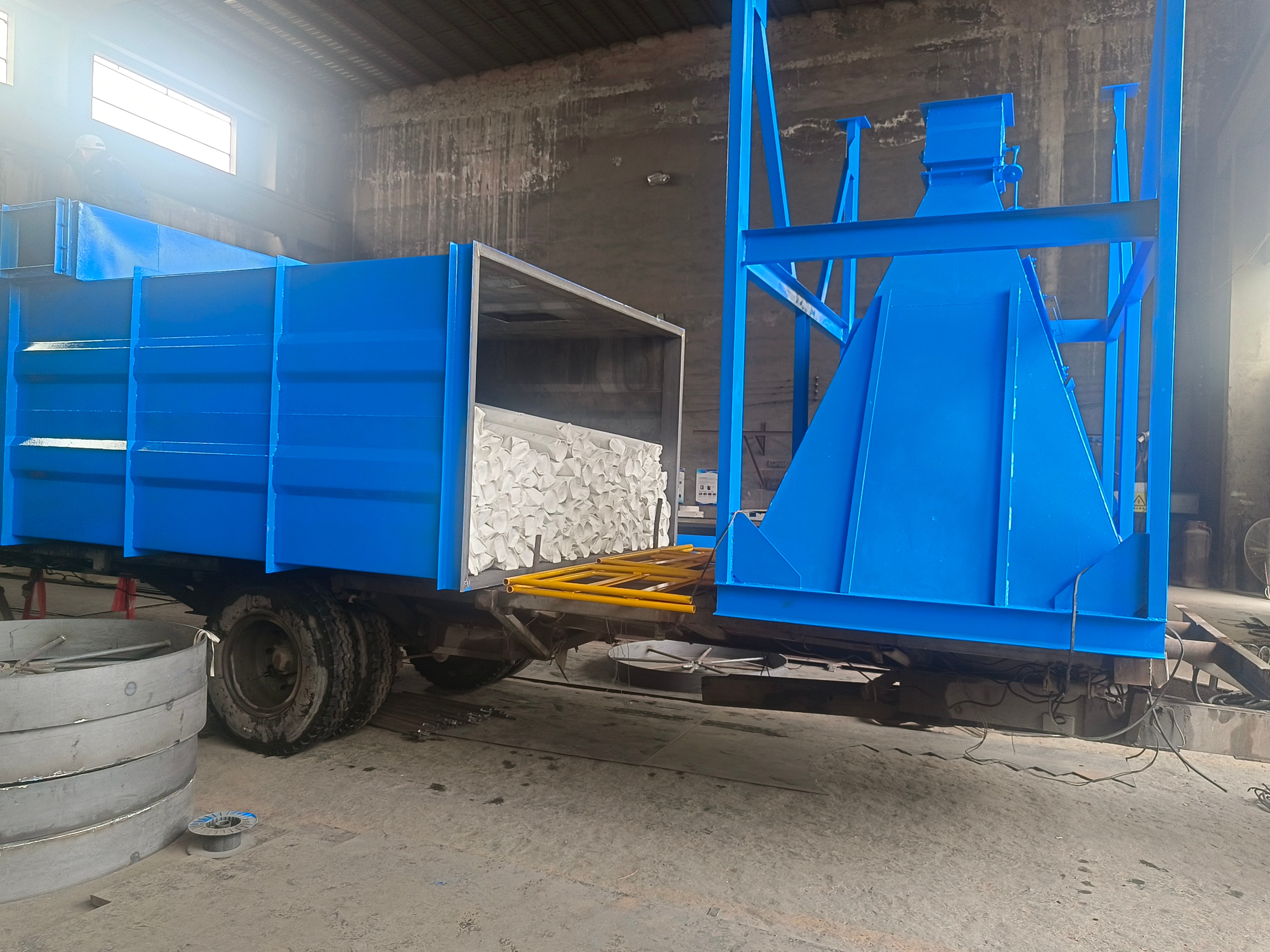

Automatic Truck Loading Systems
Palletizers
Solid Waste Briquetting Lines
Alloy & Refractory Feedstock Lines

Key Conveyor Technologies

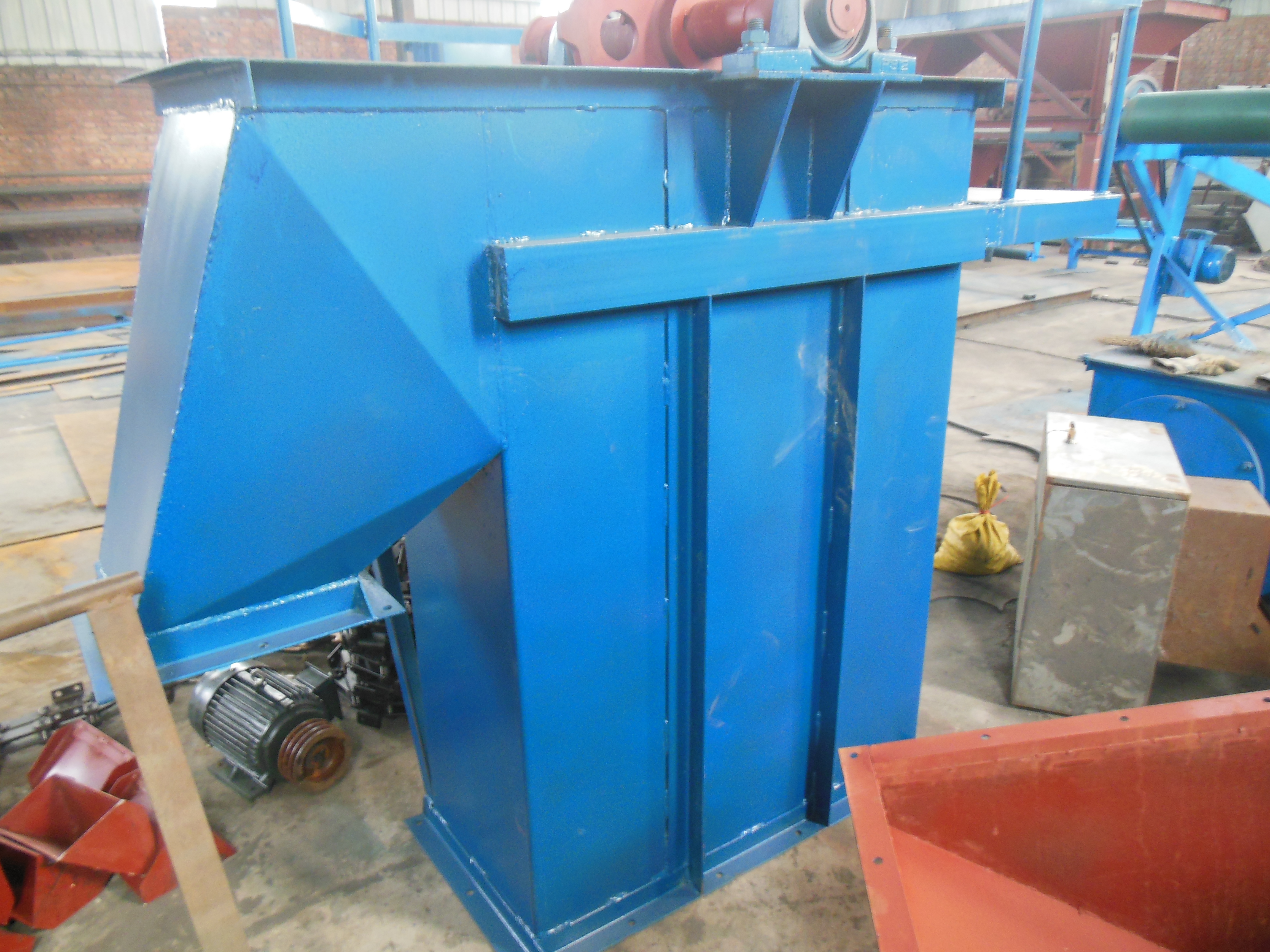

NE Plate Chain Bucket Elevator

Designed for vertical lifting of bulk materials like cement, coal, and grains. Features alloy steel chains, high lift heights (up to 40m), and enclosed operation for dust control.

GL Screw Conveyor

Efficiently moves powders and granules within a sealed tube using a rotating spiral blade. Ideal for dust-free transport in food and chemical industries.

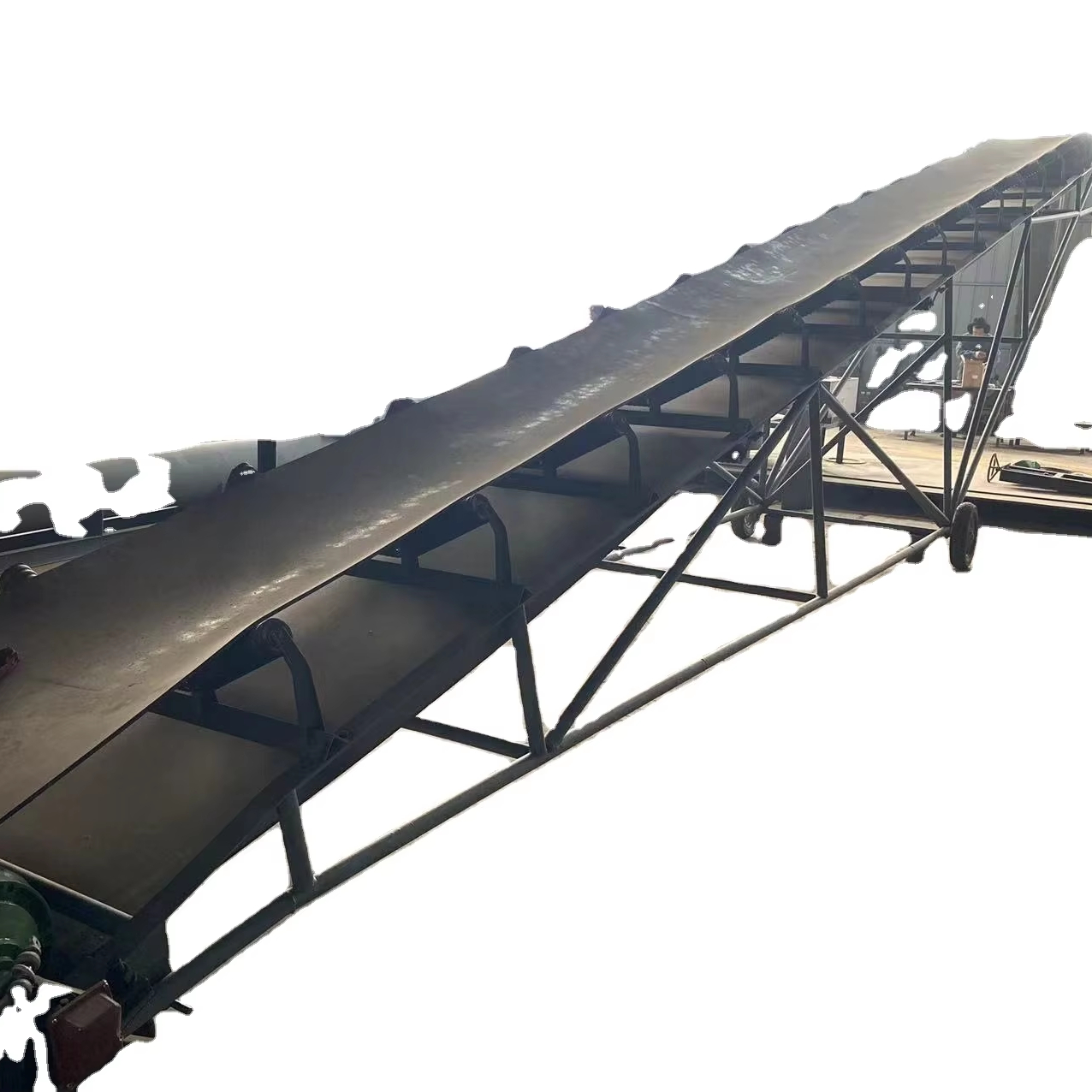

DB Belt Conveyor

A versatile system for handling bulk materials and packaged goods over long distances. Known for high capacity, reliability, and simple structure.

BL Chain Plate Conveyor

Built for heavy-duty applications. Uses metal plates for high impact resistance, suitable for transporting heavy, abrasive, or hot materials.

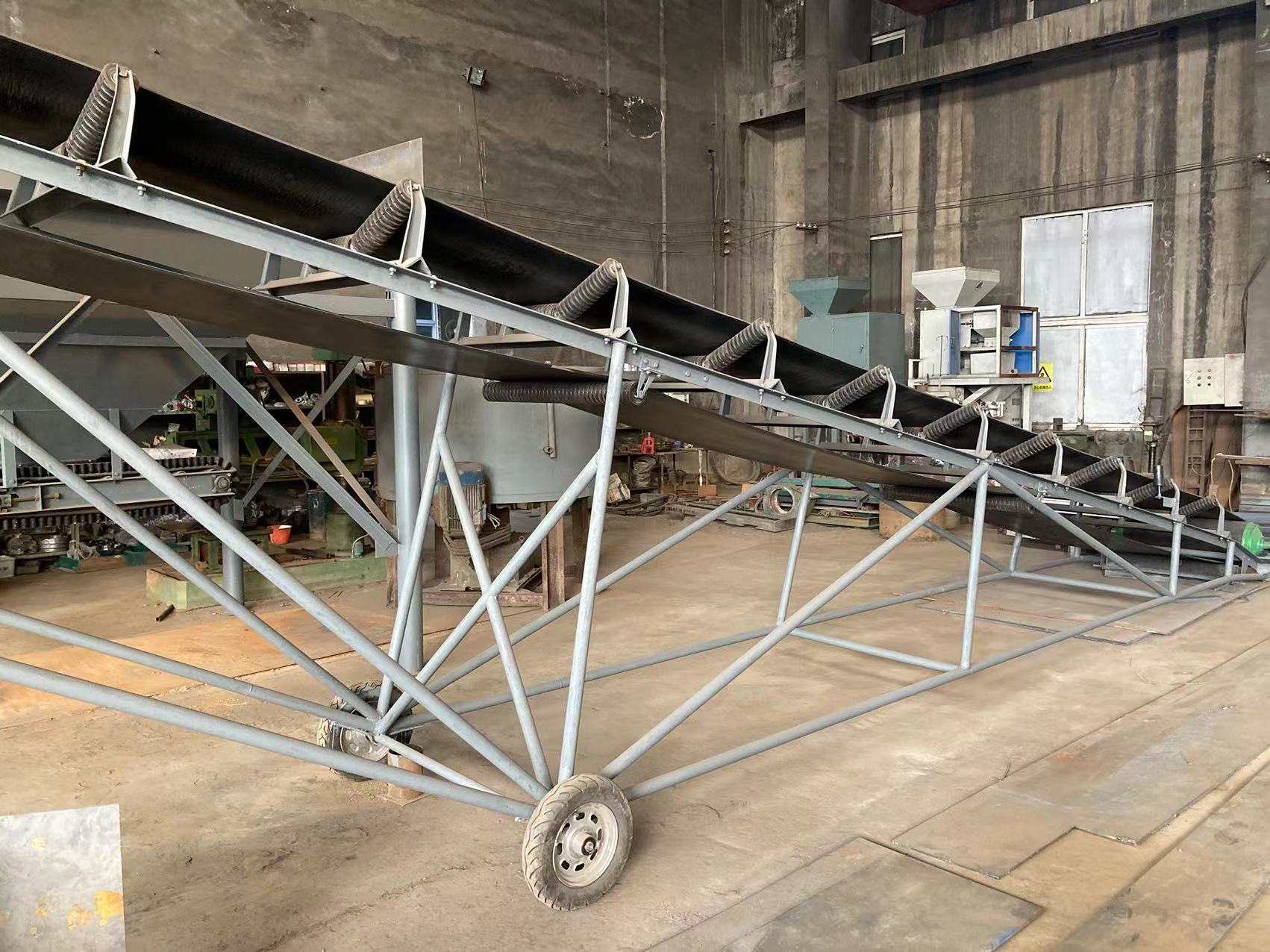

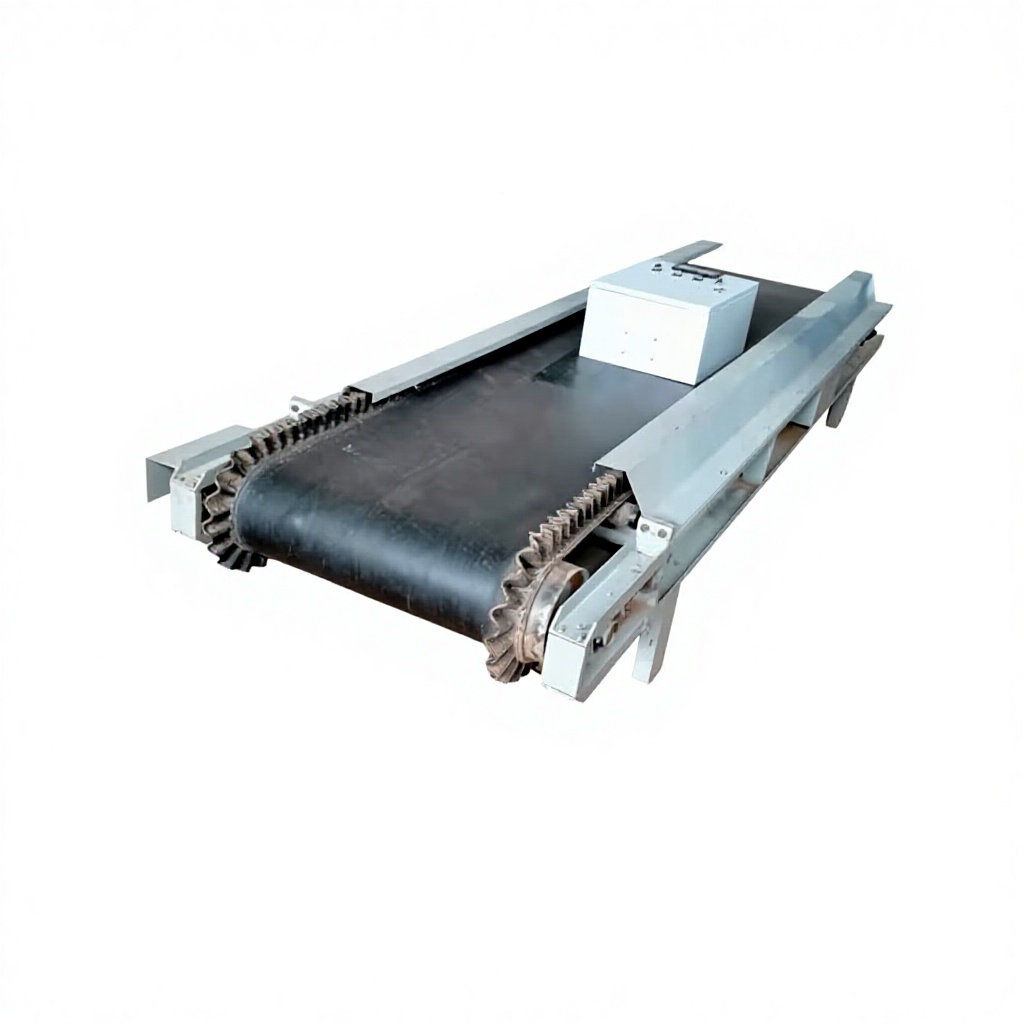

Belt Conveyor System

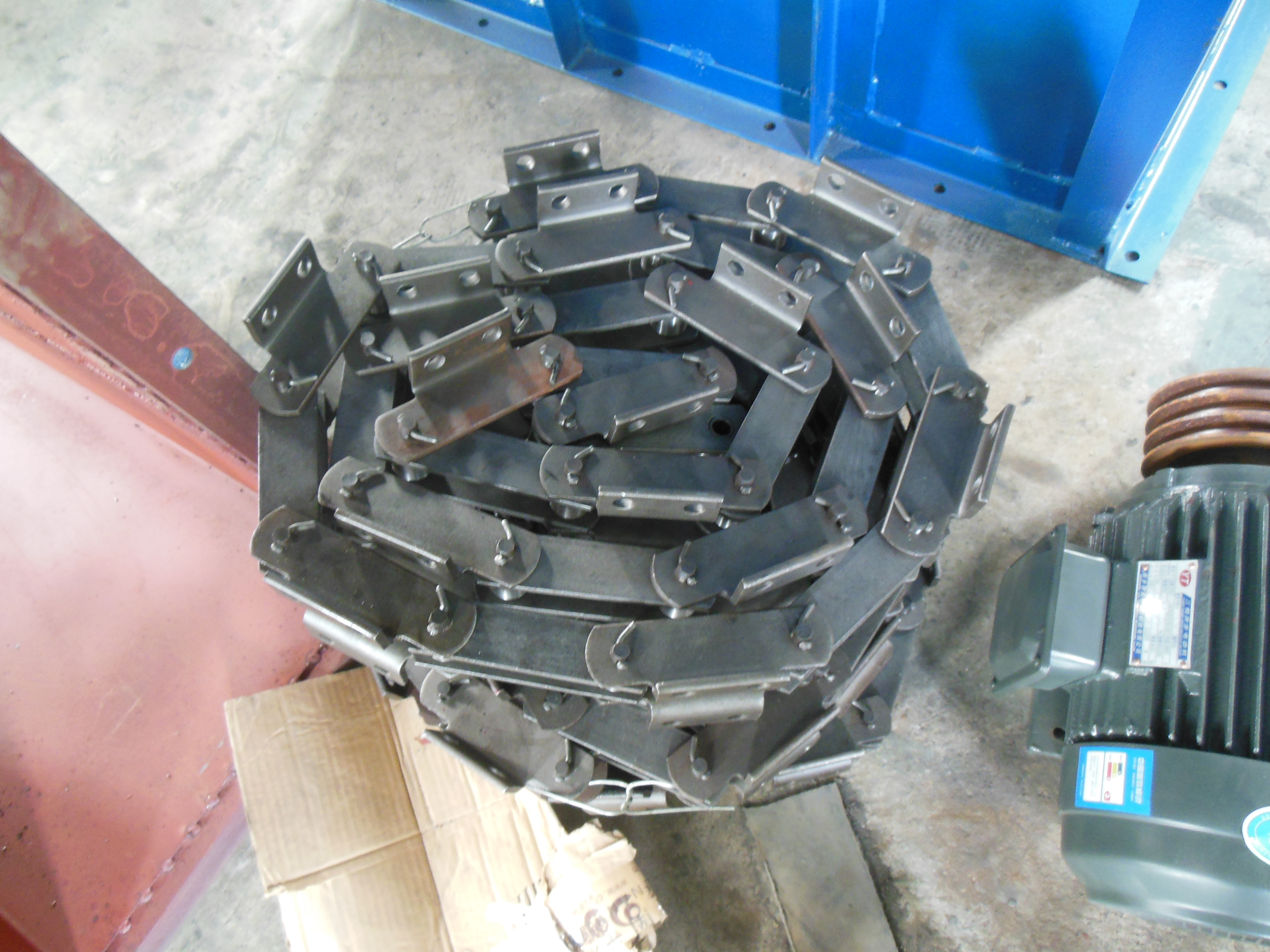

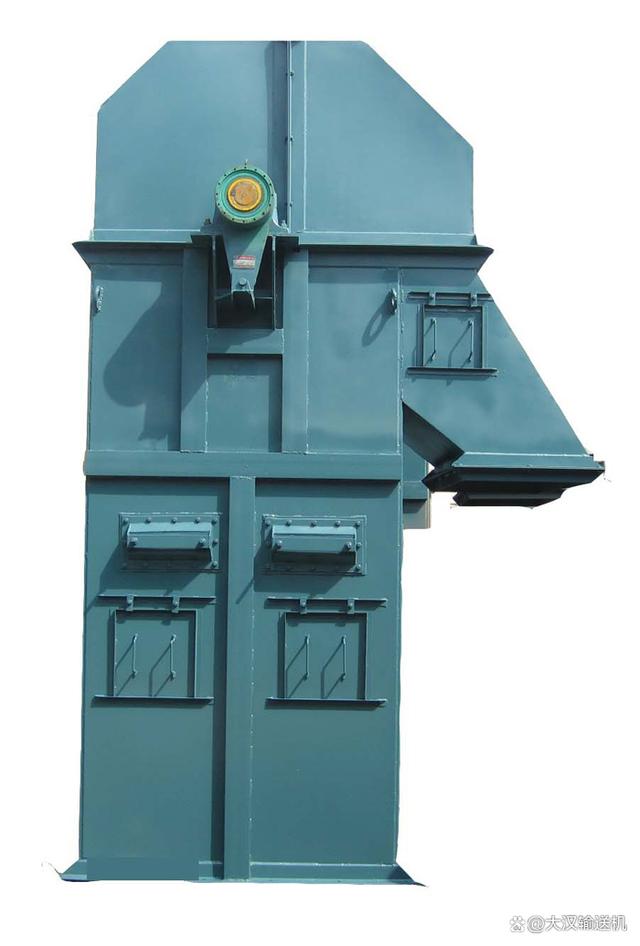

NE Plate Chain Hoist

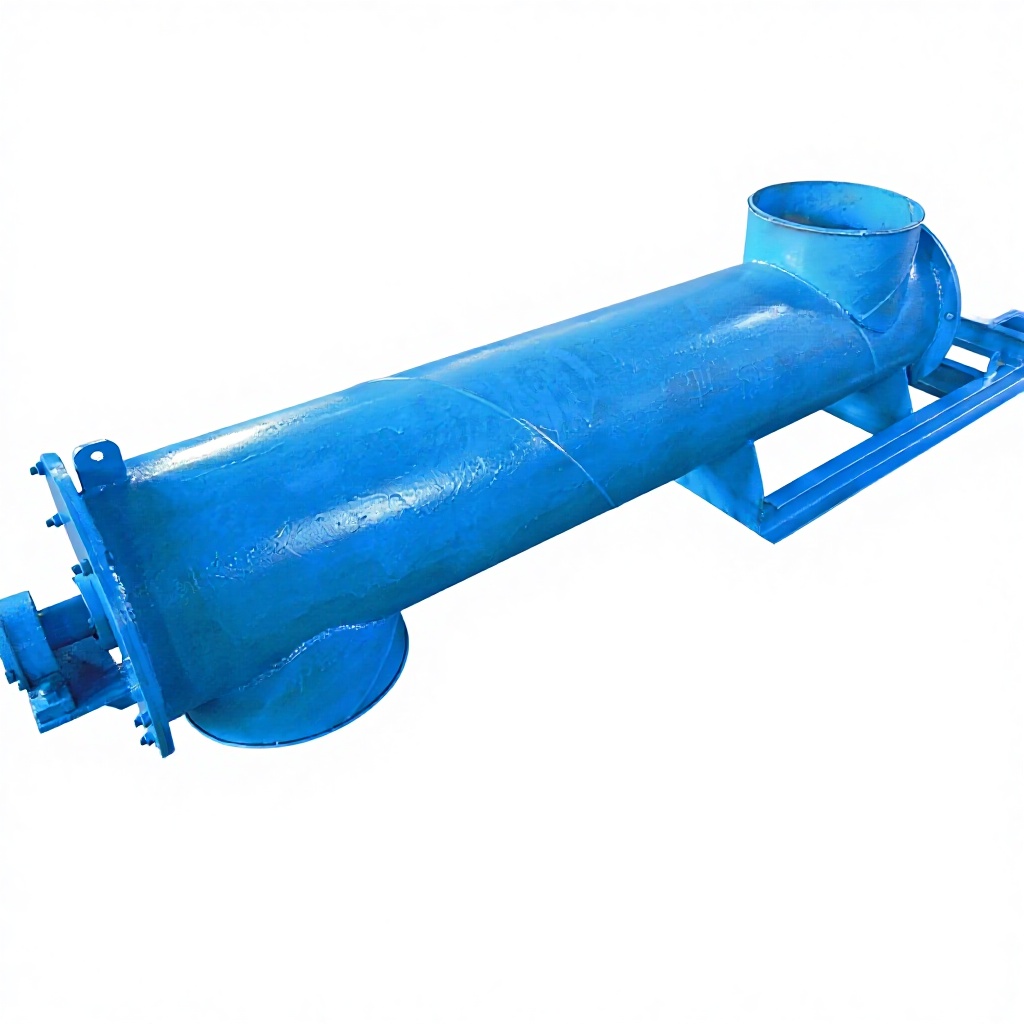

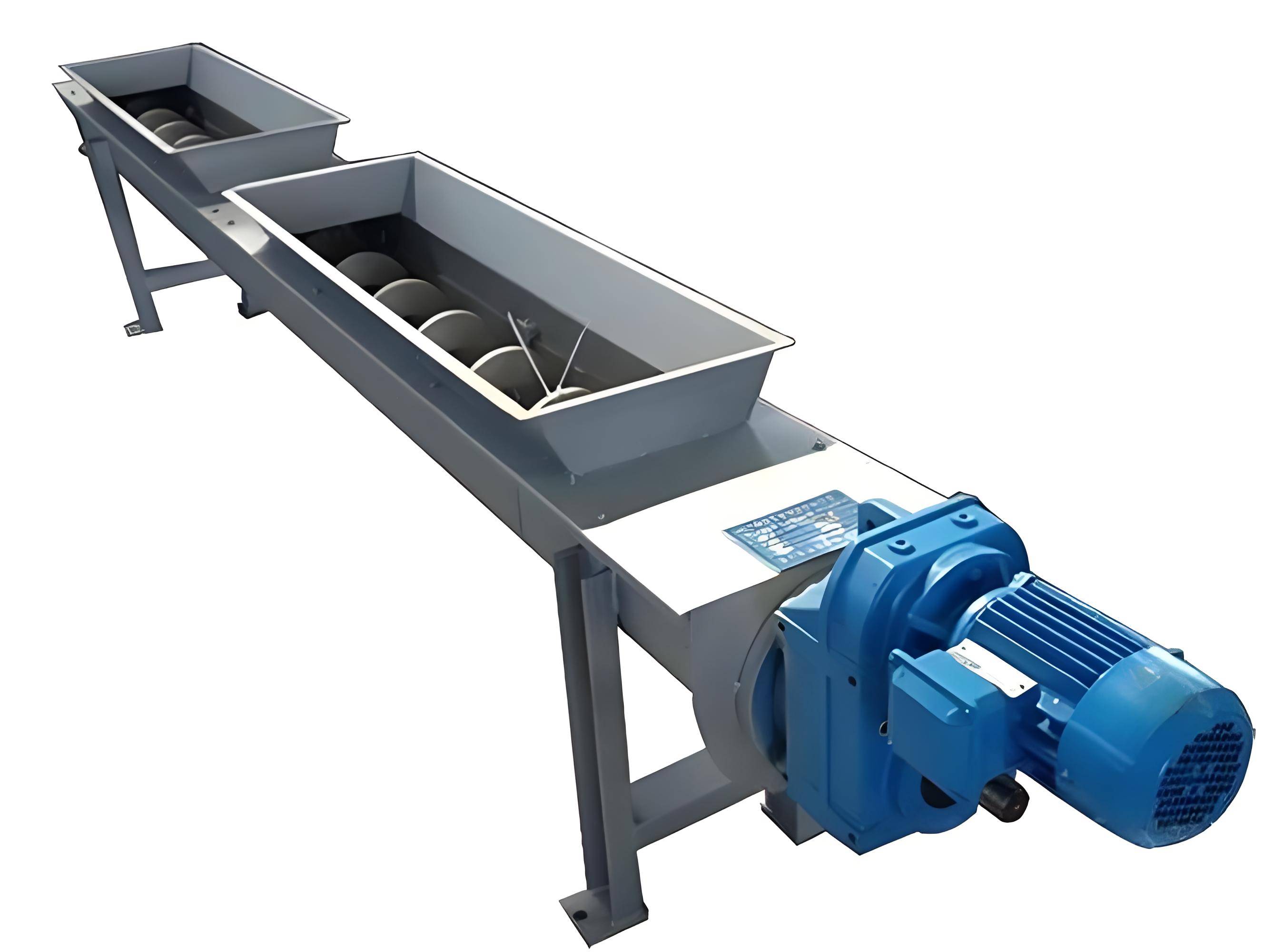

GL Screw Conveyor

Technical Specifications & Selection Guide

Equipment Type	Key Selection Dimensions	Applicable Scenarios & Recommended Configurations
NE Plate Chain Bucket Elevator	Lifting Capacity, Lifting Height, Drive Power	Vertical handling of bulk materials (cement, coal). Recommended: Inlet feeding with gravity discharge; high-strength alloy chain (15-800 m³/h).
GL Screw Conveyor	Conveying Capacity, Screw Diameter, Installation Angle	Enclosed transport of powders/granules. Recommended: U-trough or tube design; shaftless screw for sticky materials.
DB Belt Conveyor	Belt Width, Belt Speed, Conveying Capacity	Long-distance transport. Recommended: Cleated belts for inclines; speed selected based on material size (0.8-4.0 m/s).
BL Chain Plate Conveyor	Conveying Capacity, Plate Width, Heat Resistance	Heavy, abrasive, or high-temperature materials (up to 350°C). Recommended: Alloy steel chain; supports inclined transport up to 30°.

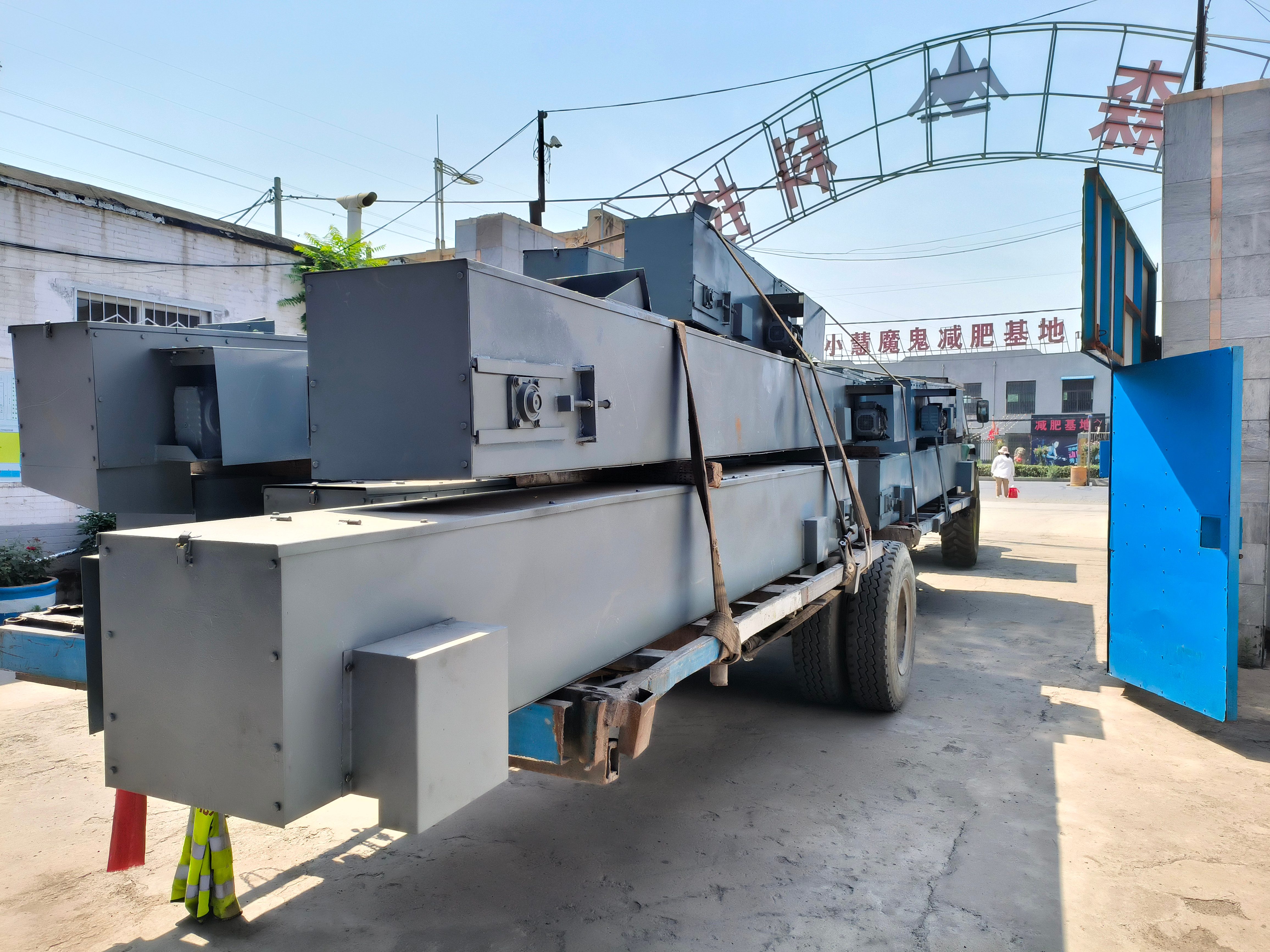

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Our Core Advantages

For customers: Excellent service quality, quick response to customer needs, and the ability to propose solutions faster based on their requirements.

For the product: Solid and durable quality, with a simple and easy-to-use operation process, and fast packaging and shipping.

Frequently Asked Questions

How do I choose between a belt conveyor and a chain plate conveyor?

Belt conveyors are ideal for long-distance, high-capacity transport of general bulk or packaged goods. Chain plate conveyors (Apron conveyors) are better suited for heavy-duty, abrasive, or high-temperature materials like metal scraps or large stones.

What is the maximum temperature the BL Chain Plate Conveyor can handle?

The BL Chain Plate Conveyor is designed for extreme conditions and can handle materials with temperatures reaching up to 350°C.

Is the GL Screw Conveyor suitable for sticky materials?

Yes, for sticky or viscous materials, we recommend a shaftless screw design to prevent clogging and ensure smooth material flow.

What is the maximum lifting height for the NE Plate Chain Bucket Elevator?

The NE series can reach lifting heights of up to 40-50 meters, depending on the material density and model configuration.

Can these conveyor systems be used in food processing?

Absolutely. For hygienic applications, we provide stainless steel (304/316L) construction, particularly for our GL Screw Conveyors, to meet industry standards.

How do you ensure dust control during transportation?

Our NE Bucket Elevators and GL Screw Conveyors feature fully enclosed designs to minimize dust pollution and protect the working environment.
