Palletizers are specialized equipment used in automated warehousing and production line back-end systems. They neatly stack bagged and boxed materials onto pallets according to a fixed arrangement, replacing manual palletizing. They are widely used in the grain, feed, fertilizer, cement, food, chemical, and building materials industries.

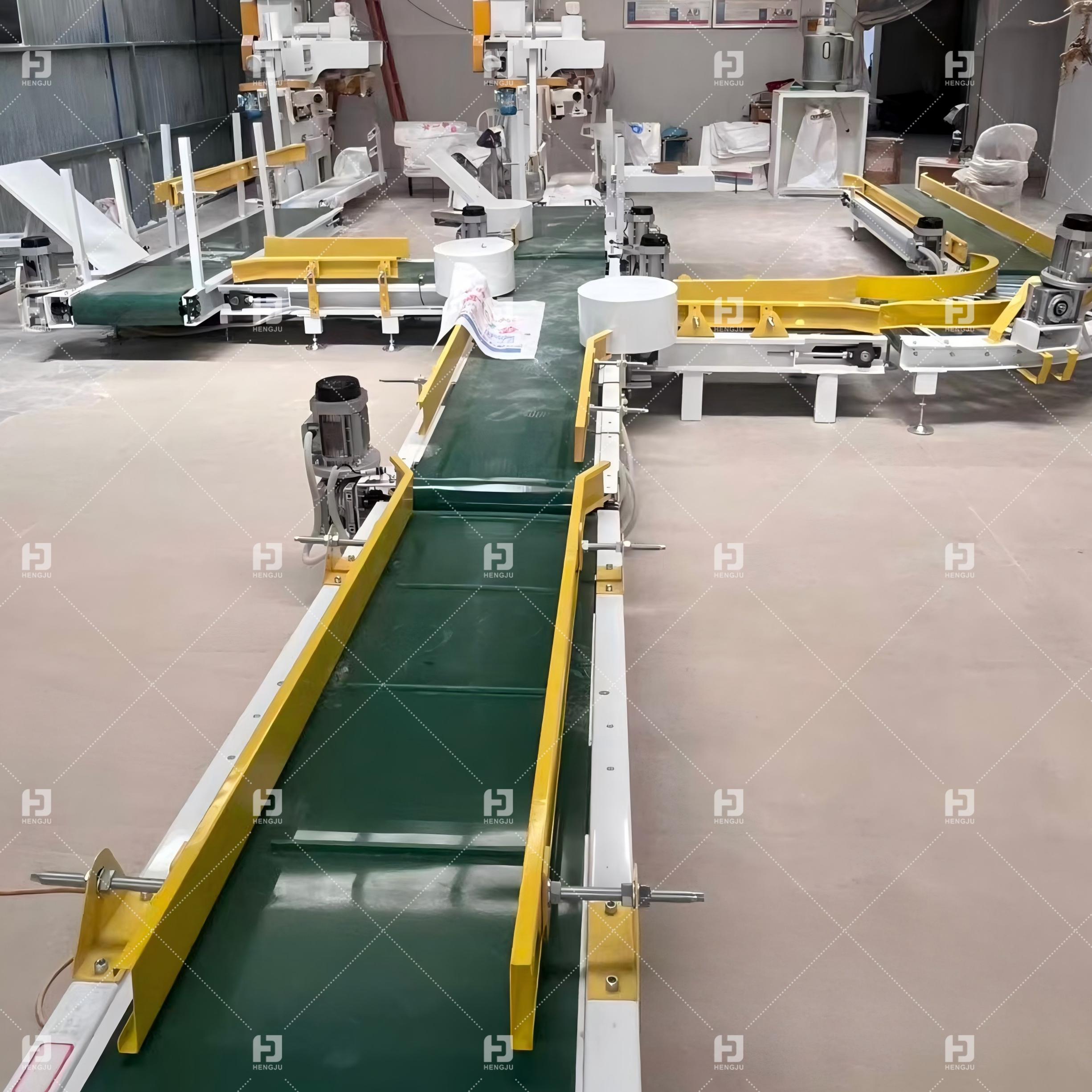

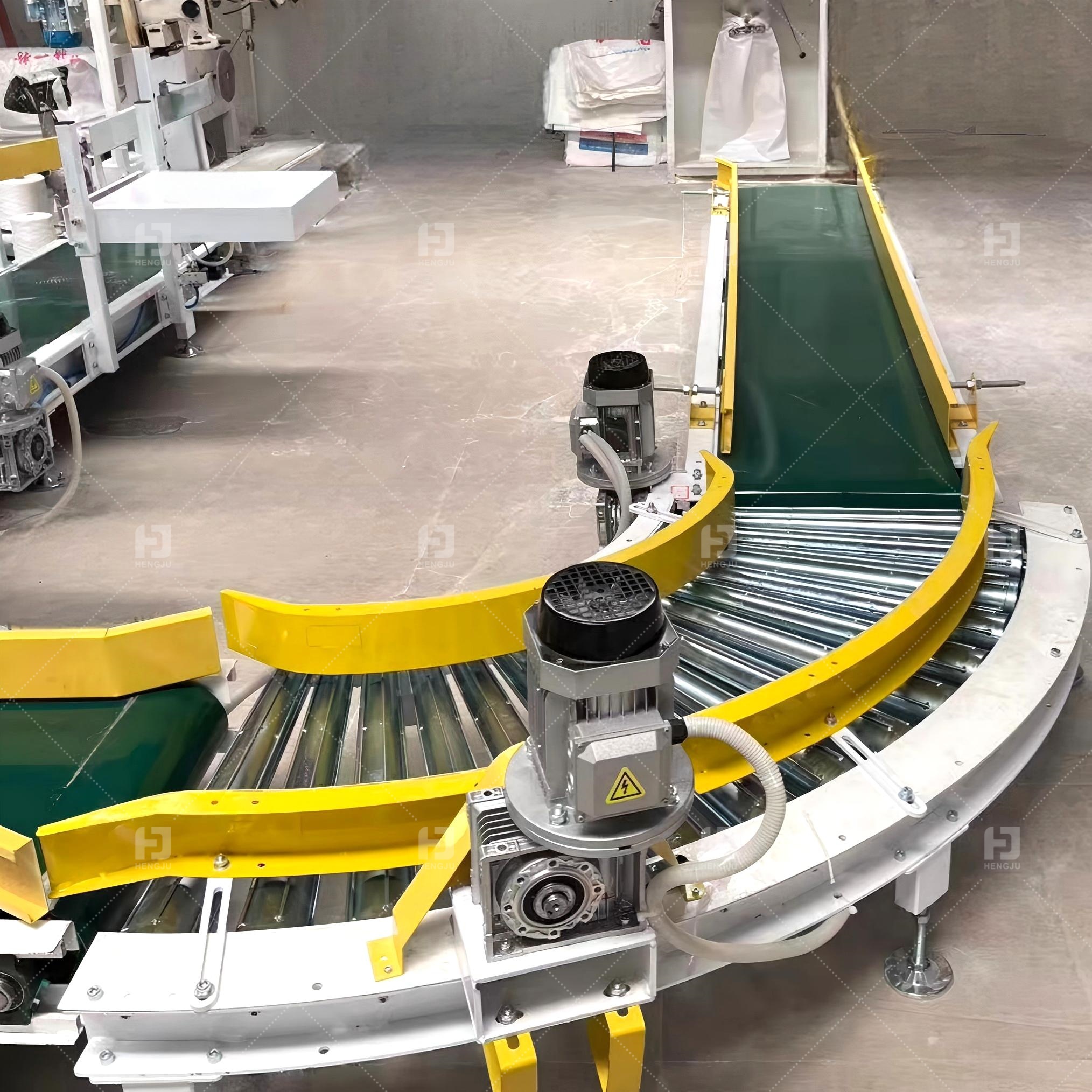

The packaged bags/boxes are smoothly transported from the sewing/sealing machine to the pushing and shaping station, serving as a buffer and queueing mechanism.

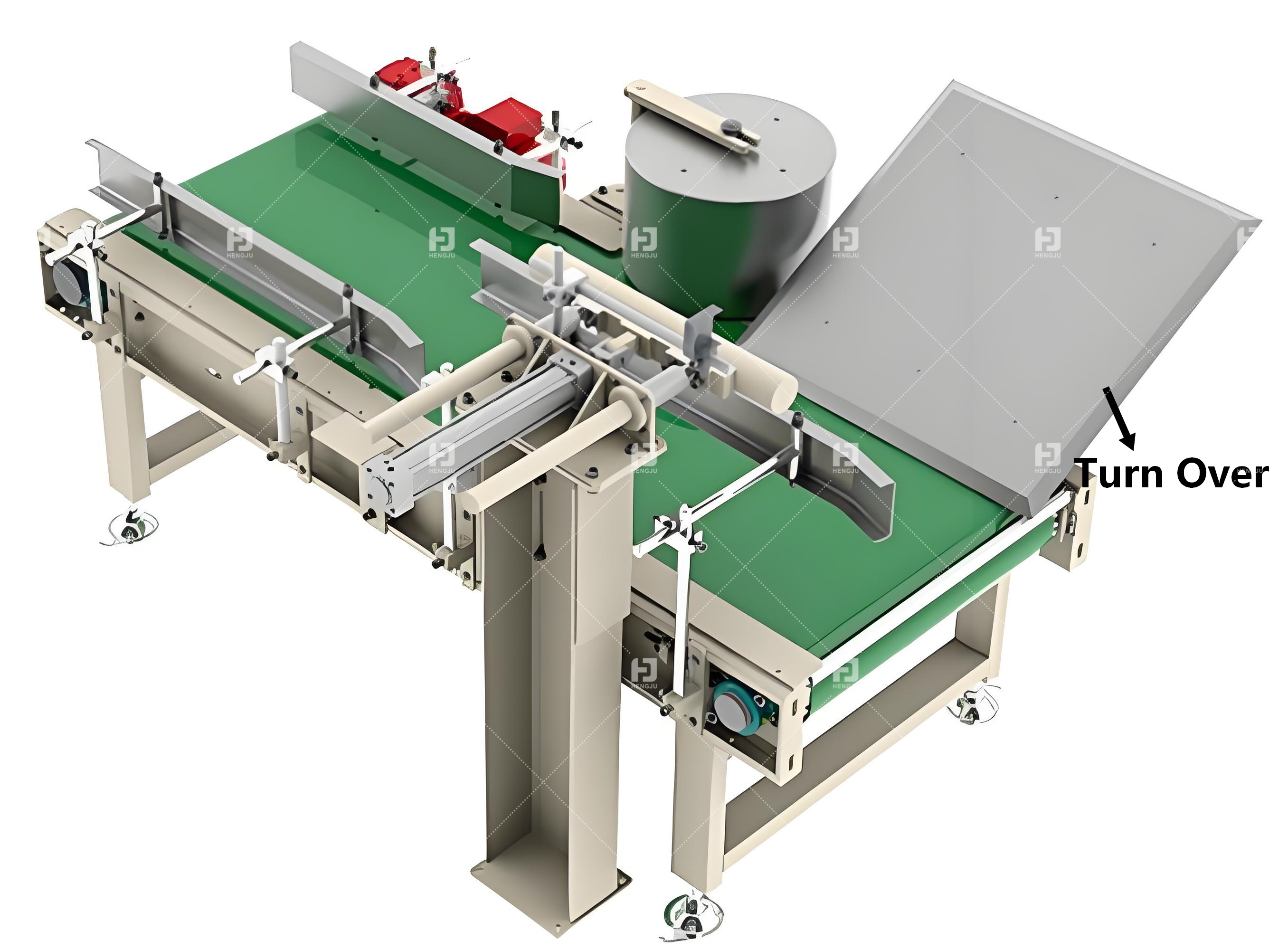

After being quantitatively packaged, the bagged materials are in a "standing" state. A pusher conveyor is used to push the bagged materials to a horizontal position.

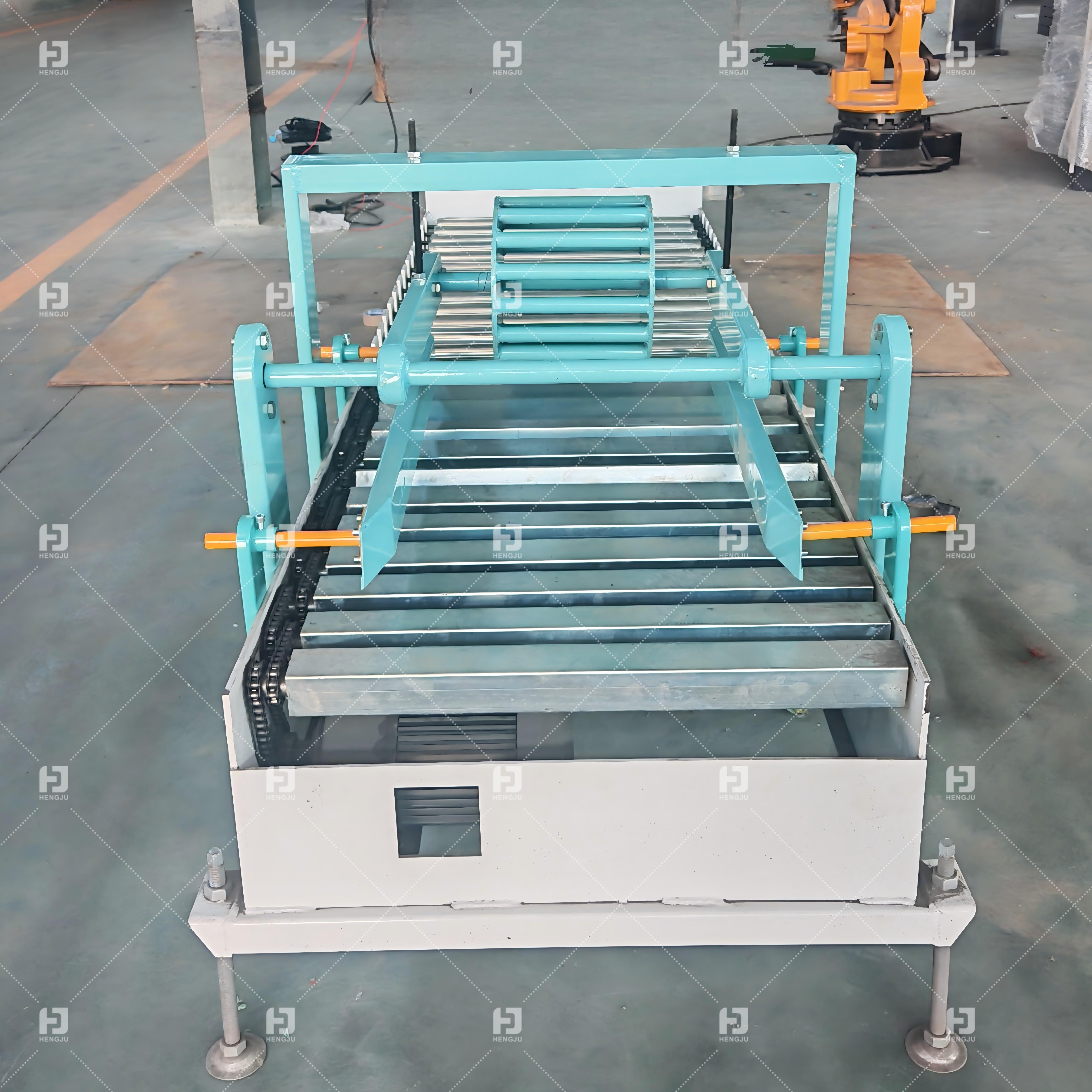

Bags are flattened and degassed by upper pressure rollers and vibrating rods, ensuring that the stack is square, stable, and aesthetically pleasing.

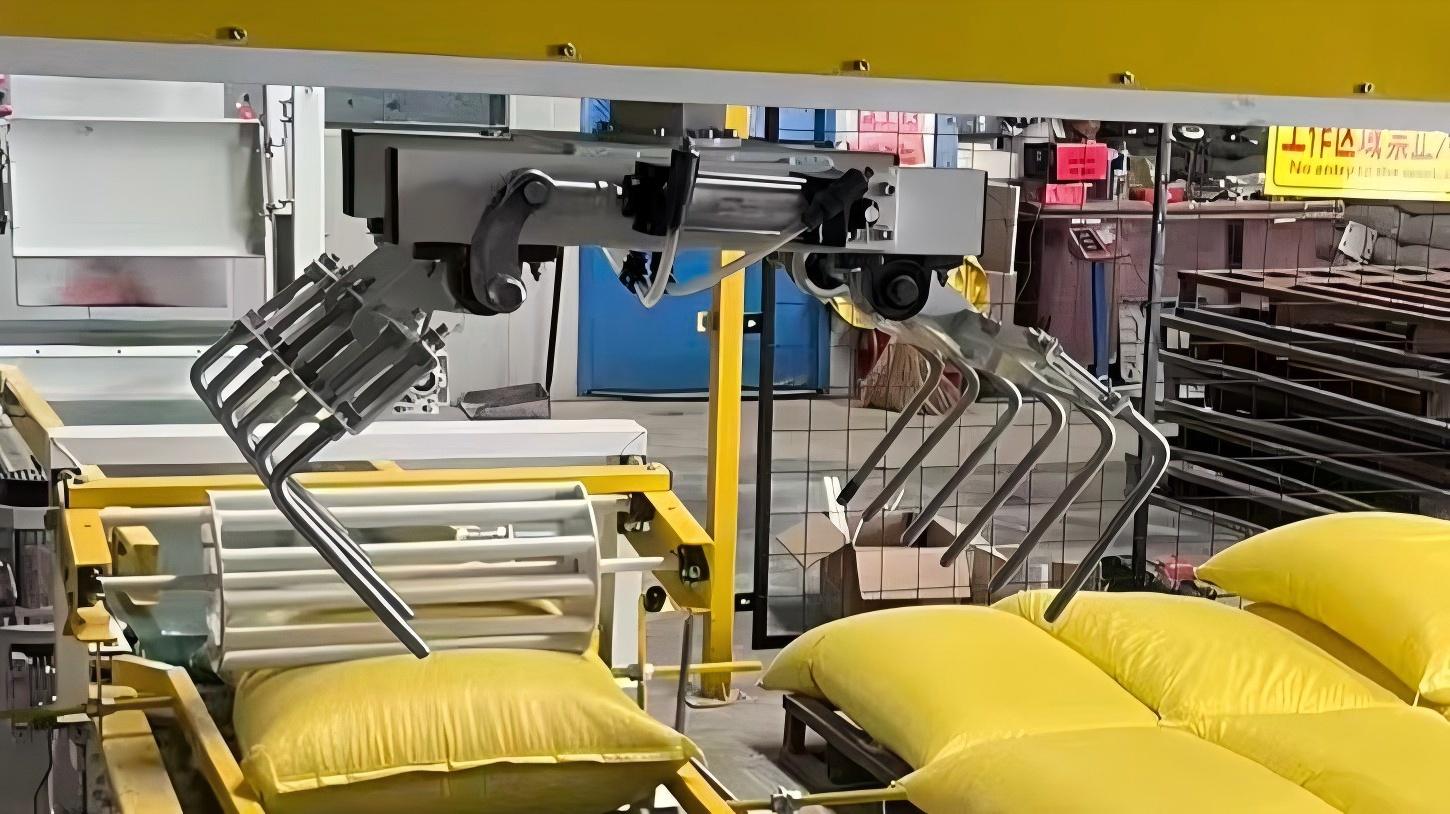

The system uses durable alloy grippers to pick up materials and deliver them to the pallet with high accuracy.
| Model | Capacity (bags/h) | Load (kg/bag) | Footprint (m) |
|---|---|---|---|
| Straight Arm Palletizer | 350-400 | ≤80 | 6*5.8*3 |

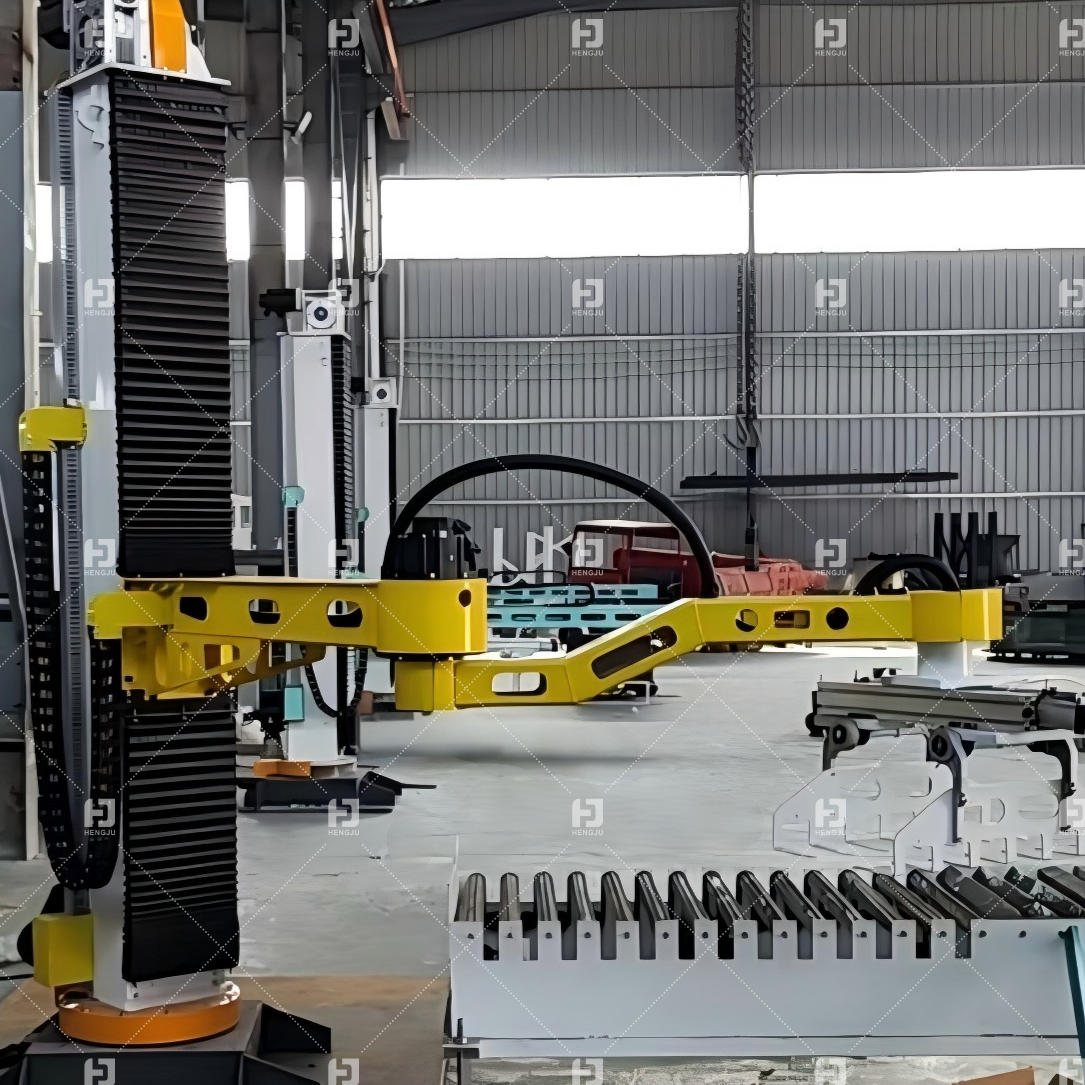

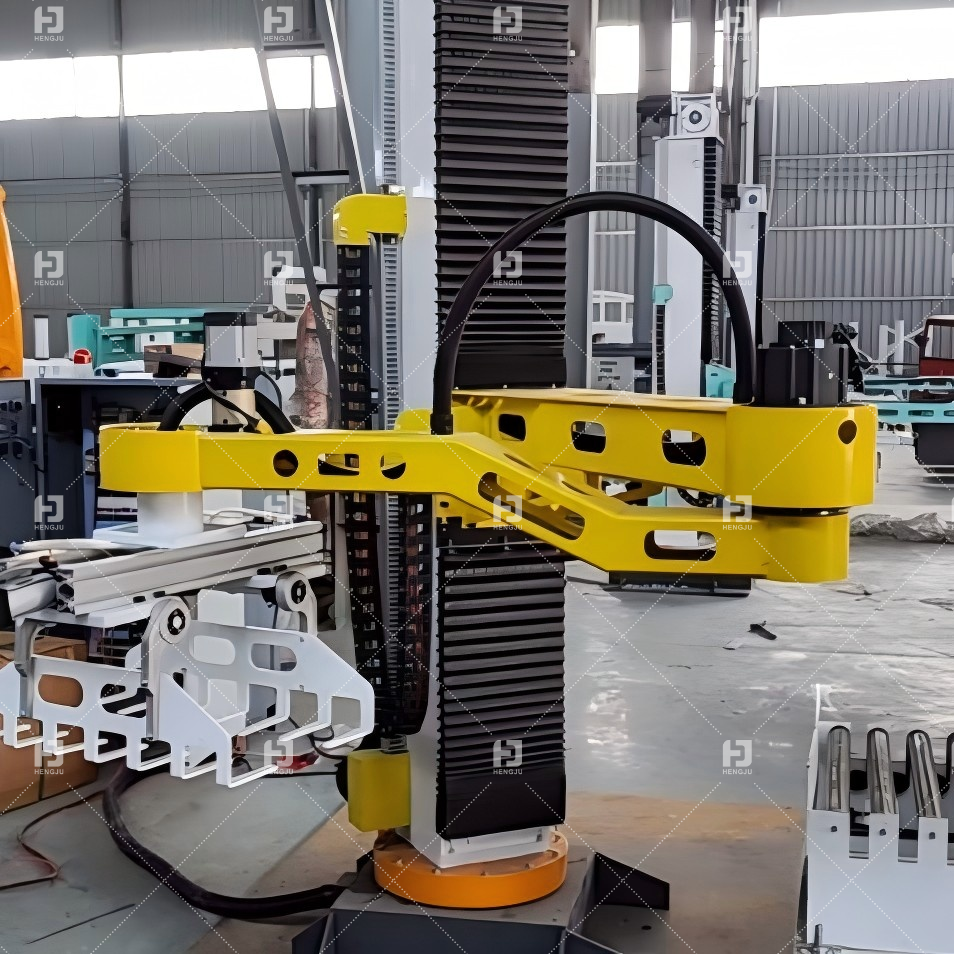

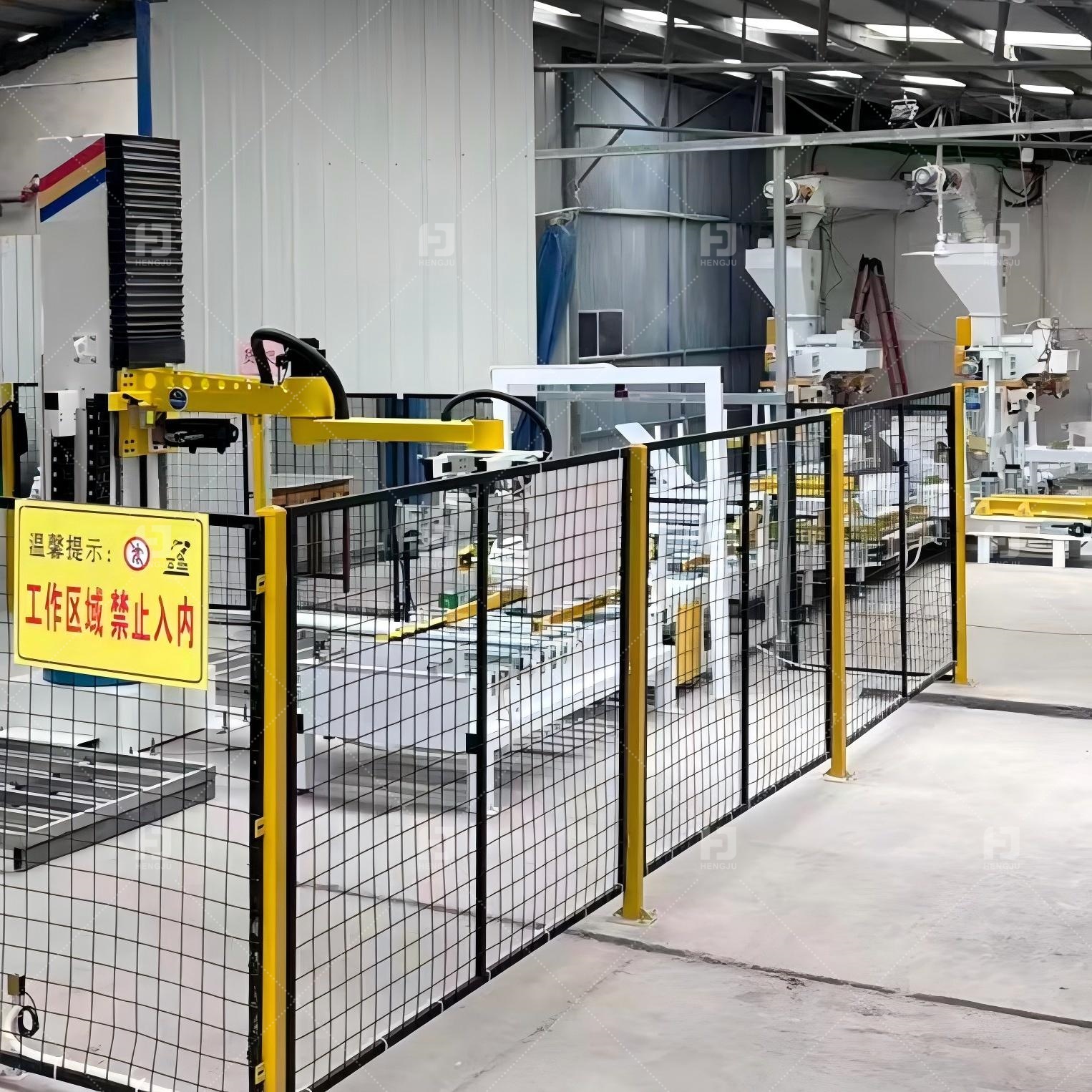

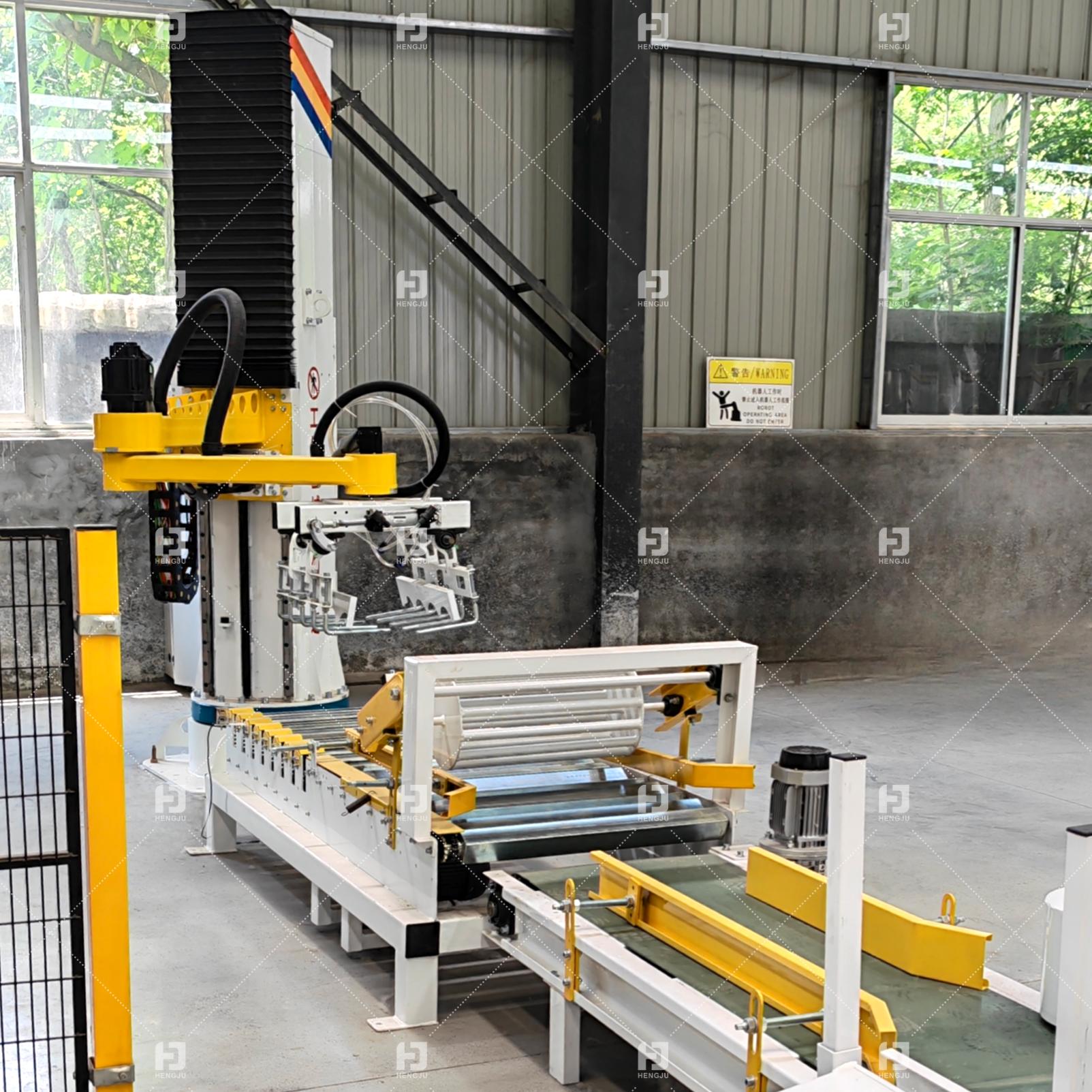

| Rotary Arm Palletizer | 350-400 | ≤80 | 6*5.8*3 |
| Palletizing Robot | 800-1000 | ≤80 | 7*6.3*3.5 |
Palletizers are widely used in food, grain, feed, fertilizer, chemical, pharmaceuticals, electronics, logistics, and new energy industries. They can automatically stack different packaging materials such as cartons, woven bags, and plastic drums, adapting to various conditions like dust or low temperature.
