| Machine size | Support customization |

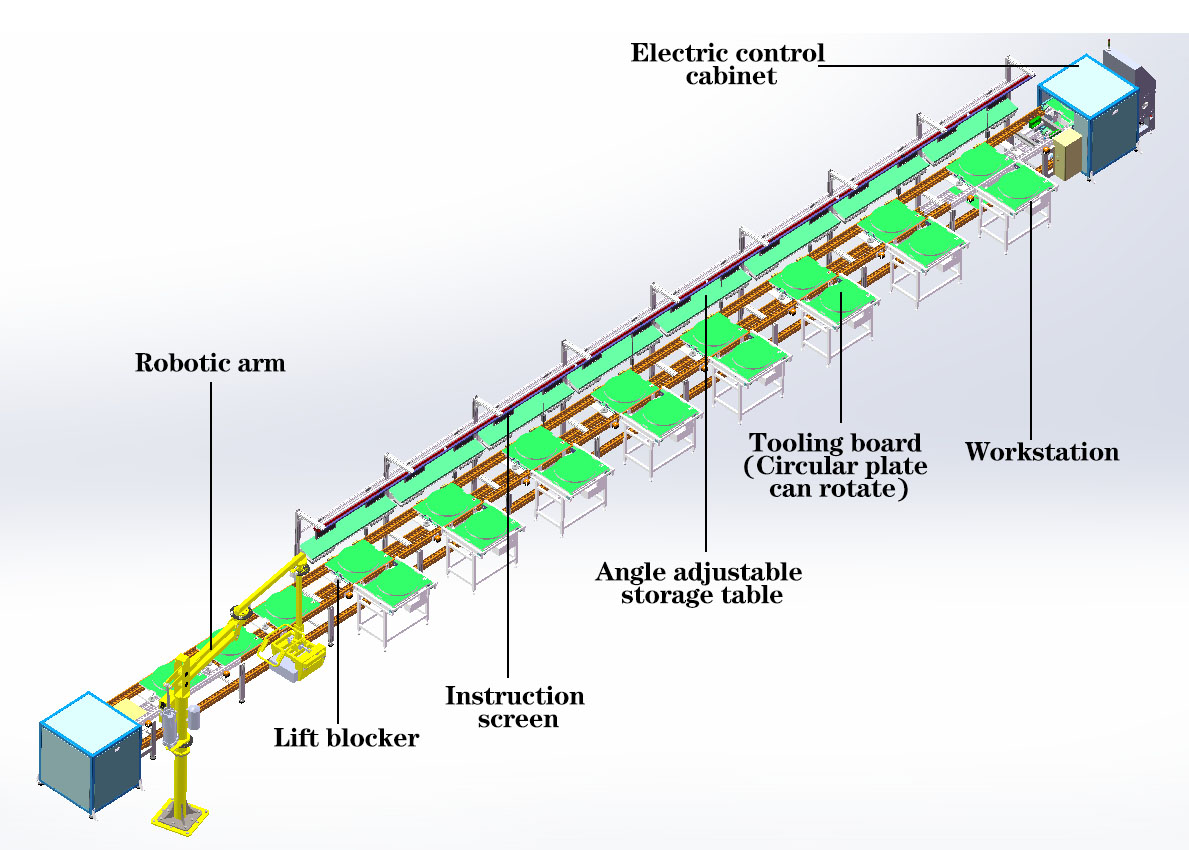

| Machine line body structure | Machine stand support made of 40*40*2.0mm strong aluminum profile, Height =740mm, edge frame with 118*100*2.0mm high quality aluminum. Storage Second floor table (if needed) hooked by 50*50*2.0mm square coated steel. |
| Tooling board sizes | (L) 600*(W)800*(T)20MM, Coated with stastic free PVC rubber, 15M Long totally with 20 pcs of plates. With steel support at the bottom of the plate, can carry on up to 100kgs cargo for each plate. 360° rotation round plates can be optional by your extra requirements. |
| Independent workstation | 8 PCS of independent work station is arrange at each side, totally 16 pcs for two sides. |
| Storage table | Each workbench can be equipped with a storage platform, with adjustable height and angle. Size supports customization. |
| Instruction screen | Each storage platform can be equipped with an indicator screen. |
| Lift blocker | Each workstation is equipped with a lifting stopper, which is controlled by the release button of each workstation and used for production process control. |
| Mechanical arm | The robotic arm can help unload and improve assembly efficiency. |

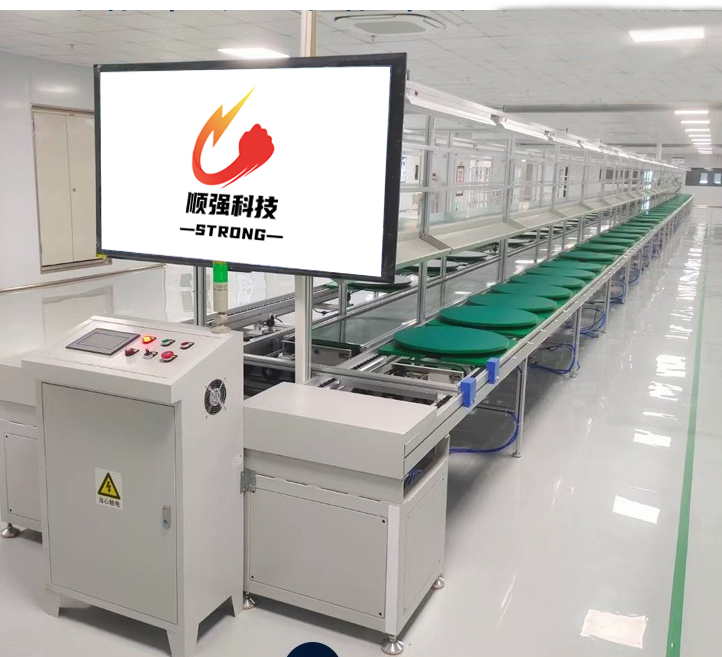

| Control System | Whole Line controlled by Mitsubishi PLC System with touch screen operation. Pneumatic Control with Airtac valve with independent control switches for each plate with OMRON Relay. |
| Driving System | Driven by 2HP Gear motor (2 sets) with speed up to 18m/min adjustable. |
