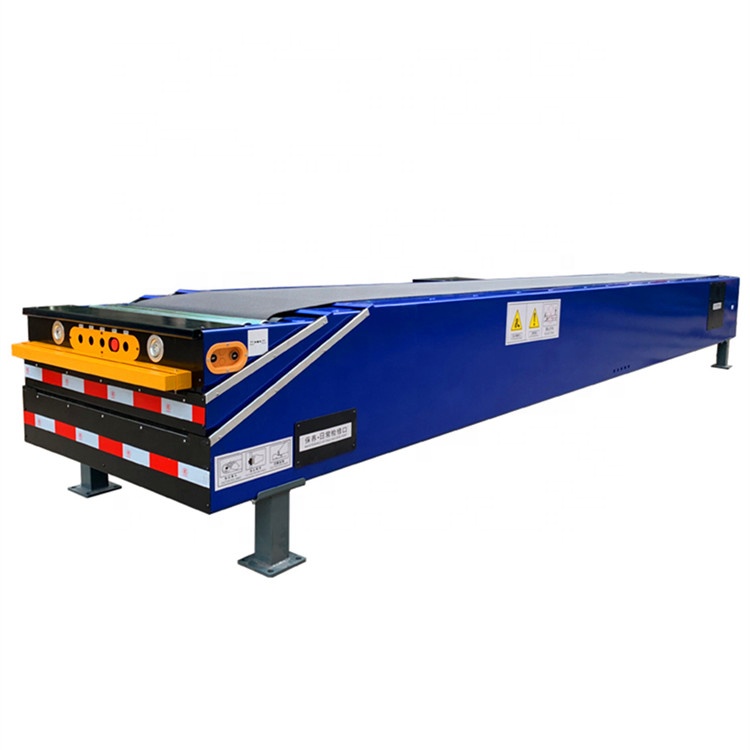

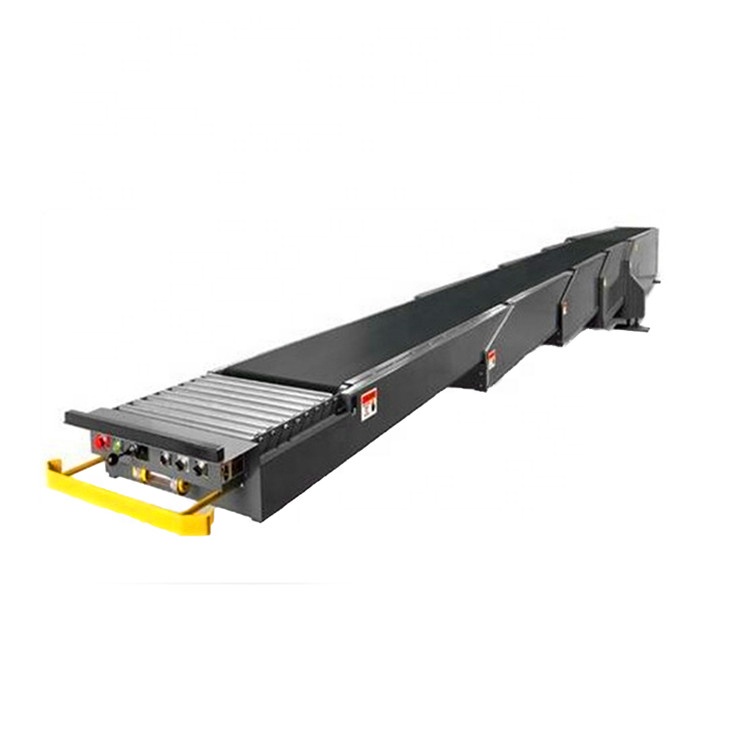

MINGJING BZ-500 Mobile Transfer Container Retractable Belt Conveyor Adjustable Speed for Warehouse Truck Loading/Unloading Ramps

1 / 5

MINGJING BZ-500 Mobile Transfer Container Retractable Belt Conveyor Adjustable Speed for Warehouse Truck Loading/Unloading Ramps

Send Inquiry

Product Description

Mobile Transfer Container Retractable Belt Conveyor Adjustable Speed for Warehouse Truck Loading/Unloading Ramps

Product Description

✔ A telescopic belt conveyor is an effective and ergonomic alternative to labour-intensive routines. Operators can move heavy or awkward packages into or out of a container/truck rapidly and with little effort.

✔ Telescopic belt conveyors can be used to load/unload any type of loose-loaded cargo - typically parcels, boxes, sacks & tyres.

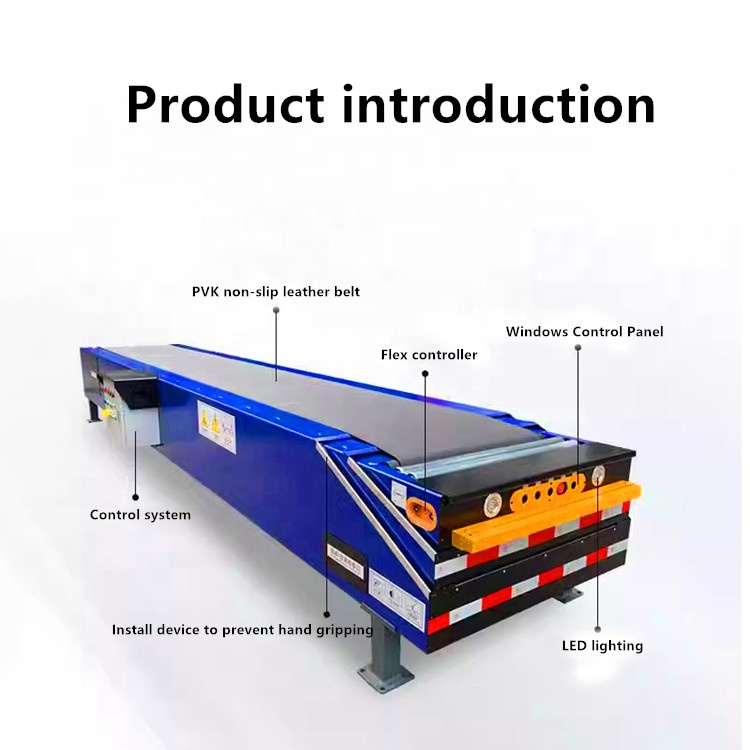

✔ An intuitive smart-pad on either side enables precise control of the boom's elevation and telescopic movement. Push buttons at the operator end of the boom control activation, lights, belt direction etc.

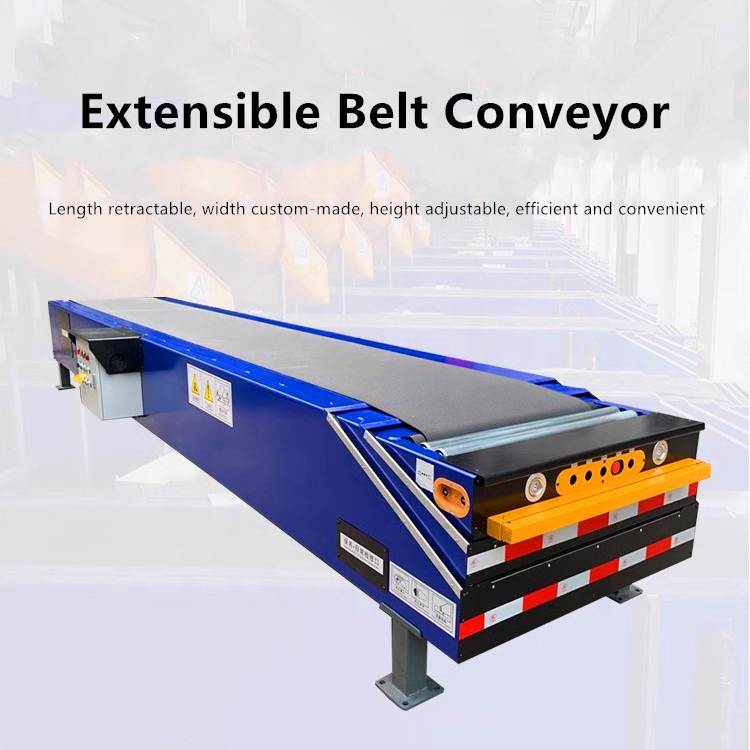

Mobile Transfer Container Retractable Belt Conveyor

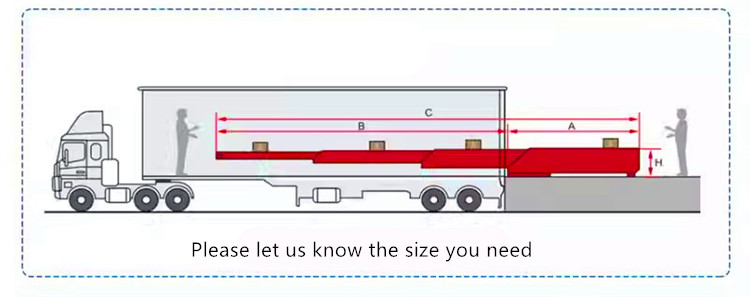

Model	MJ2S-6/4	MJ3S-6/8	MJ4S-6/12	MJ5S-6/14
Retracted length(A)	6,000mm	6,000mm	6,000mm	6,000mm
Extended length(B)	4,000mm	8,000mm	12,000mm	14,000mm
Total length(C)	10,000mm	14,000mm	18,000mm	20,000mm
Height	750mm	800mm	1,000mm	1,200mm
Conveyor Width	1,380mm	1,400mm	1,470mm	1,530mm
Belt Width	600mm or 800mm	600mm or 800mm	600mm or 800mm	600mm or 800mm
Belt direction	Reversible	Reversible	Reversible	Reversible
Belt speed	0~36M/minute (adjustable)
Capacity	60KG/meter
Tilting	0~+50, adjustable by hydraulic
Driven motor	1.5KW	2.2KW	3.0KW	4.0KW
Weight	2T	3T	4T	5T

Frequently Asked Questions

Q1: What are the primary benefits of using a telescopic belt conveyor?

A telescopic belt conveyor provides an efficient and ergonomic alternative to manual loading and unloading. It enables operators to move heavy or bulky packages into or out of trucks and containers quickly, safely, and with minimal physical effort.

Q2: What types of cargo can be processed with these conveyors?

These conveyors are ideal for handling loose-loaded cargo. Typical applications include the transport and loading/unloading of parcels, boxes, sacks, and tires.

Q3: How is the speed and extension of the conveyor controlled?

The conveyor features intuitive smart-pads on both sides for precise control of the boom's elevation and telescopic extension. Additionally, convenient push buttons at the operator's end manage activation, lighting, and belt direction.

Q4: What is the load capacity and speed range of the conveyor belt?

The system supports a weight capacity of up to 60KG per meter. The belt speed is fully adjustable, ranging from 0 to 36 meters per minute to suit different operational requirements.

Q5: Does the conveyor support height adjustments or tilting?

Yes, the conveyor supports dynamic tilting from 0 to +50 degrees, which is easily adjustable using an integrated hydraulic system.

Q6: Are there different models available for varying length requirements?

Yes, we offer multiple models ranging from the MJ2S-6/4 with a total extended length of 10,000mm up to the MJ5S-6/14 which reaches a total extended length of 20,000mm. Refer to the specifications table above to select the ideal model.
