Product Description

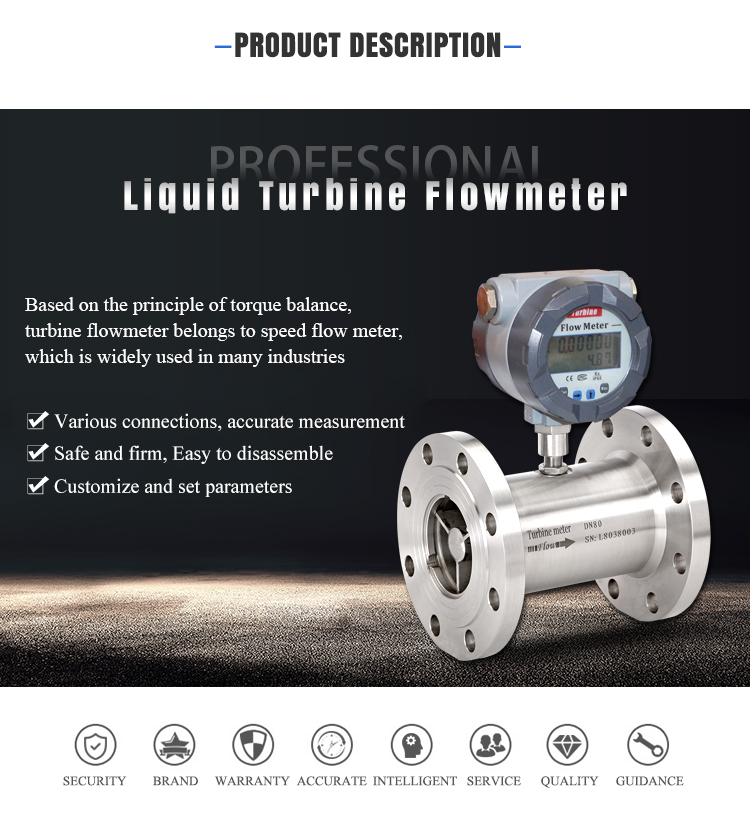

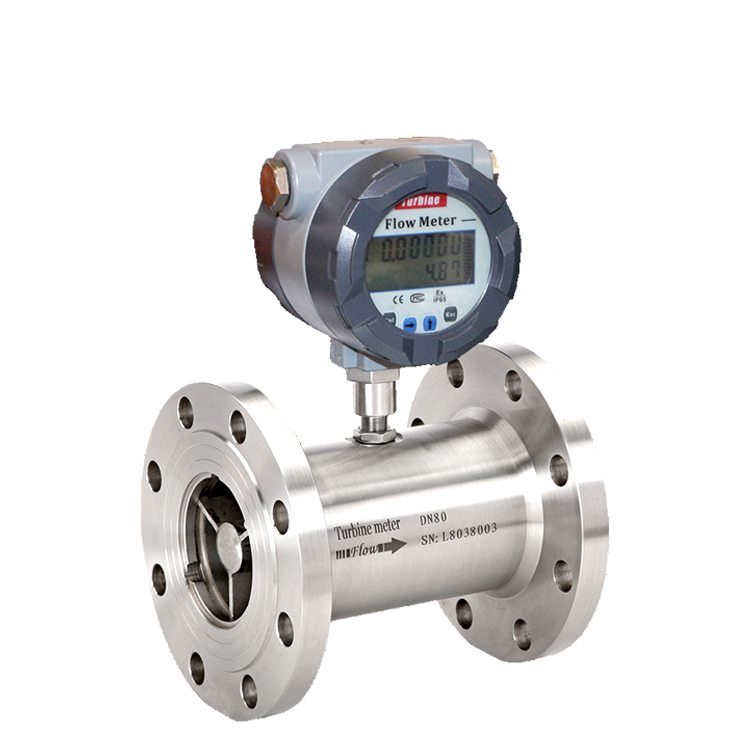

Flowmeter overview
Flowmeter installation

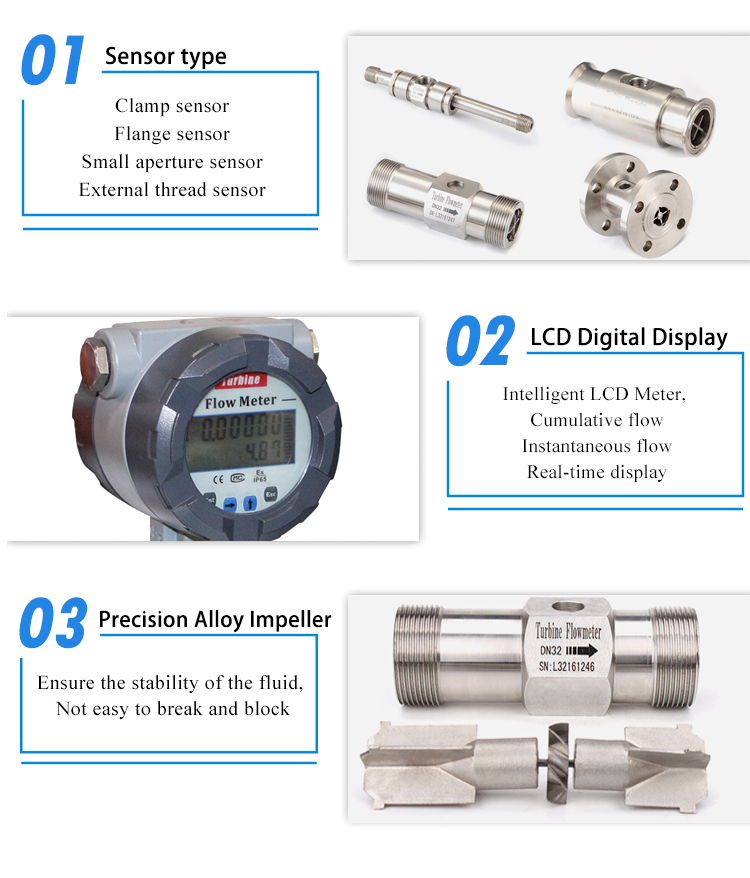

Flowmeter display details
Flowmeter configuration
Technical Parameters & Specifications
Turbine Flow Sensor Specifications
Executive Standards Turbine flow sensor (JB / t9246-1999)
Verification regulation Turbine flowmeter (jg1037-2008)
Measured medium No impurities, low viscosity, no strong corrosive liquid
Instrument diameter (mm) and Connection mode

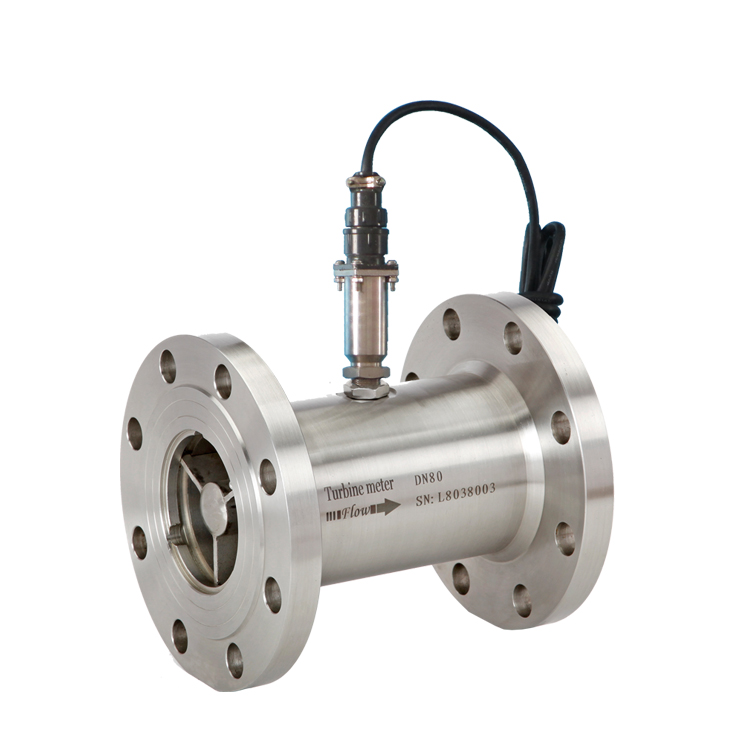

  • Flange connection type: DN15-DN200

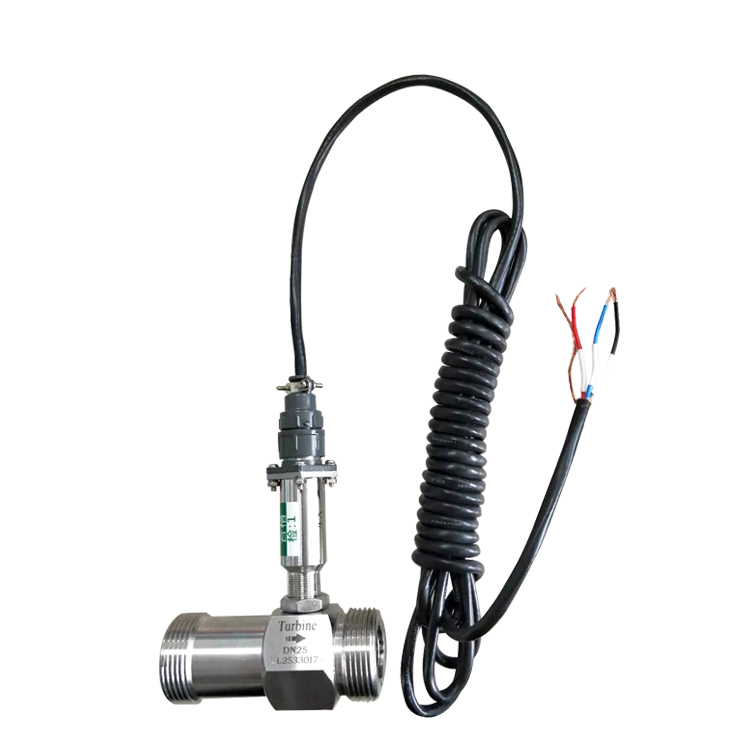

  • Threaded connection type: DN4-DN50

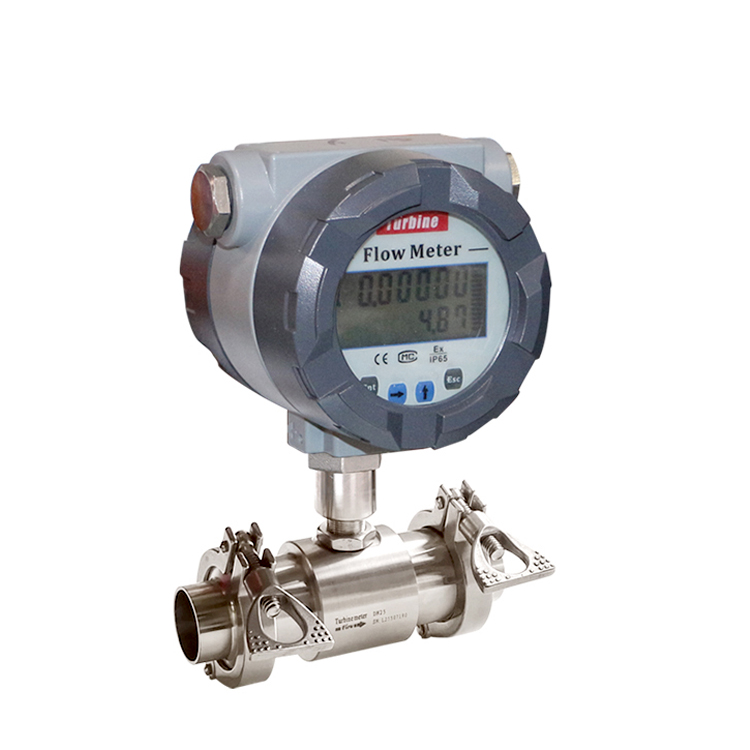

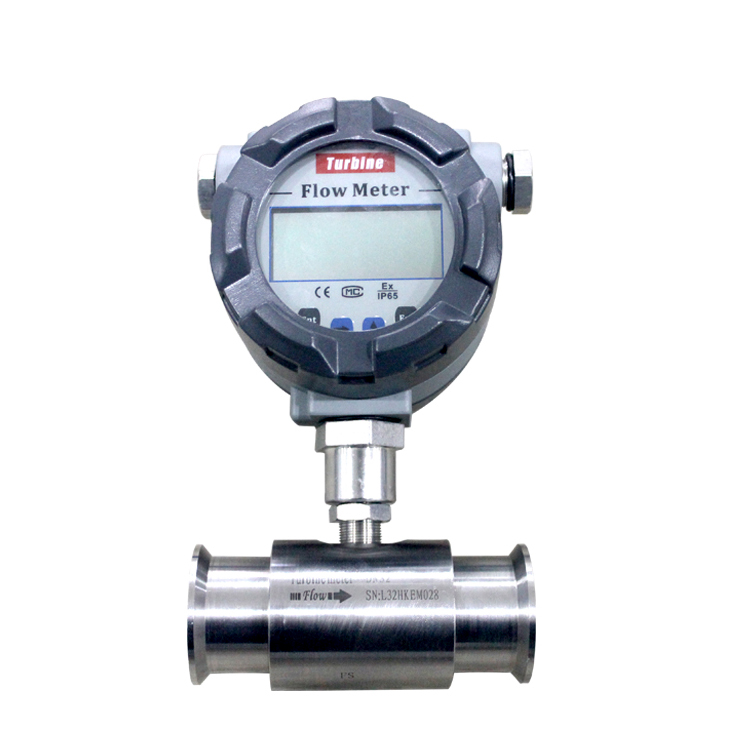

  • Clamp connection type: DN4-DN200
Accuracy class ±1%R, ±0.5%R, ±0.2%R
Range ratio 1:10; 1:15; 1:20
Sensor material 304 stainless steel, 316 (L) stainless steel, etc.
Conditions of use
  • Medium temperature:
    • T1 (standard): -20°C ~ +80°C
    • T2 (high temperature): -20°C ~ +120°C
    • T3 (high temperature): -20°C ~ +150°C
  • Ambient temperature: -20°C ~ +60°C
  • Relative humidity: 5% ~ 90%
  • Atmospheric pressure: 86KPa ~ 106KPa
Signal output function Pulse signal, 4-20mA signal
Communication output function RS485 communication, HART protocol, etc.
Flange standard
  • Conventional standards: GB/T 9113-2000
  • Other standards: German DIN, American ANSI, Japanese JIS, Ministry of chemical industry standards, Ministry of machinery standards
Thread specification
  • General specification: British pipe thread (external thread) (refer to GB / t7307-2001)
  • Other specifications: internal thread, spherical thread, NPT thread, etc.
Electrical interface M20 * 1.5 internal thread (NPT thread to be customized)
Explosion proof grade ExdIICT6 GB
Protection level IP65 or higher
Product Showcase & Details
Product view 1

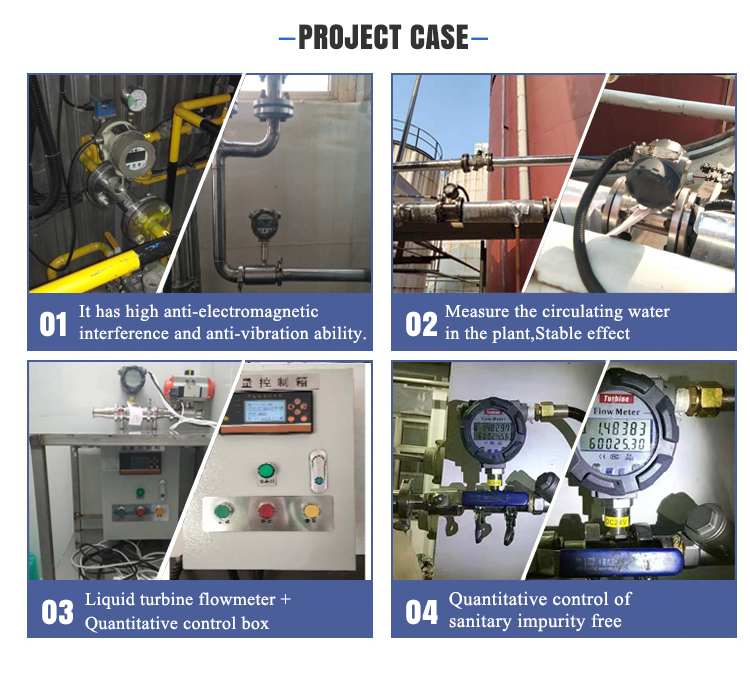

Product view 2
Product view 3
Product view 4
Product view 5
Frequently Asked Questions (FAQ)
Q What type of medium is suitable for this turbine flowmeter?
This turbine flow sensor is suitable for measuring liquids with low viscosity, no impurities, and no strong corrosive properties.
Q What accuracy levels are supported by the sensor?
The accuracy classes available for this turbine flow sensor are ±1%R, ±0.5%R, and ±0.2%R.
Q What are the options for connection methods and sizes?
It supports Flange connection (DN15-DN200), Threaded connection (DN4-DN50), and Clamp connection (DN4-DN200) modes.
Q Does the system support signal output and remote communication?
Yes, it supports both Pulse and 4-20mA signal outputs, and can communicate using RS485 or HART protocols.
Q What are the operating temperature limits?
It is designed for standard medium temperatures ranging from -20°C to +80°C (T1), with high-temperature versions supporting up to +120°C (T2) and +150°C (T3).
Q Is this flowmeter safe to use in hazardous explosion-prone areas?
Yes, it has an explosion-proof rating of ExdIICT6 GB and comes with a protection level of IP65 or higher.
