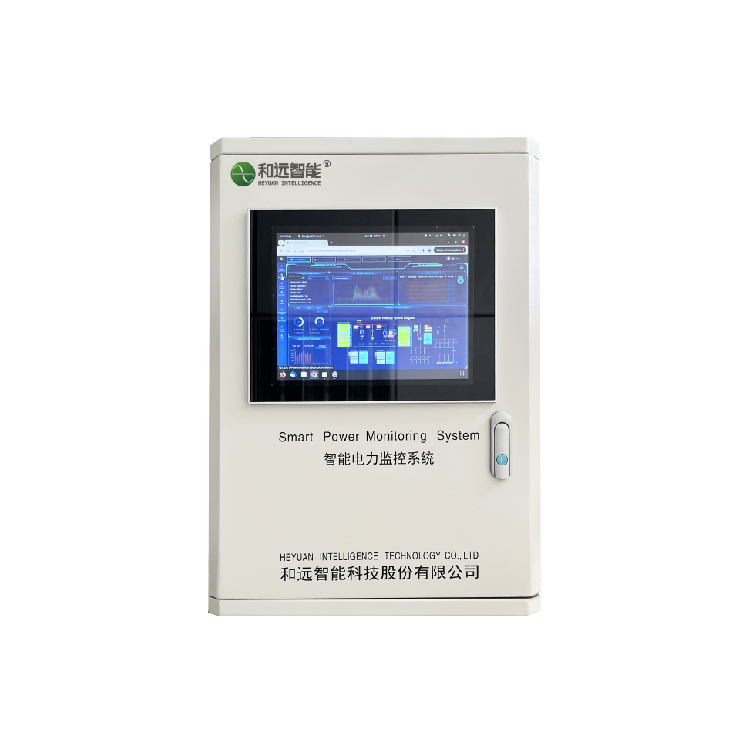

With the rapid expansion of intelligent, unmanned substations and distribution stations, users require higher standards for information security, personal safety, and operational efficiency. We provide a lightweight, integrated station control solution that eliminates the reliance on centralized network stability, offering real-time data visualization for on-site inspection and maintenance.

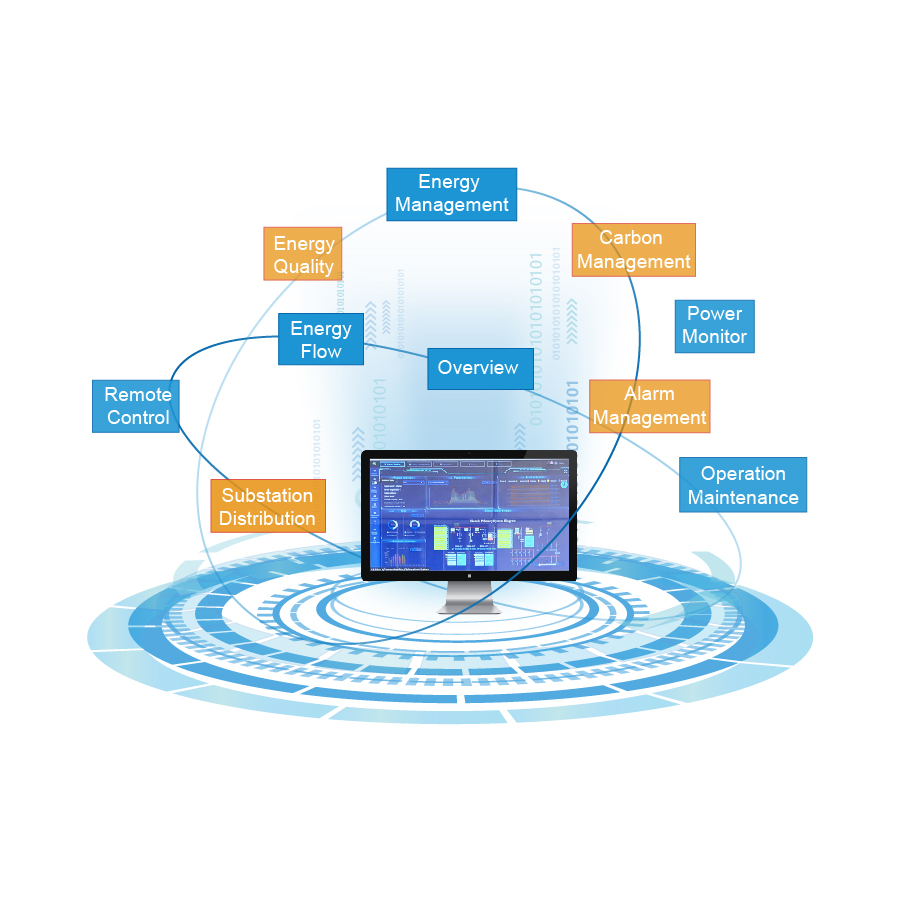

This system integrates software and hardware to manage equipment monitoring, environmental parameters, and auxiliary controls. It optimizes operations, reduces downtime, and cuts maintenance costs with intuitive touchscreen support for instant status checks.

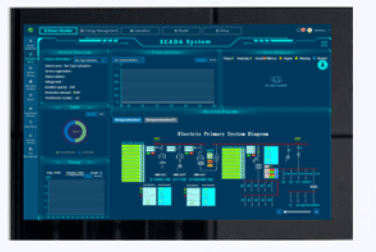

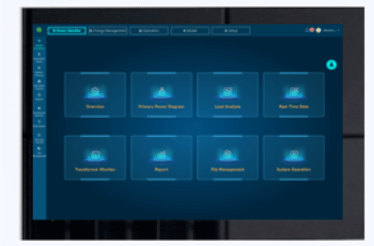

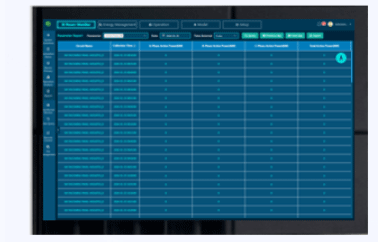

Grasp the current operation of substation/transformer at a glance, support data query, switch control, etc.

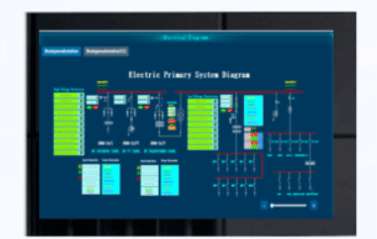

View basic running parameters, perform remote monitoring, and achieve opening/closing control.

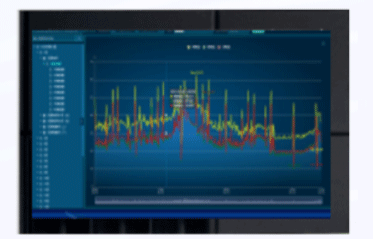

Historical load trend analysis, time/circuit comparison, and data/curve export for efficient load regulation.
Telemetry daily/monthly extreme value reporting and customized reports for management analysis.

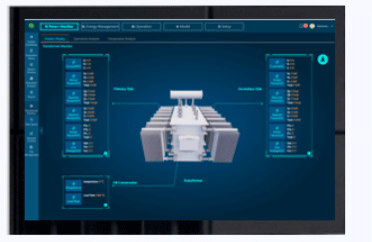

Monitor transformer health with historical analysis and data export capabilities.
| CPU | J1900 / J6412 / 4205U / i3-8145U / i5-7200U |
| Memory | 1*DDR3L-1600 (max 8GB) / 1*DDR4 2400MHz (max 16GB) |
| Network | 2 x Intel 1000Mbps RJ-45 Ethernet ports |
| Interfaces | 4x USB, 2x RS-232/RS-485, DVI-I, Line-out/Mic-in |
| Operating System | Windows 7/8/10, Linux, VXWORKS, QNX |
| Screen | 12.1” XGA TFT, 1024x768 resolution, 350cd/m2 brightness |
| Power Input | 12-24VDC ±10%, Max 37W |
| Protection | Front panel: IP65, EMC: CE/FCC Class B |
| Temp Range | -20 to 60°C (Operation), -30 to 80°C (Storage) |
