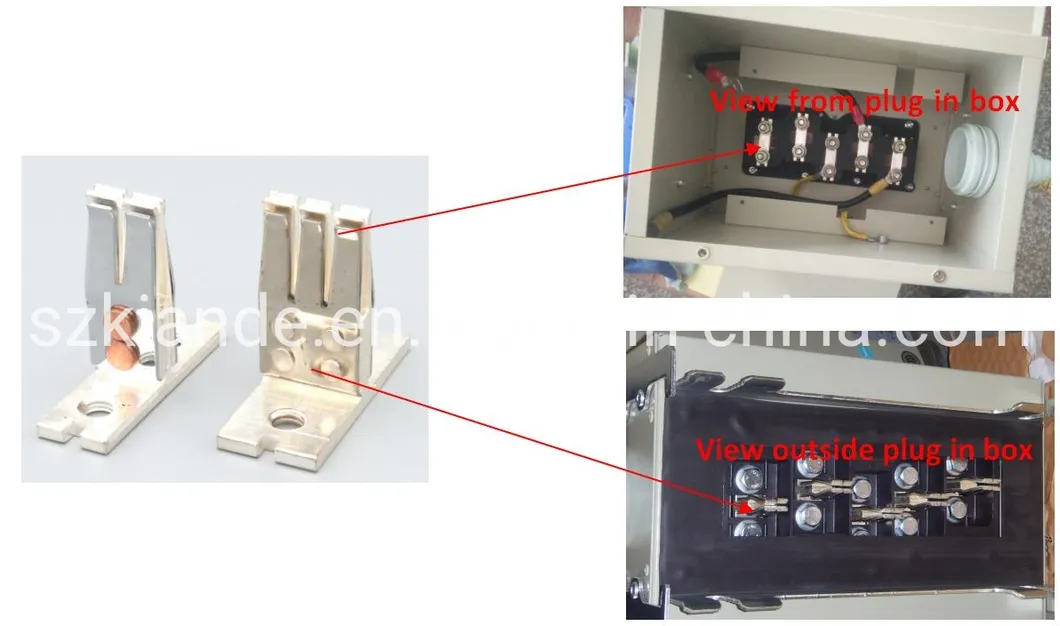

Automatic busbar assembly line / Sandwich busduct manufacturing line / Busway production line.

The automatic busbar assembly line is specially designed for busbar assembly and riveting procedures.

Main working procedures:

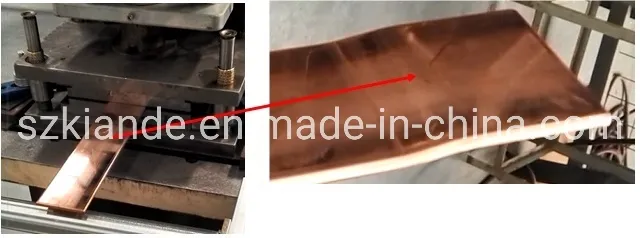

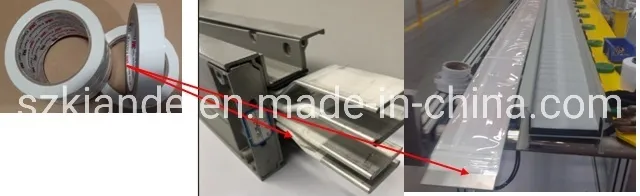

1. Pre-assembly: Bending the copper or aluminum bus bar and then installing into the profile.
2. Online assembly: Automatic clamping, riveting and moving.

Specification:

1. Suitable for straight compact busbar 630A~2500A, single layer, length 1.5~6m.
2. Automatic riveting: Two pieces or four pieces riveters depending on busbar type, riveting space adjustable between 150-220mm, anti-repeat riveting function.
3. Automatic end alignment, clamping and moving controlled by PLC.

Configurations:

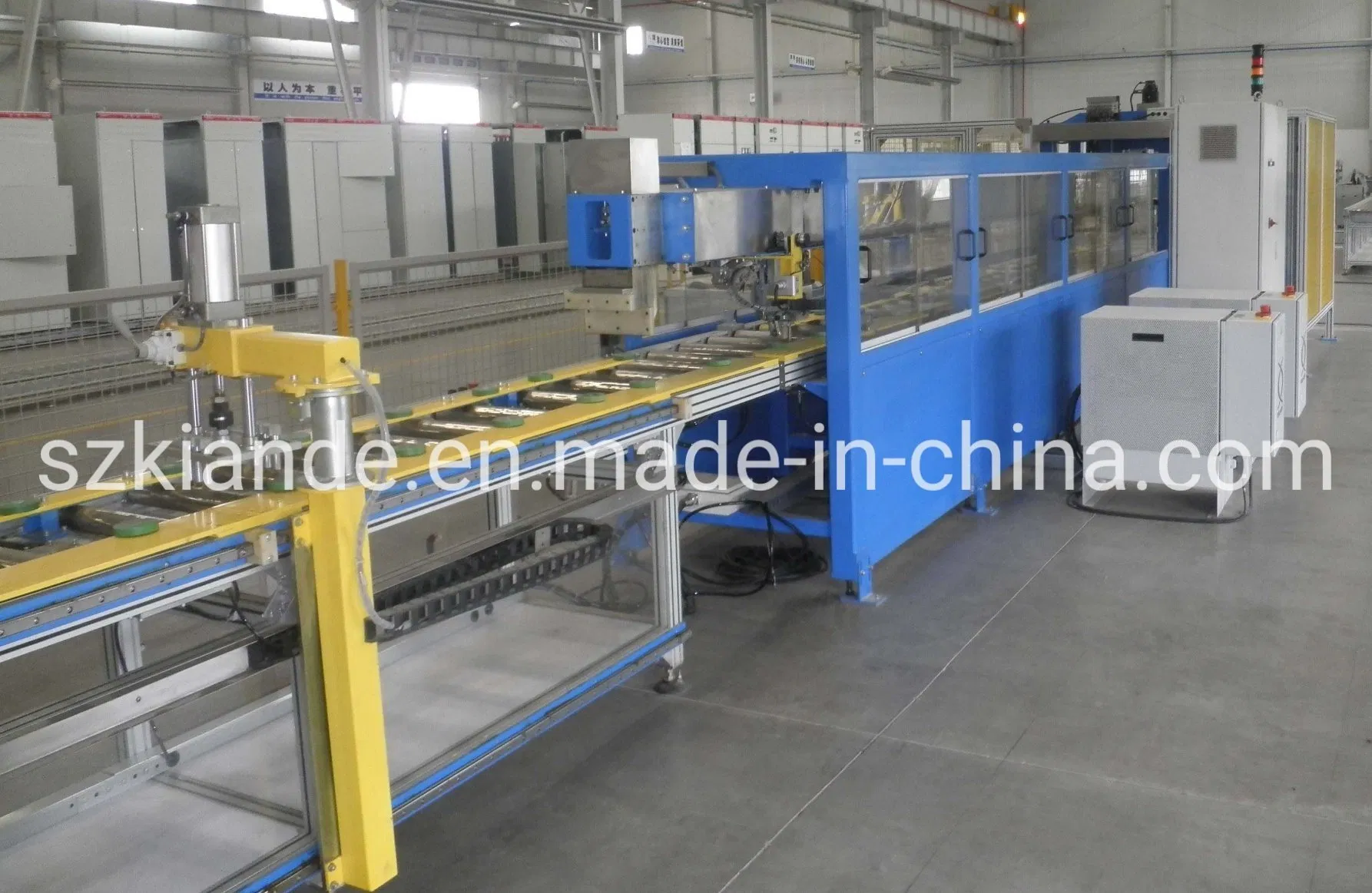

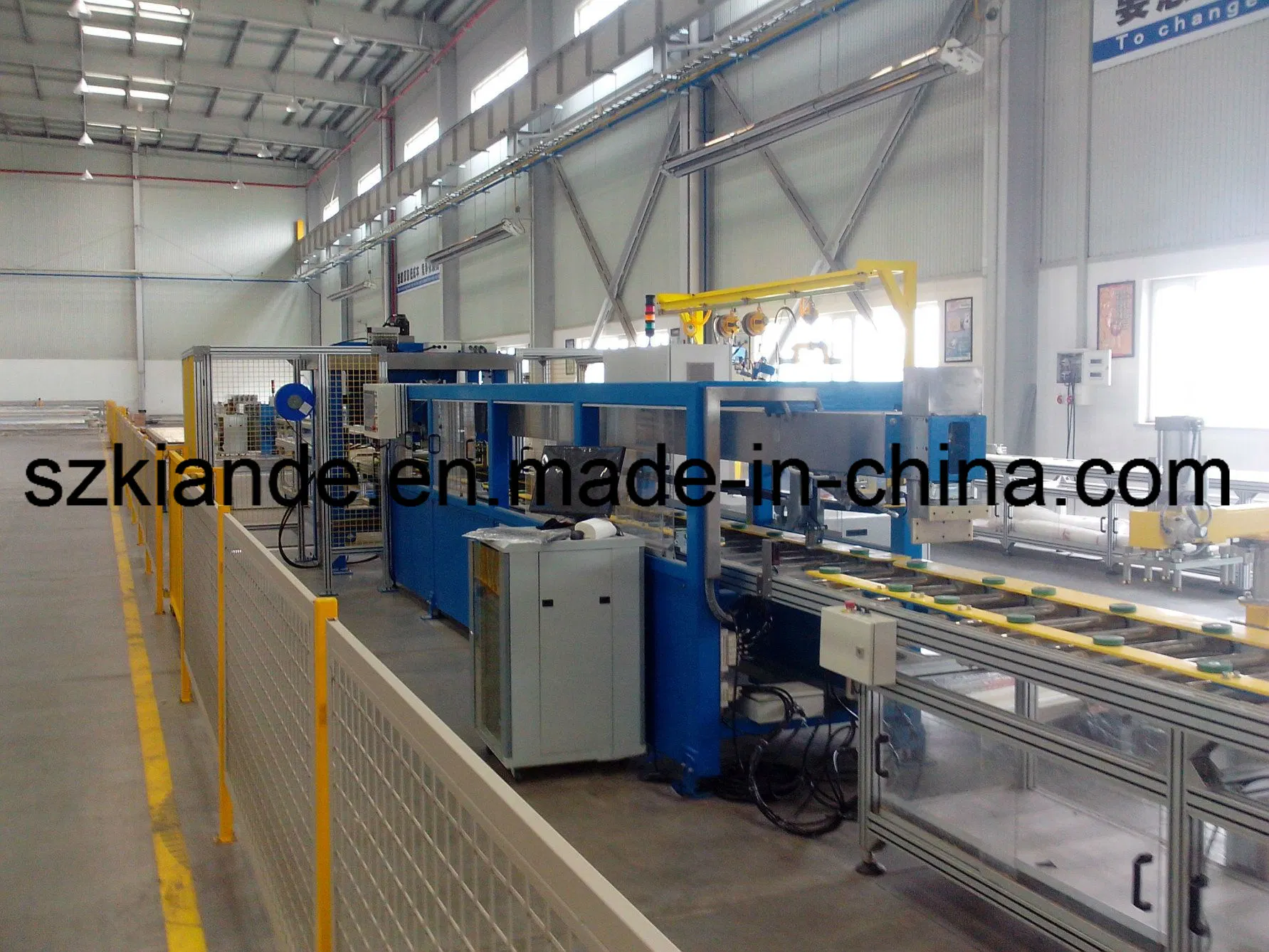

1. Length of the assembly line is 18m.

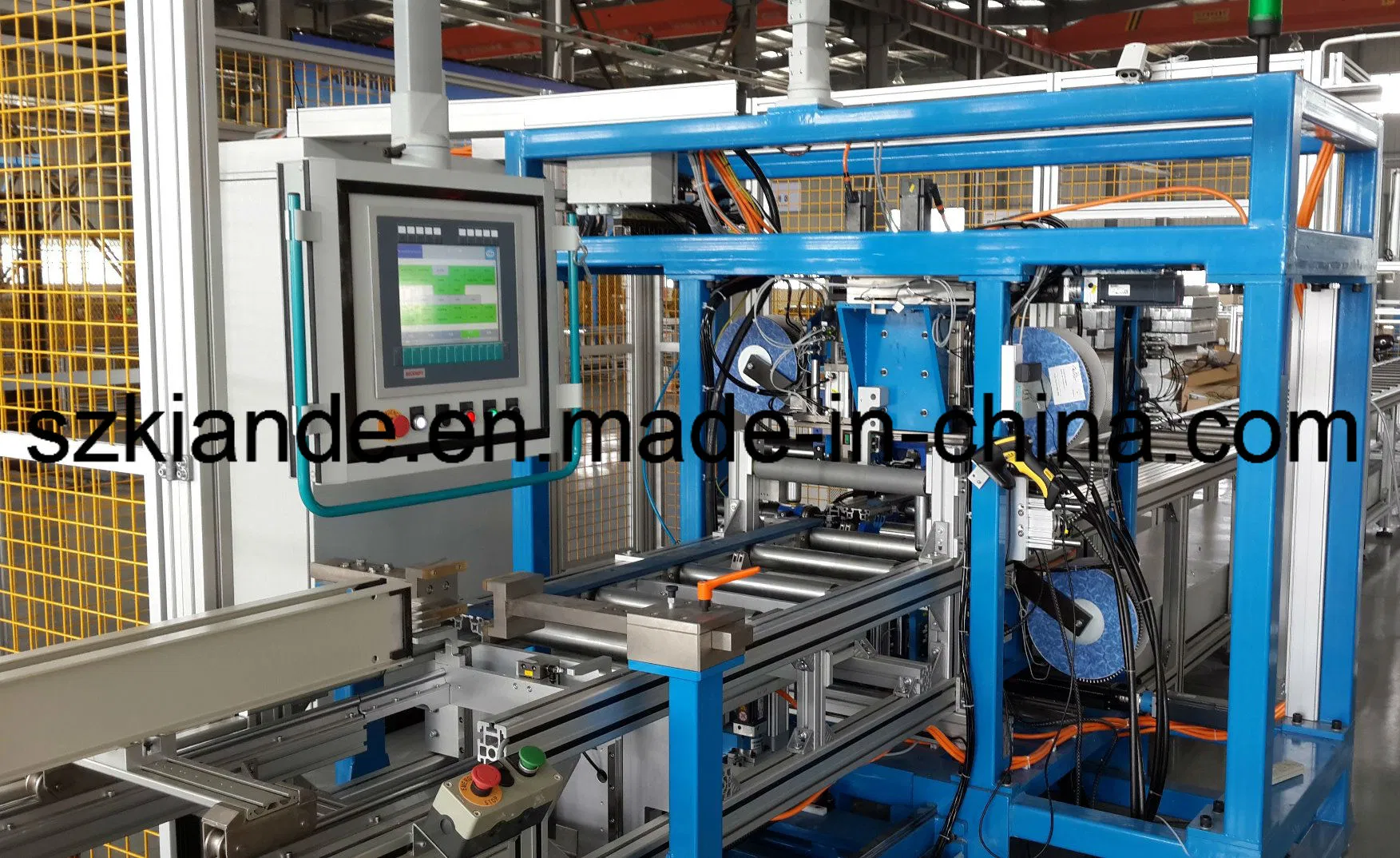

2. The 1st assembly station for pre-assembly, clamping and moving: L6*W0.7*H0.8m, frame of aluminum material, rollers for supporting and moving busbar; movable cantilevered clamping mechanism and end alignment mechanism.

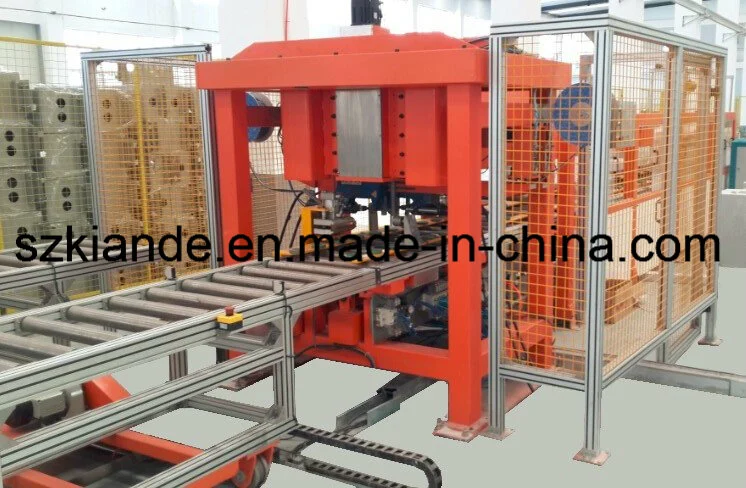

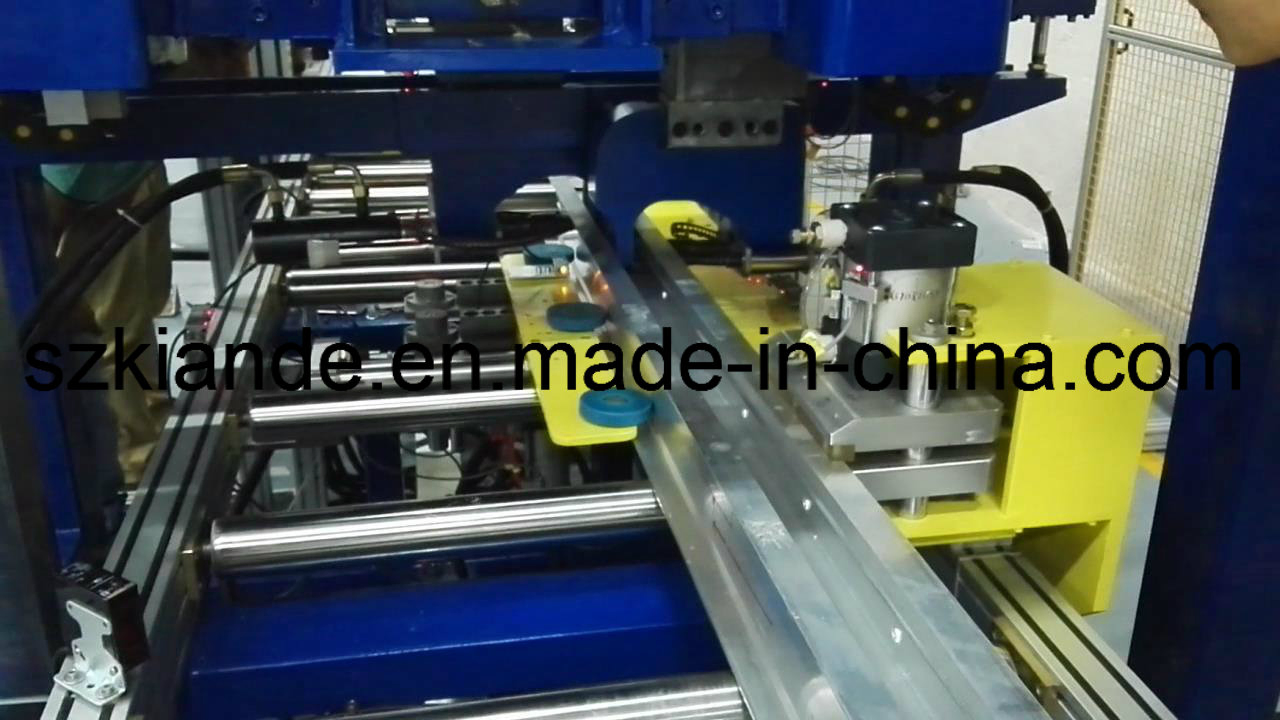

3. Riveting system: L6*W0.7*H0.8m, one set of safety fence, servo drive mechanism and pneumatic clamp mechanism, two sets of clamp device, two sets of servo drive mechanism to control the riveting gun up and down separately, two sets of servo drive mechanism to control the width move and length move separately, two sets of riveting machine withdraw device, one set of displacement detection, two sets of automatic riveting system.
4. The 2nd assembly station for moving: L6*W0.7*H0.8m, one set of roller transmission machine, one set of dynamic roller of transmission machine.

Features:

• Automatic production, less labour cost
• Improve working efficiency and product quality
• Alarm system
• Custom as busbar type
• Warranty and after-sales service available

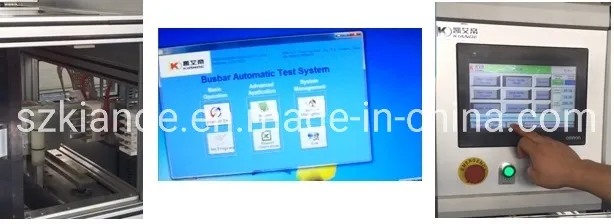

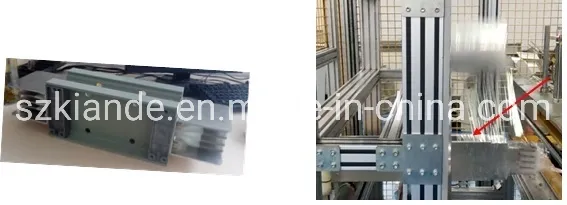

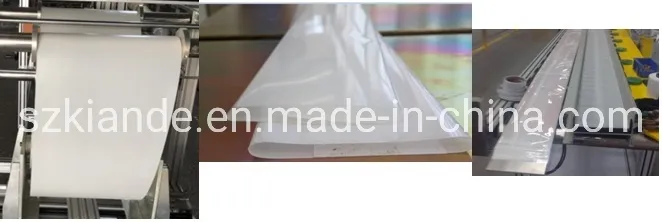

We are the company specialized in busbar machine. Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine.
